Lamina RGBW is a 24VDC flexible light sheet that can be cut in the field into geometric or irregular shapes, creating limitless illumination for signage, light panels, retail display, back lighting and themed lighting applications. Easy installation with no heat sink required. Standard 12" x 12" sheets make it easy to plan your layout and install (see specification sheet).

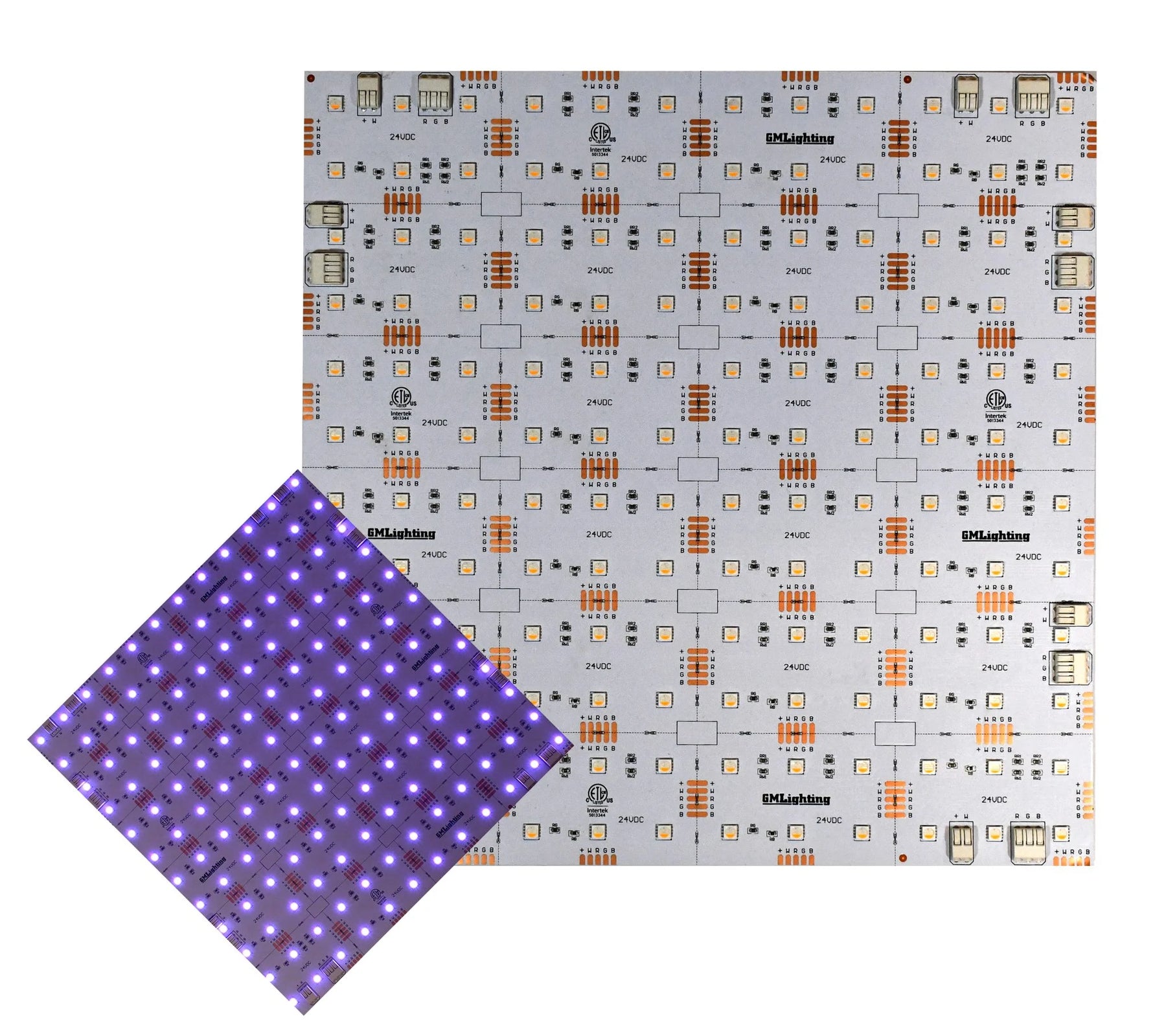

The GM Lighting S12X12-RGBW is a 12x12 inch (1 sq. ft.), 24VDC RGBW field-cuttable LED flexible light sheet designed for versatile indoor lighting applications. It features RGBW output with a 3000K white light delivering 420 lumens and a 90+ CRI, ensuring accurate, vibrant color rendering. The sheet is fully dimmable and connectible via integral push-in connectors, making it easy to expand your installation. Tight diode-to-diode spacing with 144 LEDs at 1" spacing using 5050 RGBW SMD technology eliminates hot spots for even, consistent illumination.

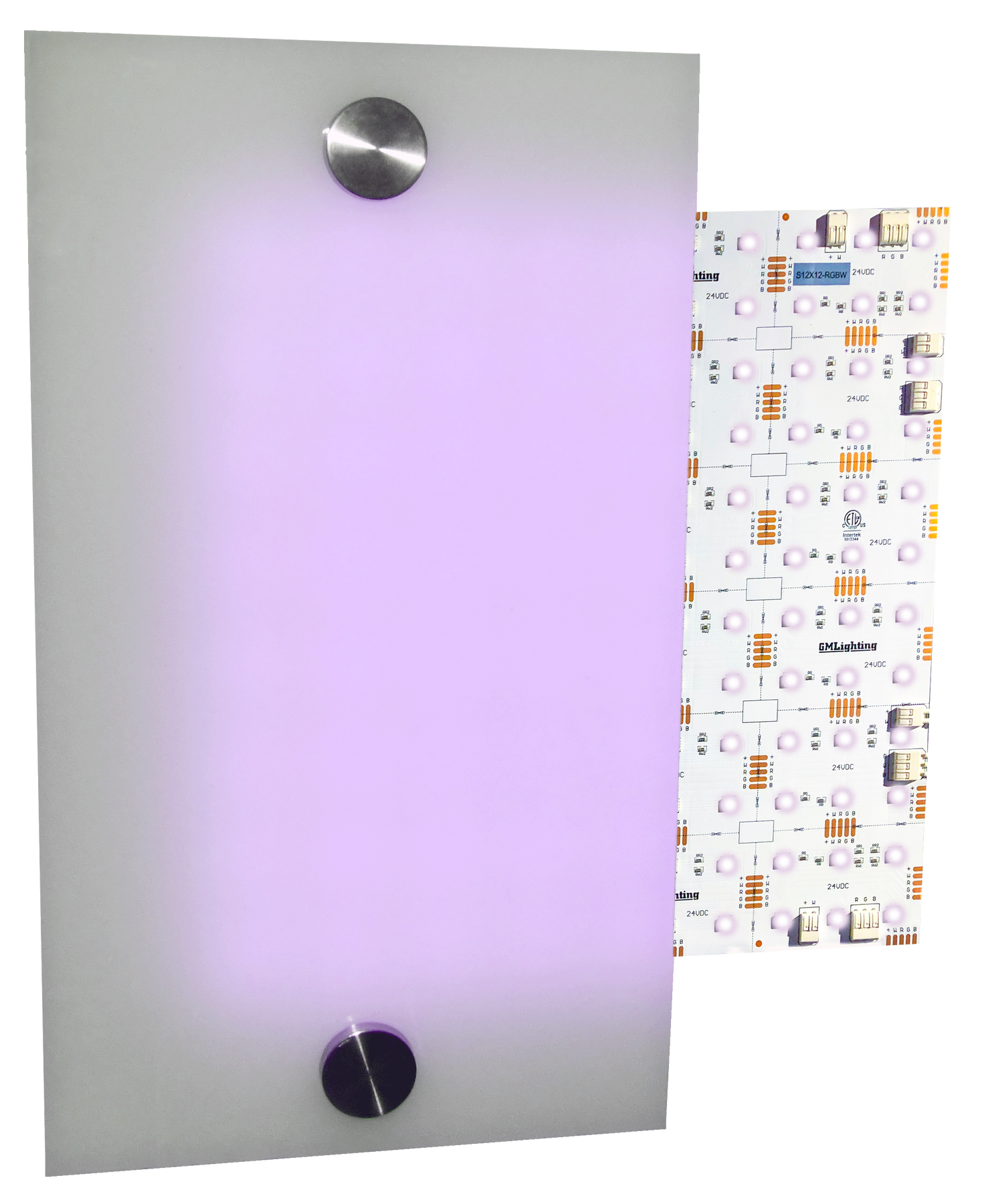

Installation is straightforward with included 3M double-sided tape, and staple or screw mounting options are also supported. An optional Invisible Stand-Off accessory raises translucent diffusion panels 0.91"–2.0" above the Lamina for even illumination on horizontal surfaces. The unit operates at 11.5W per sq. ft. on 24VDC, is rated IP20 for indoor use only, and has an operating temperature range of -4°F to 122°F. It is ETL listed and backed by a 5-year warranty.
Accessories are sold separately, including the Sheet-to-Sheet Wire Connector (S12X12-RGBW-SSC) and Stand-Off accessories in 13mm (GM-SOC-1) and 19mm (GM-SOC-2) diameters.
