Satco SKU: 65-943
  • DLC Premium Listed, IP65, Wet Location Rated
/
Color Temp
Finish Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

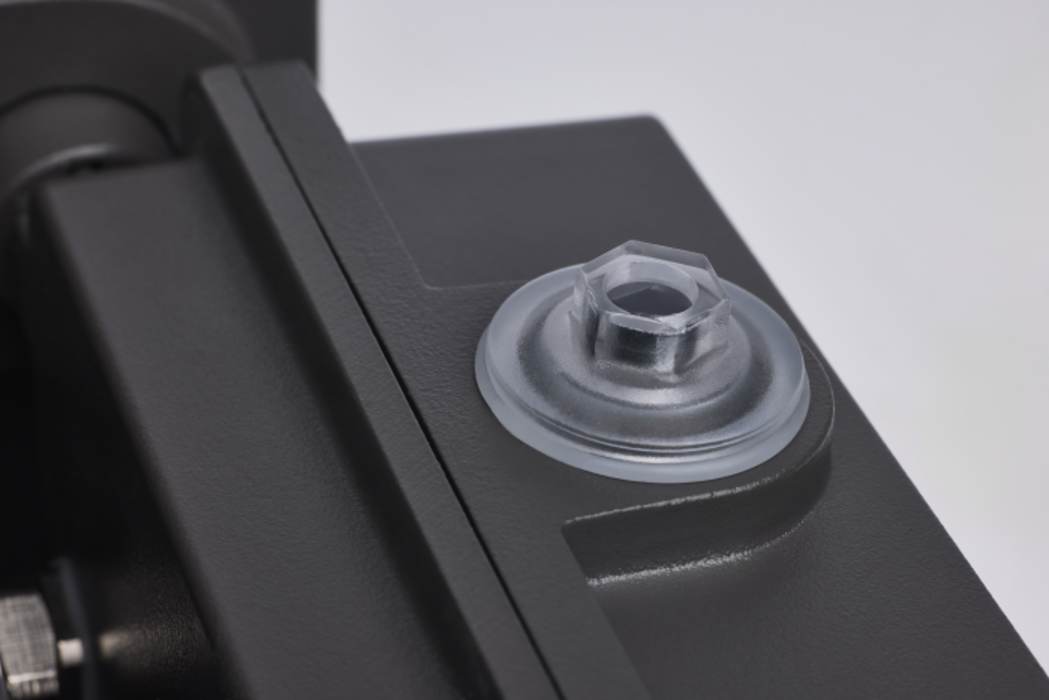

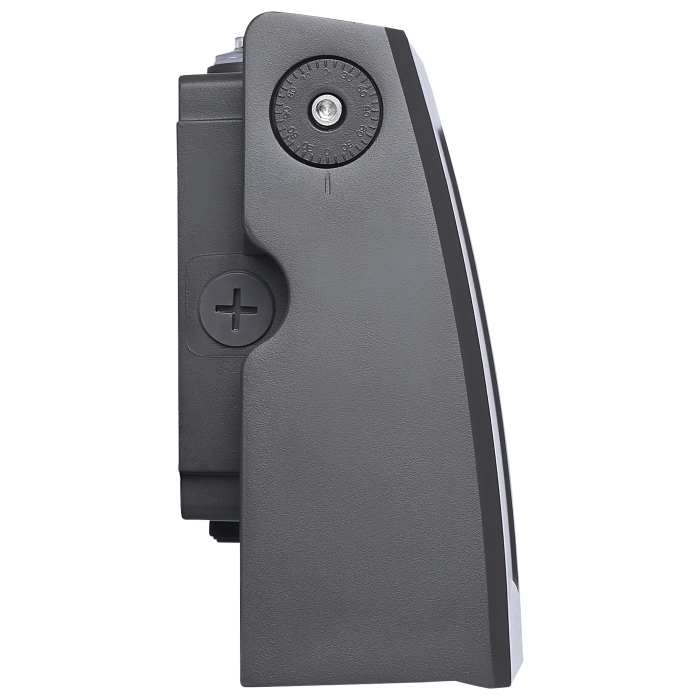

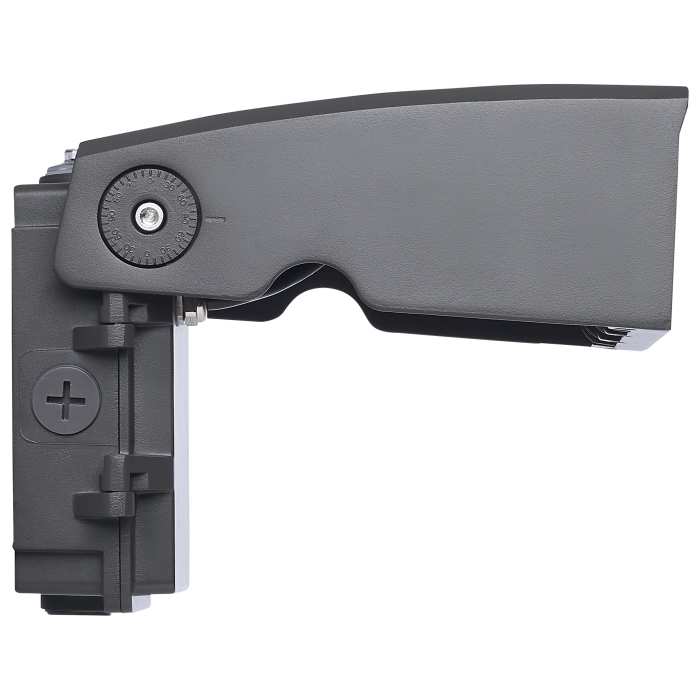

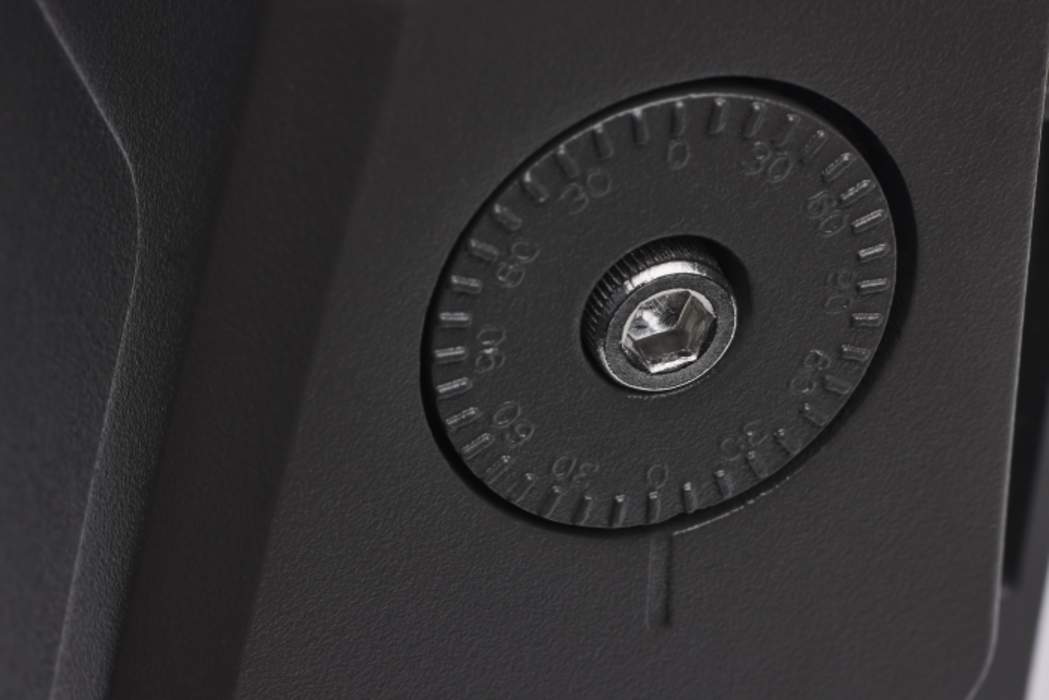

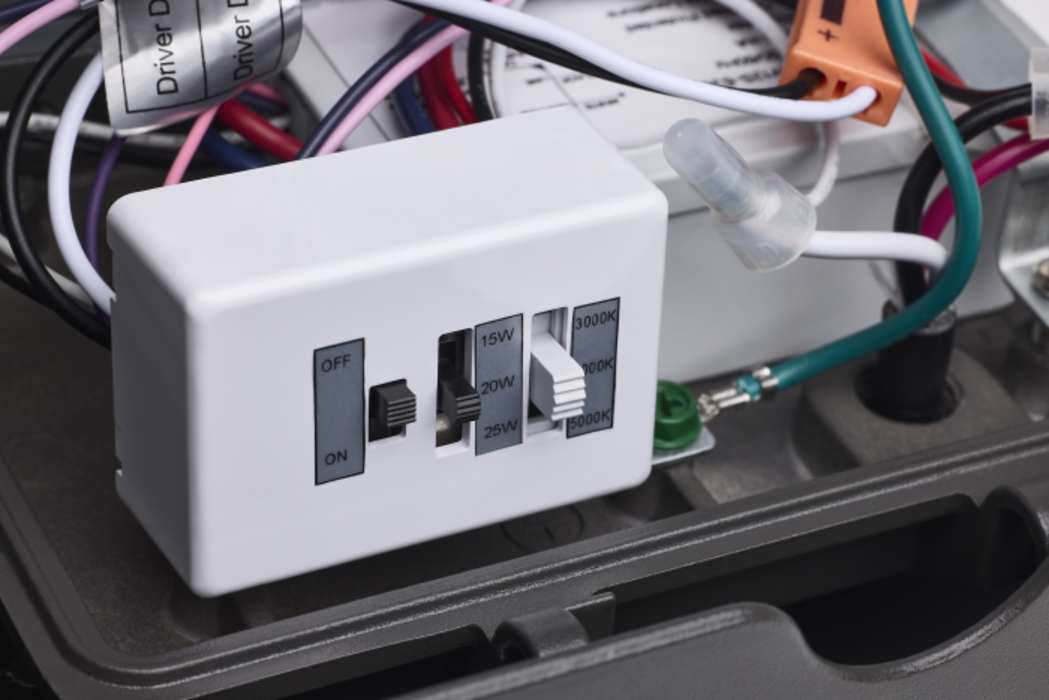

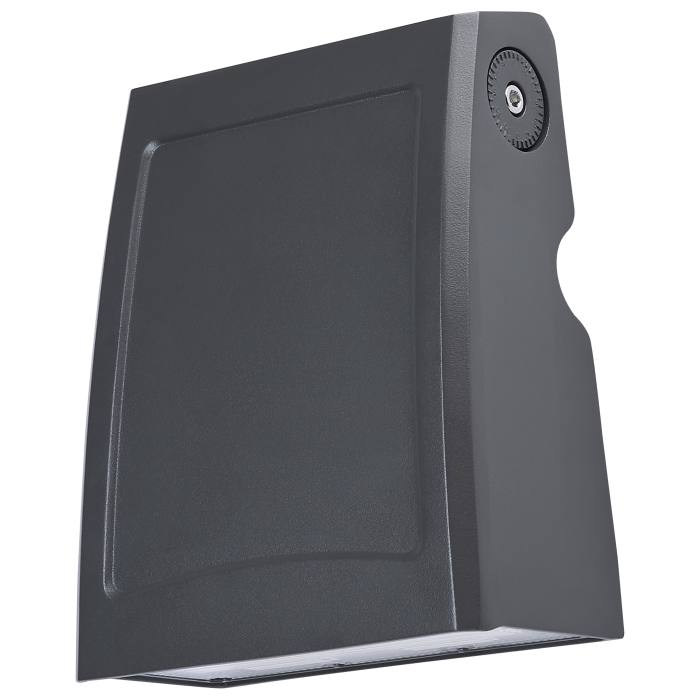

Engineered for directional performance and on-site flexibility, these LED Adjustable Wall Packs deliver targeted outdoor illumination with precisioncontrol. Offered in small and large configurations, each fixture features itsown dedicated wattage package and is field selectable—allowing you tochoose from three wattages and three color temperatures at installation tomatch your exact project requirements. The adjustable head rotates up to 90°, directing light exactly where it’s needed for enhanced coverage andimproved visibility. A built-in, bypassable photocell enables convenient duskto-dawn operation, while select dimmer compatibility supports additionalenergy management and customization. Constructed from durable die-castaluminum with a corrosion-resistant bronze finish and an impact-resistantpolycarbonate lens, these fixtures are built for long-term reliability indemanding environments.

The Satco 65-943 operates on 120–277V input and offers field-selectable output of 15, 20, or 25 watts with a maximum efficacy of up to 162 LPW and a peak lumen output of 3,669 lumens. Color temperature is selectable among 3000K, 4000K, and 5000K, with a CRI of 80+. The fixture is 0-10V dimmable down to 20% and includes a bypassable integrated photocell for dusk-to-dawn control. A 4kV surge protection rating safeguards the fixture against voltage transients in demanding electrical environments.

Built for tough outdoor conditions, the 65-943 carries a Wet location rating with an IP65 ingress protection rating and an IK08 impact resistance rating. The die-cast aluminum housing with bronze finish and impact-resistant polycarbonate lens are engineered for long-term durability across an ambient operating temperature range of -40°C (-40°F) to +40°C (+104°F). The wall-mount design delivers a 65°×95° beam spread, and the adjustable optical design minimizes glare and light trespass. It is rated for 50,000 hours of functional life and backed by a 5-year warranty.

The 65-943 is a direct replacement for 70W–100W HID fixtures, making it an efficient upgrade for existing installations. It is UL Listed, RoHS compliant, and DLC Premium Listed, qualifying it for utility rebate programs.

Specifications
Manufacturer Satco
MPN 65-943
SKU 65-943
UPC 045923410291
DLC Product ID S-3RBQDR
Lighting Technology LED
Wattage 15/20/25 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000K/4000K/5000K
Lumens 2,193-3,669 Lumens
Dimmable Yes, 0-10V
Beam Angle 65°x95°
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Finish Color Bronze
Power Factor >0.9
Housing Die-Cast Aluminum
Lens Impact Resistant Polycarbonate
Lens Finish Opaque
Operating Temperature -40F to +104F (-40C to +40C)

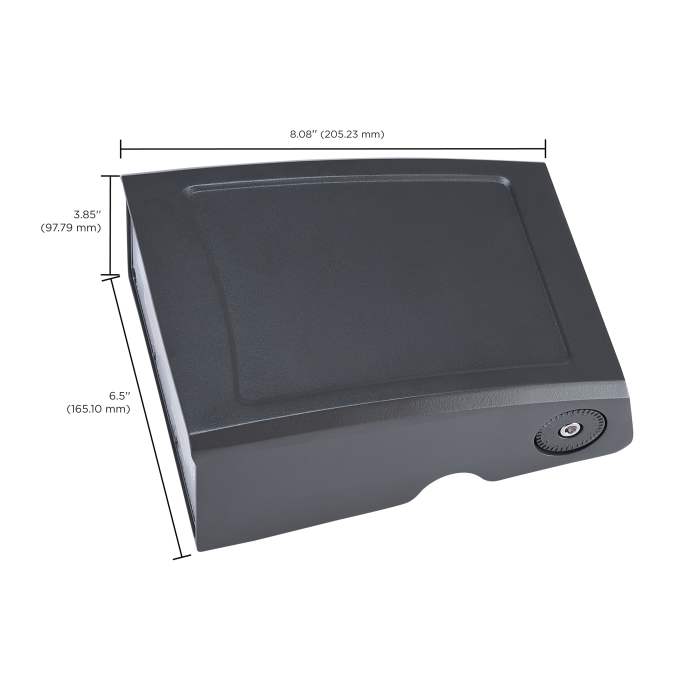

Dimensions 6.50” W x 3.84” H x 8.08” D
Environment Wet Location
Certifications FCC, IP65, DLC Premium Listed, RoHS, UL Listed
Warranty 5 Years
