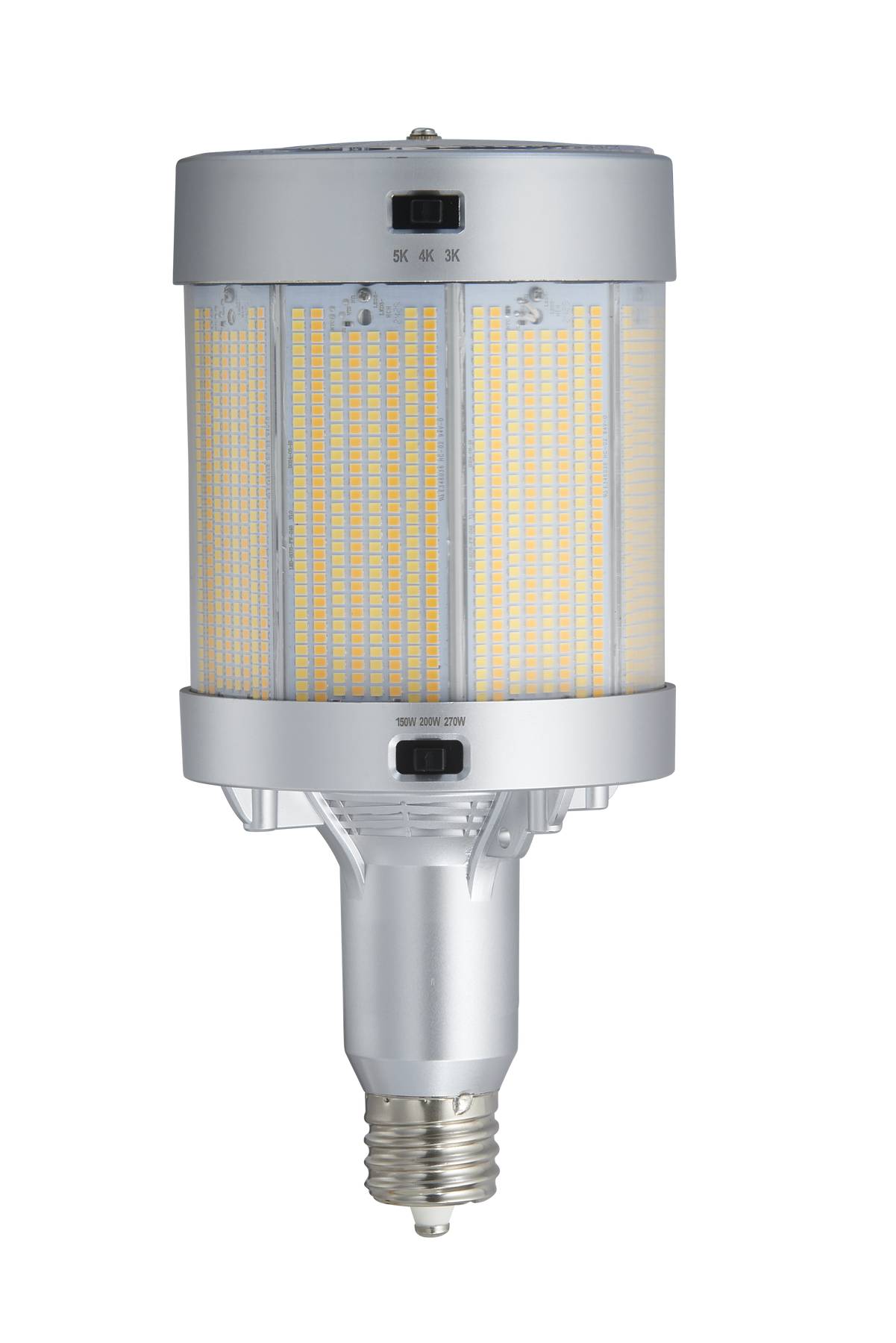

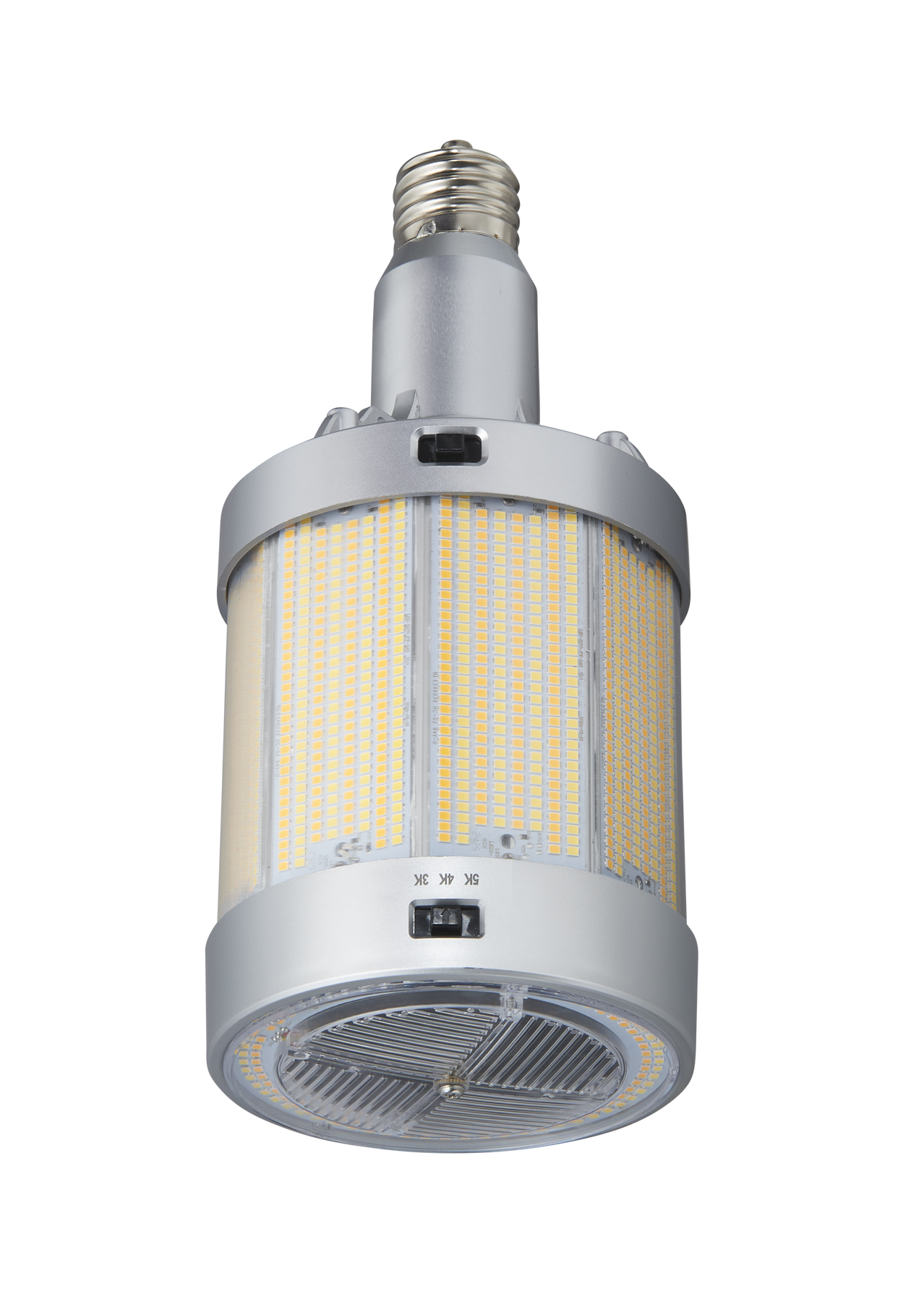

The Light Efficient Design LED-8075M345-FW-HV is a high-powered LED post top corn cob bulb engineered for demanding commercial and outdoor applications. Offering selectable wattages of 150, 200, and 270 Watt paired with selectable color temperatures of 3000K, 4000K, and 5000K, this single lamp replaces up to 750W HID fixtures while delivering 21,700–39,000 lumens of crisp, efficient light. A built-in dims-to-cool feature automatically reduces output to extend lamp life, and a new inline fuse adds an extra layer of protection against electrical surges — backed by 6kA surge protection and a 50,000-hour rated lifespan.
Designed for straightforward retrofitting, the LED-8075M345-FW-HV features a longer neck for a better fit within existing fixtures and operates on ballast bypass wiring across a wide 277-480V input range. The EX39 mogul base installs directly into standard post top and area light housings, and the lamp is rated for damp locations and enclosed fixtures. With an operating temperature range of -40°F to 122°F, 80 CRI, and full dimmability, it performs reliably across a broad range of environments — from parking lots and streetscapes to industrial yards and hospitality exteriors.
The default factory setting ships at 200W / 4000K, and users can switch between all three wattages and color temperatures in the field without tools. Certified DLC, FCC, RoHS, and cULus, and backed by a 5-year warranty, the LED-8075M345-FW-HV delivers long-term value and compliance confidence for any large-scale LED retrofit project.
- Multi-directional mounting capability & 360° design — use base down, base up, or base sideways without affecting performance
- Pretested & potted drivers are burnt in 3x prior to shipping and protected against vibration & moisture
- Field adjustable light output via physical switch on the product
Please NOTE: When retrofitting LED to an HID fixture, the ballast must be by-passed or removed from the fixture.
