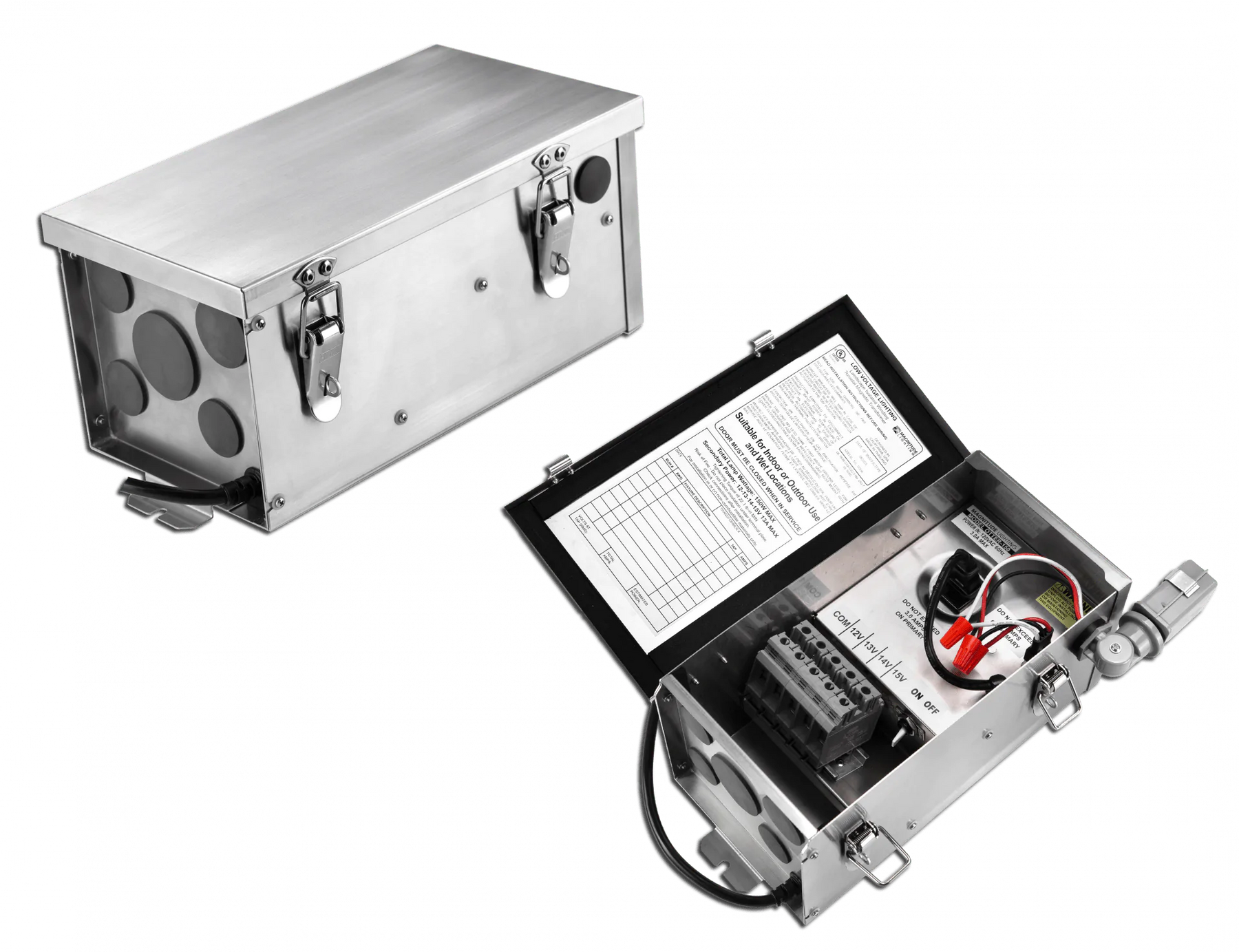

Magnitude Otter™ is a high-performance landscape transformer series for commercial and residential lighting applications. Compact and waterproof, the Magnitude Otter™ hides easily and is engineered with features that reduce time, labor and profit-draining callbacks. This transformer saves on installation time with pre-punches knockouts with replaceable rubber cover and large wire connection lugs that are tilted for easy access.
The Otter™ OTR150L-LS is made of 20 gauge 304 stainless-steel housing with stainless-steel fasteners and has pre-punched knockouts that measure at 3/4", 1" and 2" diameter. This transformer has 150 watts with a input voltage of 120V. This transformer dimensions are 11.46" height x 6.132" width x 5.69" depth with a lifetime warranty.

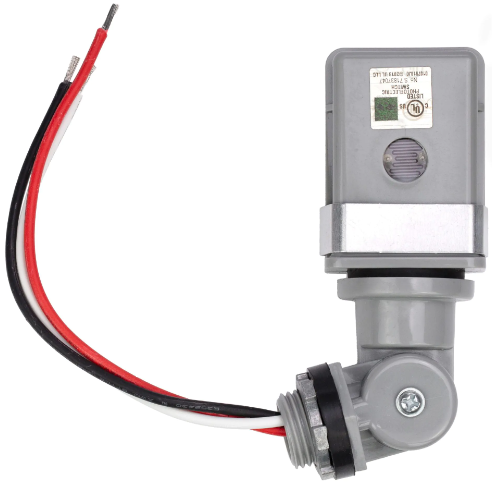

The light sensor provides a 30 second time delay to prevent accidental shutoff and a plug-in wiring hardware is included. The temperature compensation system provides consistent performance regardless of the weather.
| Input Voltage | 120 Volt |
| Output Voltage | 12/13/14/15 VAC Nominal |
| Wattage | 150 Watt |
| 12V Tap (typ.) @ Max Load | 150W Max (11.22VAC, 13.44A) |
| 13V Tap (typ.) @ Max Load | 150W Max (11.85VAC, 12.71A) |
| 14V Tap (typ.) @ Max Load | 150W Max (12.87VAC, 11.67A) |
| 15V Tap (typ.) @ Max Load | 150W Max (13.84VAC, 10.97A) |
| Dimensions | 11.46" H x 6.132" W x 5.69" D |
| Certifications | UL746C, IP65 Rated |
| Warranty | Lifetime Warranty |
