Metal Halide Ballast Cross Reference:
Advance Ballast 71A6772-001D
Sylvania Ballast M1500/MULTI-KIT
Venture V90D6612K
Sola E-MCA00W1500
Grainger 6V626

High Intensity Discharge (HID) lamps require a ballast to apply starting voltage to the lamp and establish current flow an arc between the lamp electrodes. Without a ballast, the arc will extinguish or draw increasing current until some circuit element burns up. Ballasts provide system stability by limiting the current that can be drawn.

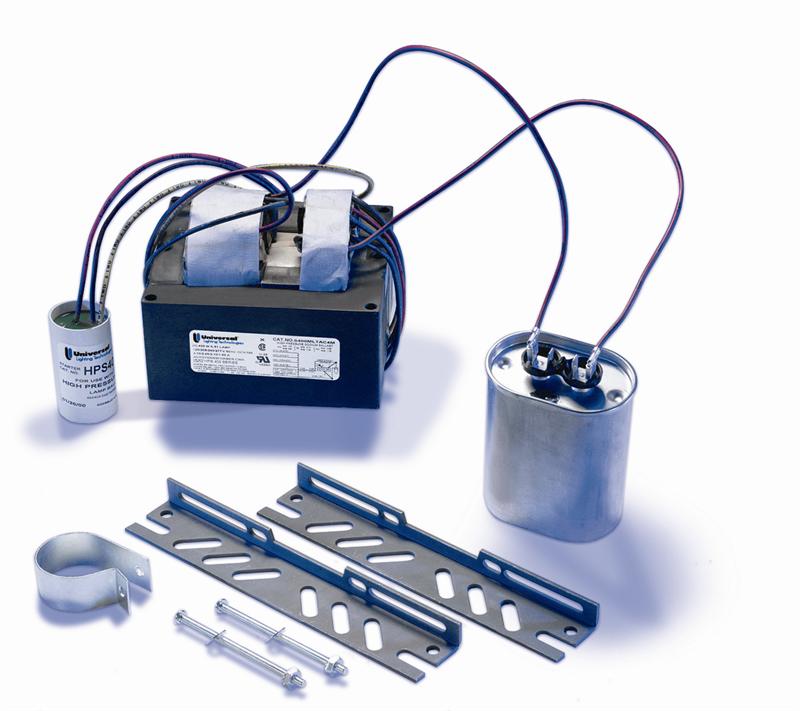

Core and Coil metal halide HID ballasts are used in over 90% of all HID lighting. Replacement ballast kits contain the appropriate core and coil, a properly rated capacitor and all components required for ballast replacement. The Universal Ballast, core and coil, HID ballast kit is ideal for a wide variety of lighting applications, including factories, warehouses, gymnasiums and retail stores.

Universal Ballast M1500MLTAC5M500K, 1500 watt ballast transformer, Quad Tap (or Multi Tap), Replacement metal halide ballasts for 1500W Metal Halide, Core And Coil, Circuit Type CWA, Metal Halide Lamp Type, 1500 Lamp Watts, M48 ANSI Ballast Type, 1610 Input Watts, 120/208/240/277 Input Voltage, 60 Hz.

Specification Sheet
