165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K

Westgate SKU: LLHC-165-220W-MCTP
Westgate 165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K
Westgate 165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K
Westgate 165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K
Westgate 165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K
Westgate 165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K
Westgate 165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K

165/190/220 Watt Builder Series Compact LED Linear High Bay 3000/3500/4000/5000K

Westgate SKU: LLHC-165-220W-MCTP
Regular price $196.78
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

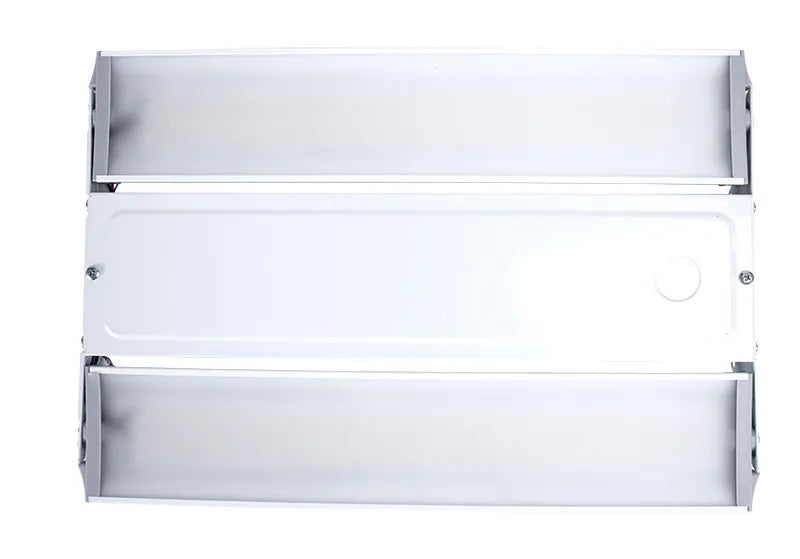

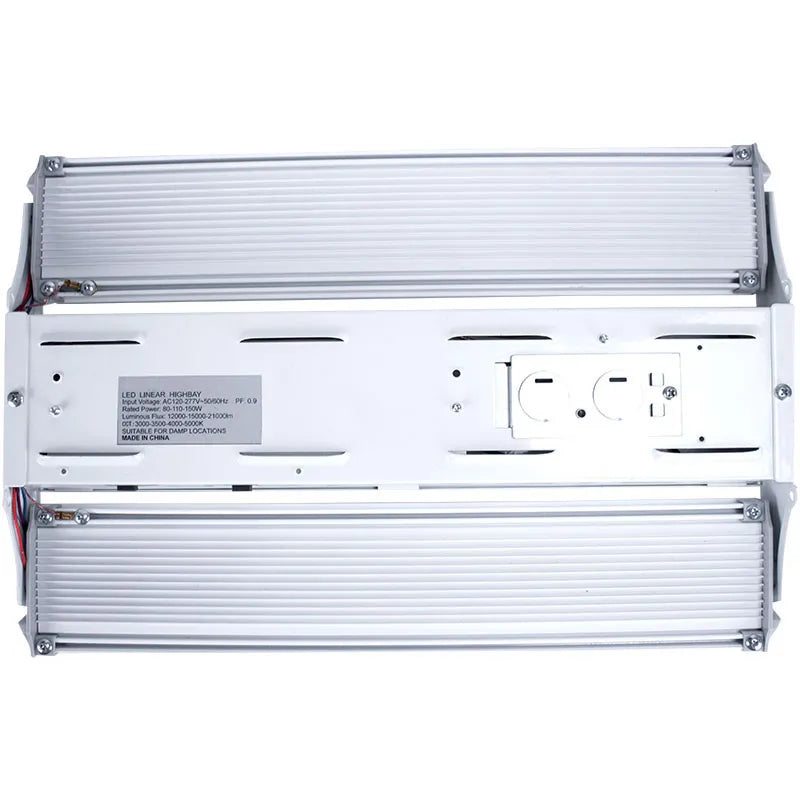

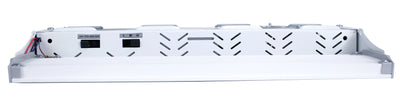

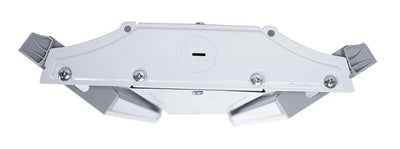

Here is the Linear High Bay Light Fixture from Westgate's LLHC Series. With 165/190/220 watts of power and generating 24,750/25,650/33,000 lumens, this fixture offers efficient lighting at 150 lumens per watt. This linear high bay produces 4 color temperatures, 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. The selectable switch for both wattage and color temperature is located on the driver. This fixture offers a 5 year warranty and is rated for 50,000 hours.

Ideal for replacement of conventional lighting systems such as HID and fluorescent. Applications include manufacturing warehousing and other large indoor spaces with mounting heights from 10 foot to 4 foot, the fixture can be surface mounted also.

Manufacturer Westgate
MPN LLHC-165-220W-MCTP
SKU LLHC-165-220W-MCTP
UPC 845060017595
Lighting Technology LED
Wattage 165/190/220 Watt
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 3000/3500/4000/5000K
Lumens 24,750/25,650/33,000 Lumens
Efficiency (Lumens Per Watt) 150 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.95
Housing Steel
Lens Polycarbonate
Operating Temperature -40°F to 131°F
Dimensions 10" H x 23" W x 1-8/9" D
Environment Damp Location
Warranty 5 Year Standard
