17 Watt 22.5 Inch LED 120-277V PLL Lamp Ballast Bypass

Green Creative SKU: 36983
Green Creative 17 Watt 22.5 Inch LED 120-277V PLL Lamp Ballast Bypass

17 Watt 22.5 Inch LED 120-277V PLL Lamp Ballast Bypass

Green Creative SKU: 36983
  • Enclosed Fixture Rated
Regular price $23.81
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Green Creative is introducing a ballast bypass line of LED PLL replacement lamps, in all different sizes! These LED PLLs have a 2G11 (4-Pin) Base and are perfect to replace your CFL PL-L light bulbs. They come in four different sizes and two different color temperatures. Green Creative's 2G11 LED tube lights instantly turn on to full brightness with no flickering like a CFL would. The opaque glass eliminates pixilation and reduces glare while the plastic film prevents the glass from shattering. Remember - your fluorescent ballast must by bypassed to use these LED bulbs as they run on direct wire 120-277V line voltage.

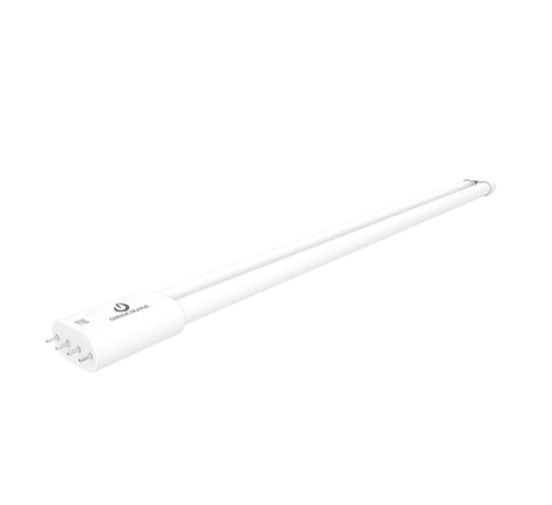

The Green Creative 17PLL/8(XX)/BYP/R 2G11 LED/CFL Replacement Lamp boasts a twin T5 tube with a 2G11 base comprised of four pins arranged in a single line. Enjoy 40% savings with its 17 watt consumption, substituting for an 40 watt fluorescent lamp. Suitable for indoor lighting and damp areas, this ballast bypass-only model is enclosed-rated and features a 50,000 hour lifespan and 5 year limited warranty. Make your wallet and the environment happy!

With a frost finish, these lamps measure 16.4 inches (MOL) and are wired directly with the universal 120-277V line voltage. An emergency inverter is available and is sold separately.


Manufacturer Green Creative
Color Temperature (Kelvin) 3000K Warm White 3500K Bright White 4000K Cool White
MPN 17PLL/830/BYP/R 17PLL/835/BYP/R 17PLL/840/BYP/R
SKU 36983 36984 36985
UPC 790492369838 790492369845 790492369852
Lumens 2,050 Lumens 2,150 Lumens 2,200 Lumens
Efficiency (Lumens Per Watt) 121 LPW 126 LPW 129 LPW
Lighting Technology LED
Wattage 17 Watt
Beam Spread 160 Degrees
Voltage 120-277V
Ballast Operation Type B Ballast Bypass
Bulb Shape PLL
Base 4-pin 2G11
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82
Power Factor 0.9
Lens Frosted
Fluorescent Equivalent 40 Watt
Operating Temperature -4° F to 113° F
Dimensions 22-1/2" MOL x 1-11/16" W
Certifications FCC Compliant, cULus Listed
Environment Damp Location
Warranty 5 Year Limited
