1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K

Satco SKU: 65-1300
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K
Satco 1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K

1x4 20/30/40 Watt Selectable Center Basket Troffer Retrofit Door Kit 3500/4000/5000K

Satco SKU: 65-1300
  • Damp Location Rated, DLC Listed
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

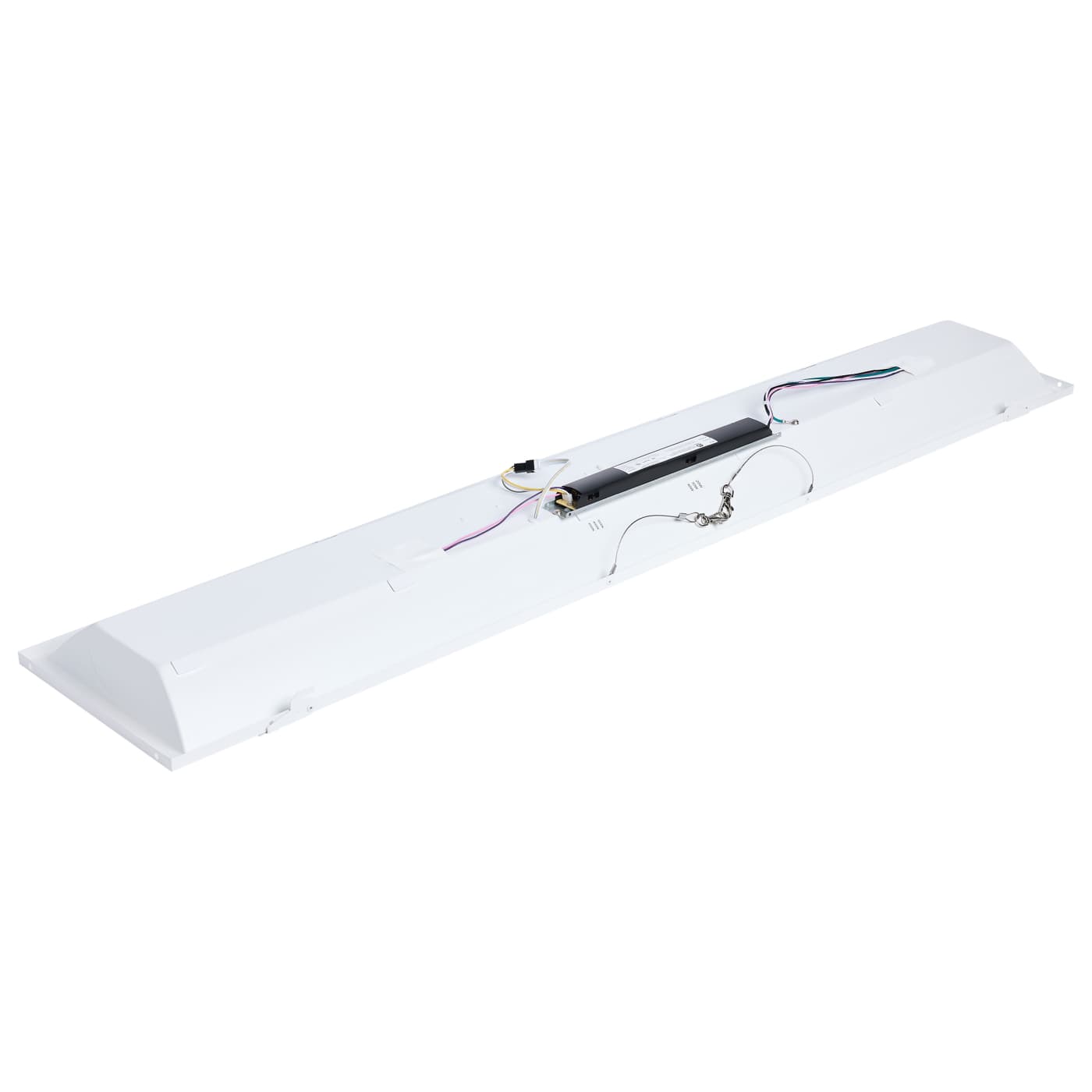

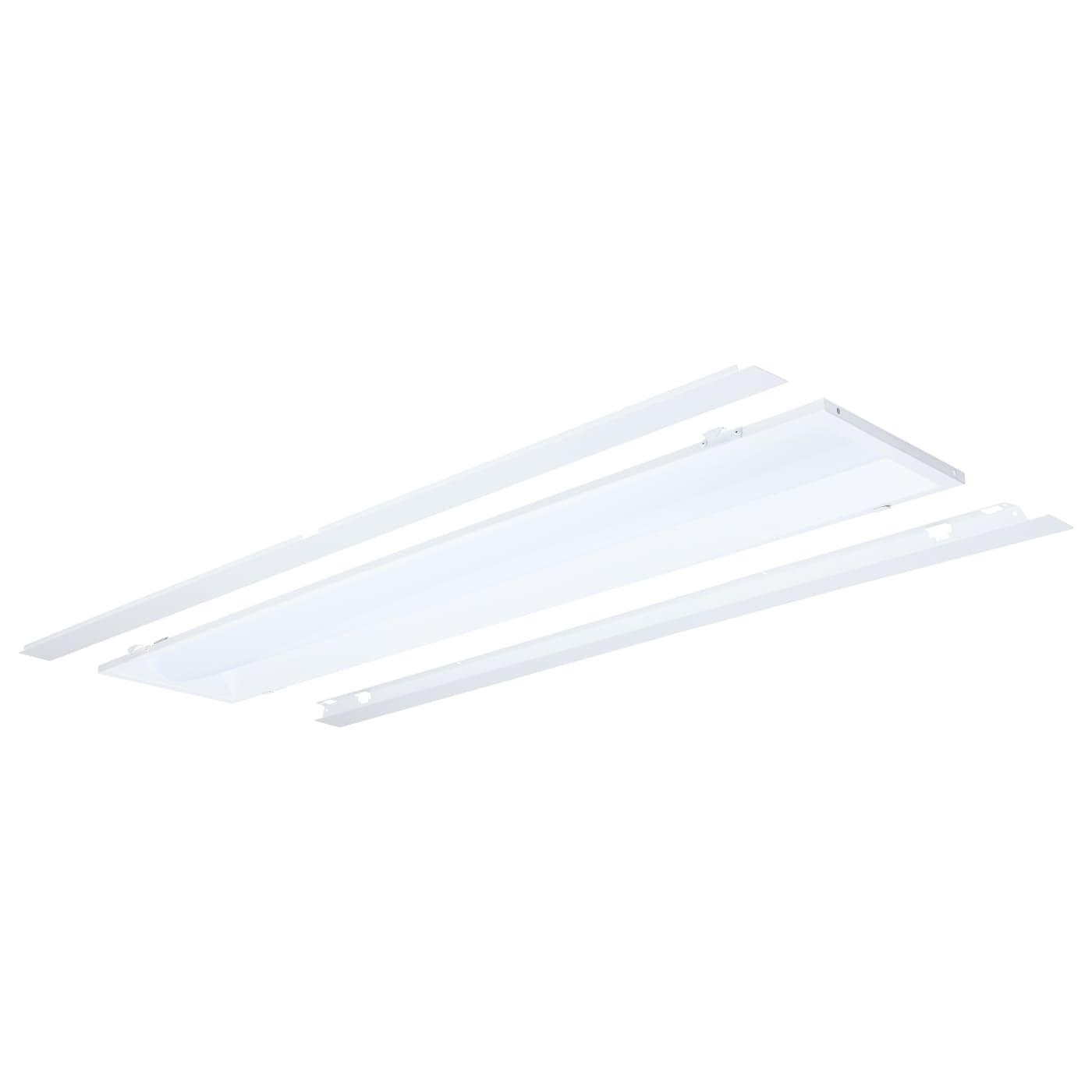

SATCO|NUVO’s Center Basket Troffer Retrofit Door Kits, available in 1'x4', 2'x2', and 2'x4' configurations, are designed to retrofit into existing troffer housings to upgrade legacy fluorescent fixtures with modern LED performance. By utilizing the original fixture body, these retrofit kits reduce installation time while eliminating the need to remove and discard the existing housing. Each fixture features selectable wattage and CCT, allowing installers to tailor light output and color temperature on site. Operating on 120–277V with 0–10V dimming, they deliver efficient illumination with efficacy up to 125 lumens per watt. An integrated safety tether supports the door assembly during installation, simplifying wiring and setup.

The SATCO|NUVO 1’X4’ troffer retrofit (65-1300) has 20/30/40 Selectable Watts providing 2500/3750/5000 Lumens of 120-277V light.  Durable steel construction and a polycarbonate lens ensure dependable performance backed by a 50,000-hour rated life and 5-year warranty.

Specifications
Manufacturer Satco
MPN 65-1300
SKU 65-1300
UPC 045923411359
Lighting Technology LED
Wattage 20/30/40 Watt
Voltage 120-277V
Color Temperature (Kelvin) 3500/4000/5000K
Lumens 2500/3750/5000 Lumens
Efficiency (Lumens Per Watt) 125 LPW
Frequency 50/60Hz
Dimmable Yes, 0-10 Dimmable
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Finish White
Housing Steel
Lens Frosted Ploycarbonate
Fluorescent Equivalent 2 x 32W T8
Operating Temperature -20C (-4F) to +40C (+104F)
Dimensions 49.33 L x 11.34" W x 3.15" H
Certifications FCC, RoHS, DLC
Environment Damp Location Rated
Warranty 5 Year Warranty
Documents

Satco Center Basket Troffer Retrofit Door Kit Specification Sheet

Satco Center Basket Troffer Retrofit Door Kit Installation Instructions
