2 Foot 9/14/22 Watt Selectable Low Profile Series B LED Wrap Fixture 3500K/4000K/5000K

Keystone Technologies SKU: KT-WLED22PS-2B-8CSA-VDIM
Keystone Technologies 2 Foot 9/14/22 Watt Selectable Low Profile Series B LED Wrap Fixture 3500K/4000K/5000K
Keystone Technologies 2 Foot 9/14/22 Watt Selectable Low Profile Series B LED Wrap Fixture 3500K/4000K/5000K Selectable White
Keystone Technologies 2 Foot 9/14/22 Watt Selectable Low Profile Series B LED Wrap Fixture 3500K/4000K/5000K
Keystone Technologies 2 Foot 9/14/22 Watt Selectable Low Profile Series B LED Wrap Fixture 3500K/4000K/5000K Selectable White

2 Foot 9/14/22 Watt Selectable Low Profile Series B LED Wrap Fixture 3500K/4000K/5000K

Keystone Technologies SKU: KT-WLED22PS-2B-8CSA-VDIM
  • DLC Listed
/
Color Temp
Finish Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

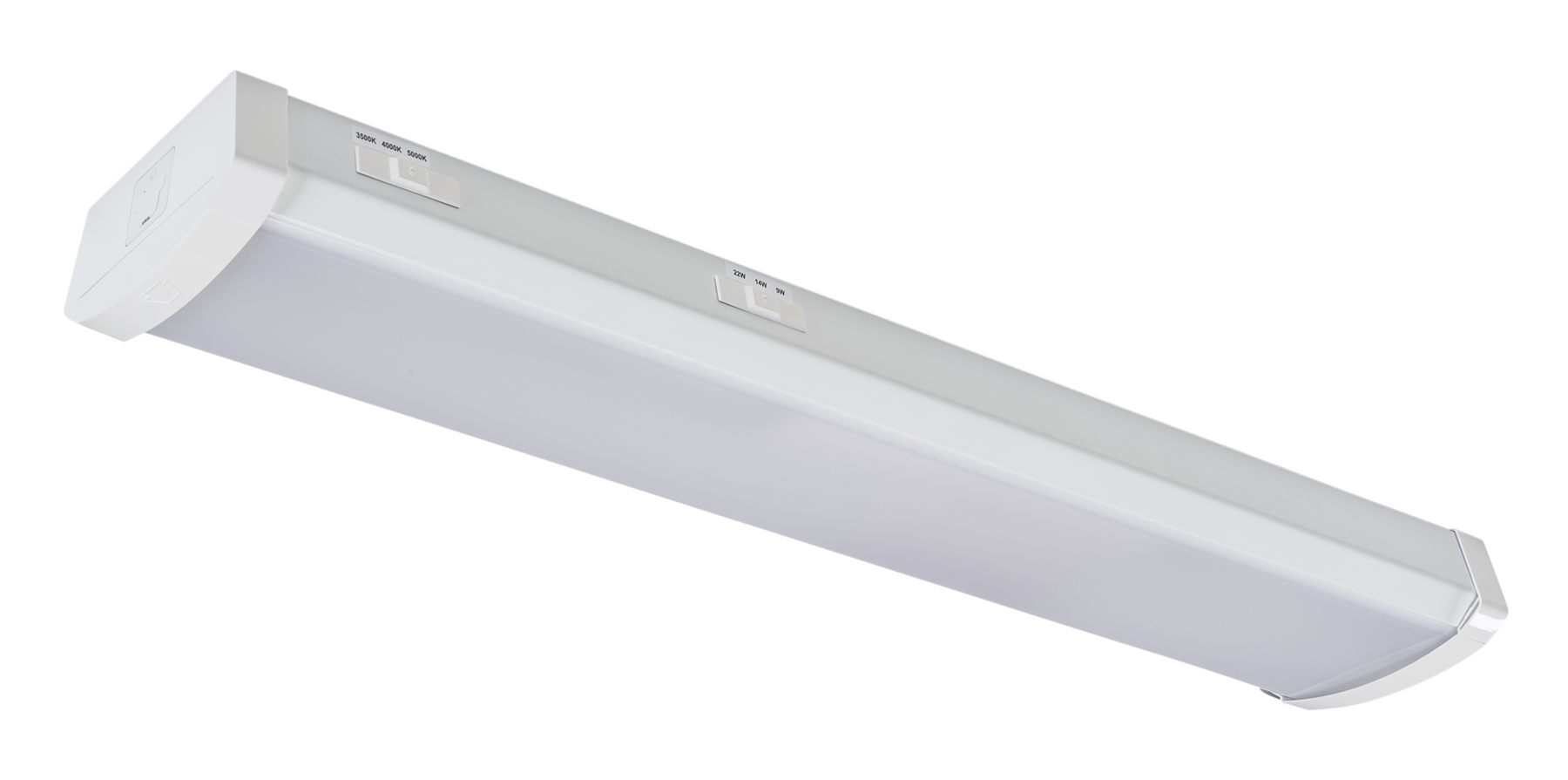

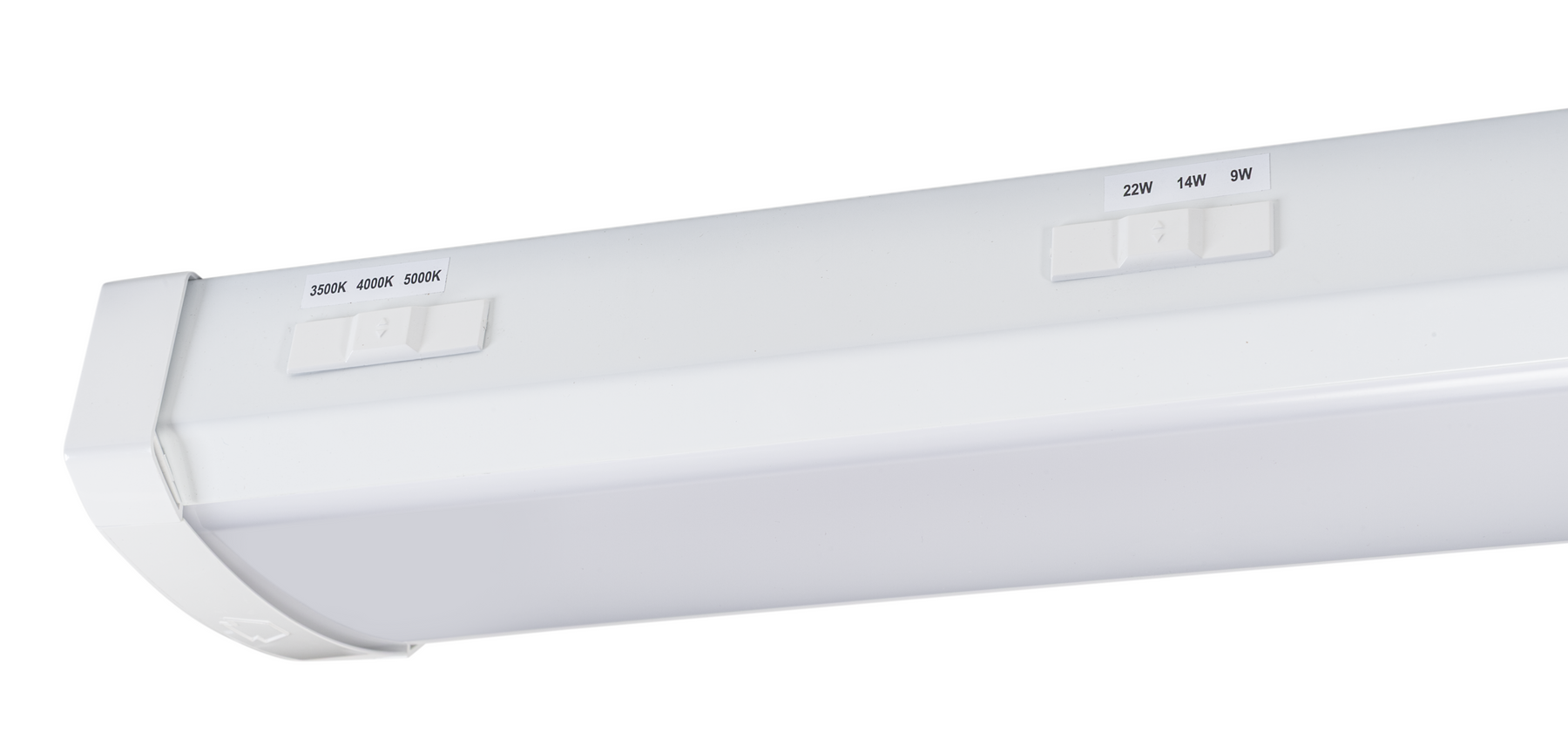

The Keystone Technologies KT-WLED22PS-2B-8CSA-VDIM XFIT low-profile Series B LED wrap fixture delivers versatile, energy-efficient lighting in a sleek 2-foot design ideal for commercial, residential, and utility applications. Featuring selectable wattages of 9W, 14W, or 22W and adjustable color temperatures of 3500K, 4000K, or 5000K, this fixture produces up to 3,000 lumens while operating on 120-277V with smooth 0-10V dimming capability. The white housing and frosted lens provide clean aesthetics with uniform, glare-reduced illumination.

Designed for flexible installation, the fixture supports seamless end-to-end connections for continuous runs up to 32 feet using up to 16 fixtures with optional connectors or cords sold separately. It is also available with Keystone’s SmartLoop Bluetooth™ mesh wireless system, enabling advanced controls such as high-end trim, grouping, occupancy/vacancy sensing, and scheduling. Suitable for installation within clothes closet storage spaces, this DLC-listed fixture is backed by a 100,000-hour rated life and a 10-year limited warranty for long-lasting reliability.

Specifications
Manufacturer Keystone Technologies
MPN KT-WLED22PS-2B-8CSA-VDIM
SKU KT-WLED22PS-2B-8CSA-VDIM
UPC 843654171500
DLC Product ID S-NGPP4F
Lighting Technology LED
Wattage 9/14/22 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3500K/4000K/5000K
Lumens 1230-3120 Lumens
Efficiency (Lumens Per Watt) 131-142 lm/W
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) >80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Housing Color White
Lens Frosted
Operating Temperature -4°F to 113°F (-20°C to 45°C)
Dimensions 24.4" L x 2.2" H x 5.3" W
Certifications UL Listed, DLC Listed
Warranty 10 Year Limited
Documents

Keystone 2 Foot Watt and Color Selectable LED Wrap Fixture Specification Sheet

Keystone 2 Foot Watt and Color Selectable LED Wrap Fixture Installation Instructions

Keystone 2 Foot Watt and Color Selectable LED Wrap Fixture DLC Product Listing
