Name: 2 Round Rotatable Lamp Head 120-277V LED Mini Emergency Light 5700K
Brand: Westgate
SKU: EL-M5-BK
Price: 56.77 USD
Availability: InStock

2 Round Rotatable Lamp Head 120-277V LED Mini Emergency Light 5700K

IP20

Price

Color Temp

5700K

Finish Color

Black

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":48399274311924,"title":"5700K \/ Black","option1":"5700K","option2":"Black","option3":null,"sku":"EL-M5-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":52314817691892,"product_id":9487189049588,"position":1,"created_at":"2026-06-04T14:19:33-04:00","updated_at":"2026-06-04T14:19:34-04:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/EL-M5-BK_Main.webp?v=1780597174","variant_ids":[48399274311924]},"available":true,"name":"2 Round Rotatable Lamp Head 120-277V LED Mini Emergency Light 5700K - 5700K \/ Black","public_title":"5700K \/ Black","options":["5700K","Black"],"price":5677,"weight":422,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378329156","featured_media":{"alt":null,"id":43346818400500,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/EL-M5-BK_Main.webp?v=1780597174"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48399274344692,"title":"5700K \/ White","option1":"5700K","option2":"White","option3":null,"sku":"EL-M5","requires_shipping":true,"taxable":true,"featured_image":{"id":52314827489524,"product_id":9487189049588,"position":4,"created_at":"2026-06-04T14:19:47-04:00","updated_at":"2026-06-04T14:19:49-04:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/EL-M5_Main.webp?v=1780597189","variant_ids":[48399274344692]},"available":true,"name":"2 Round Rotatable Lamp Head 120-277V LED Mini Emergency Light 5700K - 5700K \/ White","public_title":"5700K \/ White","options":["5700K","White"],"price":5216,"weight":422,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378329149","featured_media":{"alt":null,"id":43346827149556,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/EL-M5_Main.webp?v=1780597189"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":48399274311924,"title":"5700K \/ Black","option1":"5700K","option2":"Black","option3":null,"sku":"EL-M5-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":52314817691892,"product_id":9487189049588,"position":1,"created_at":"2026-06-04T14:19:33-04:00","updated_at":"2026-06-04T14:19:34-04:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/EL-M5-BK_Main.webp?v=1780597174","variant_ids":[48399274311924]},"available":true,"name":"2 Round Rotatable Lamp Head 120-277V LED Mini Emergency Light 5700K - 5700K \/ Black","public_title":"5700K \/ Black","options":["5700K","Black"],"price":5677,"weight":422,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378329156","featured_media":{"alt":null,"id":43346818400500,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/EL-M5-BK_Main.webp?v=1780597174"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Video
Request A Quote

Details

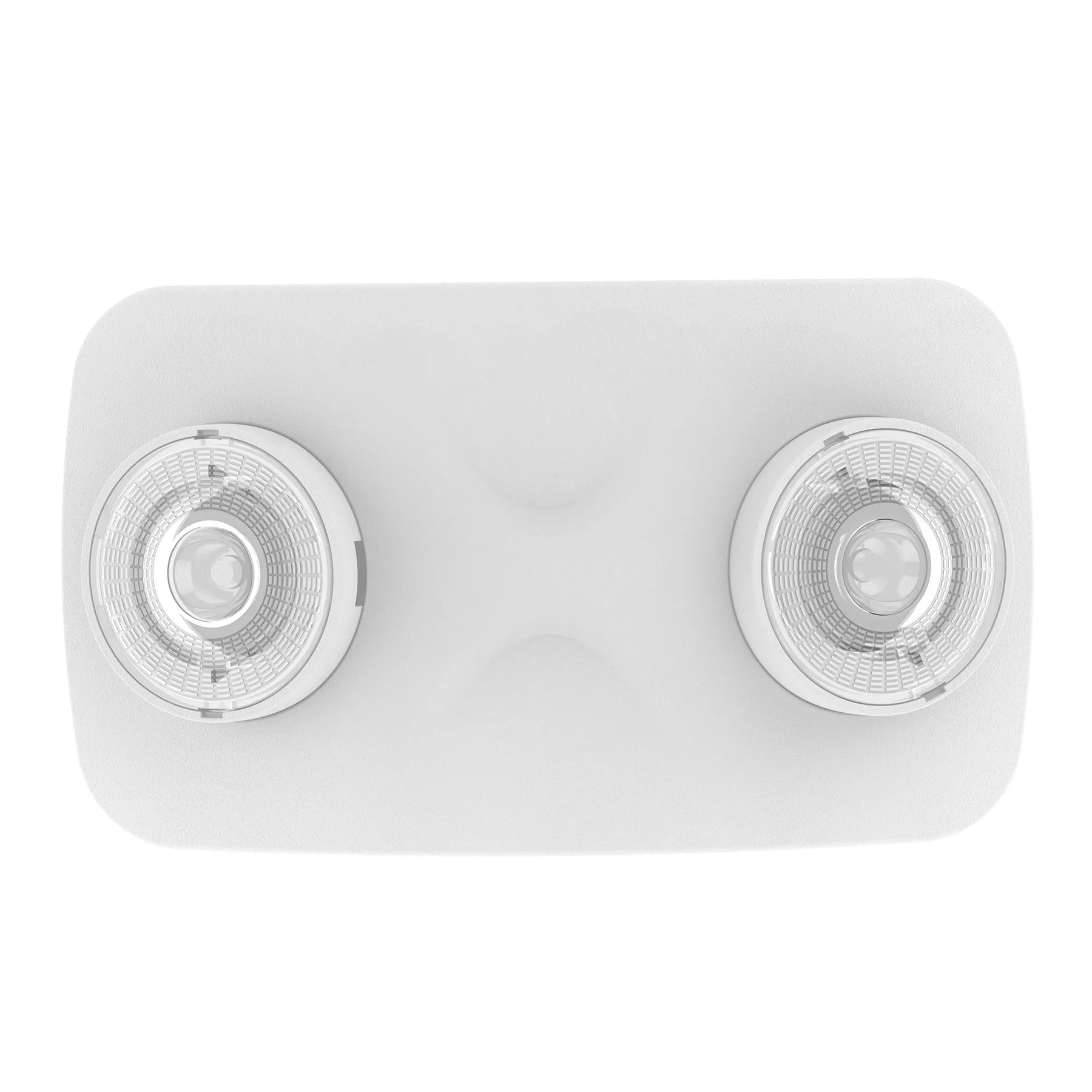

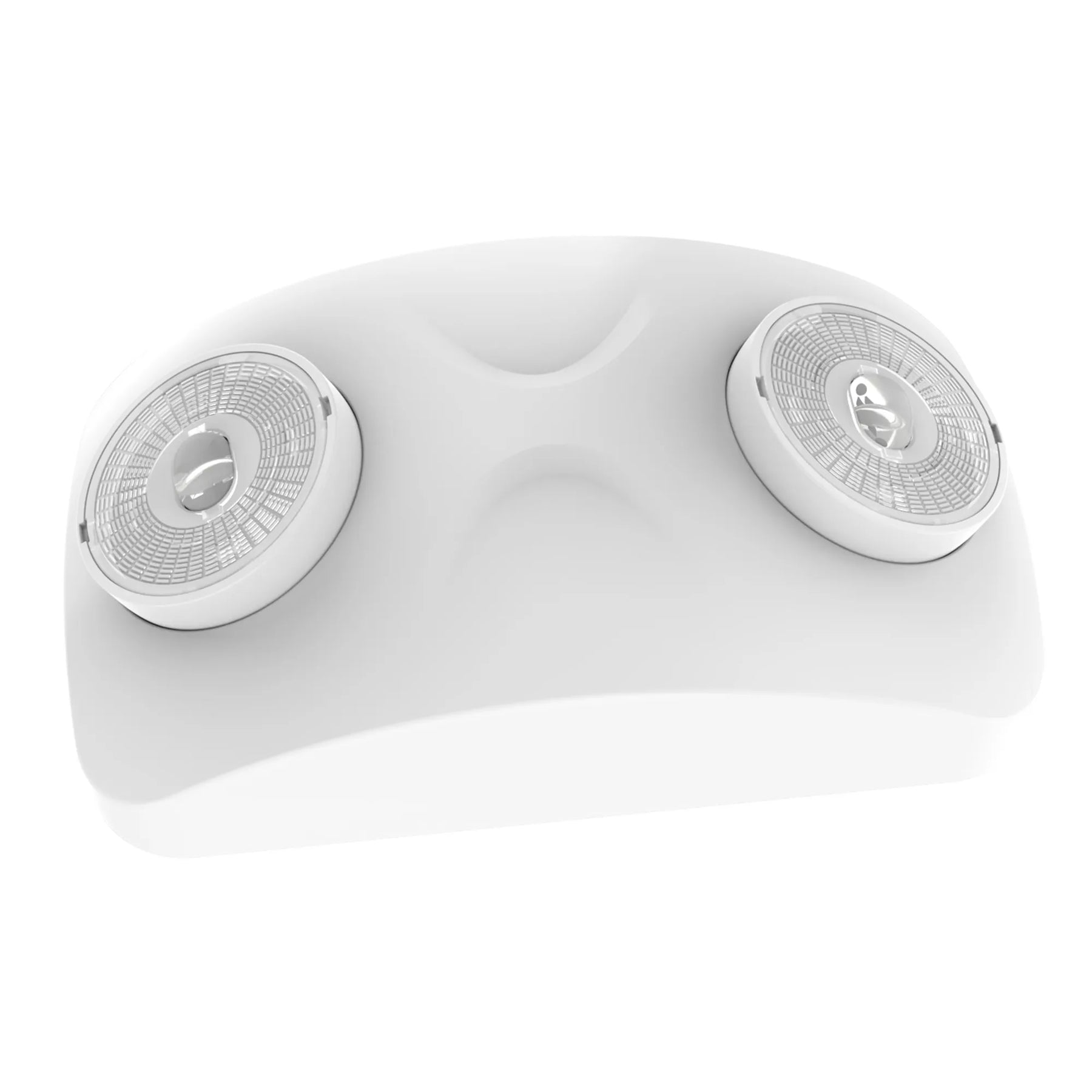

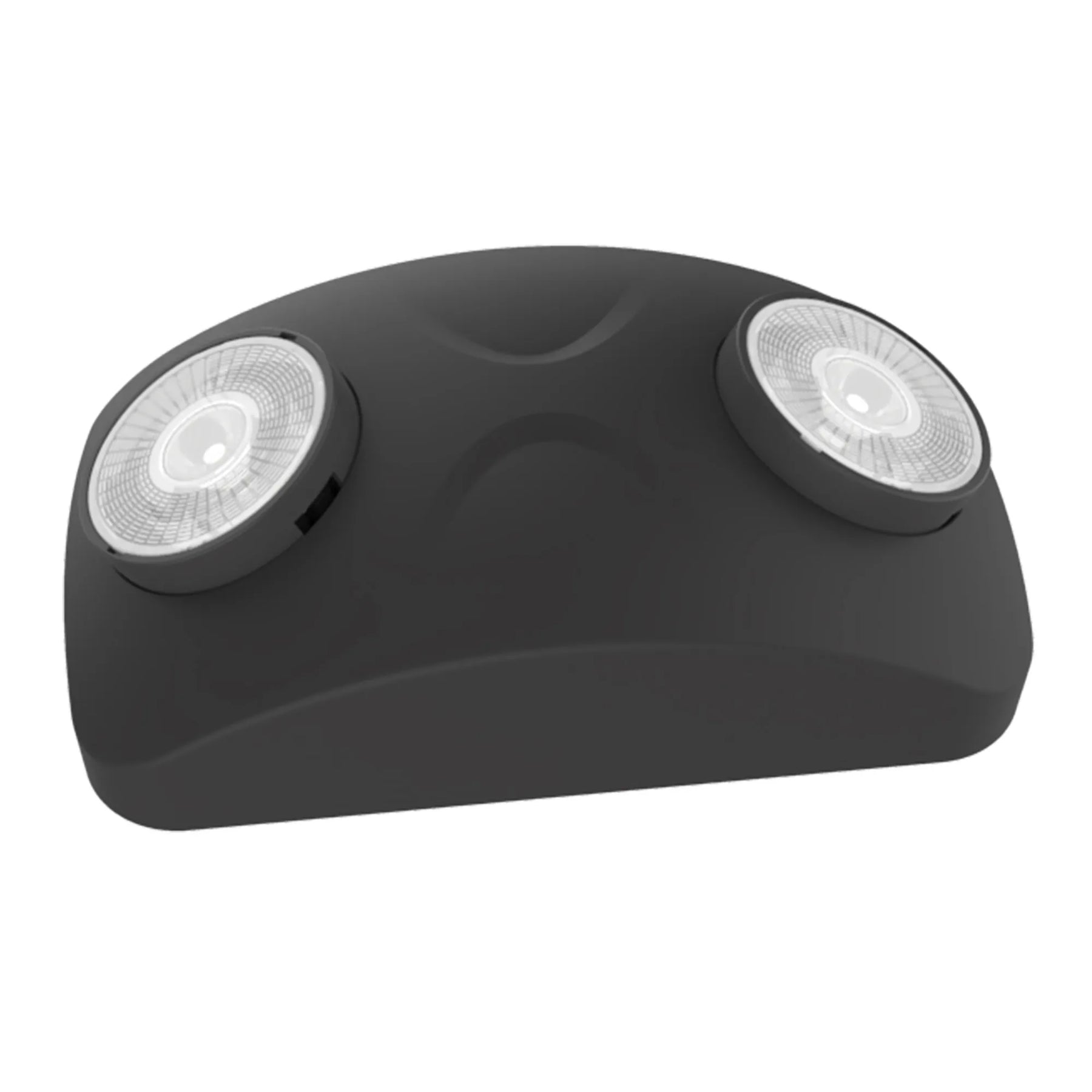

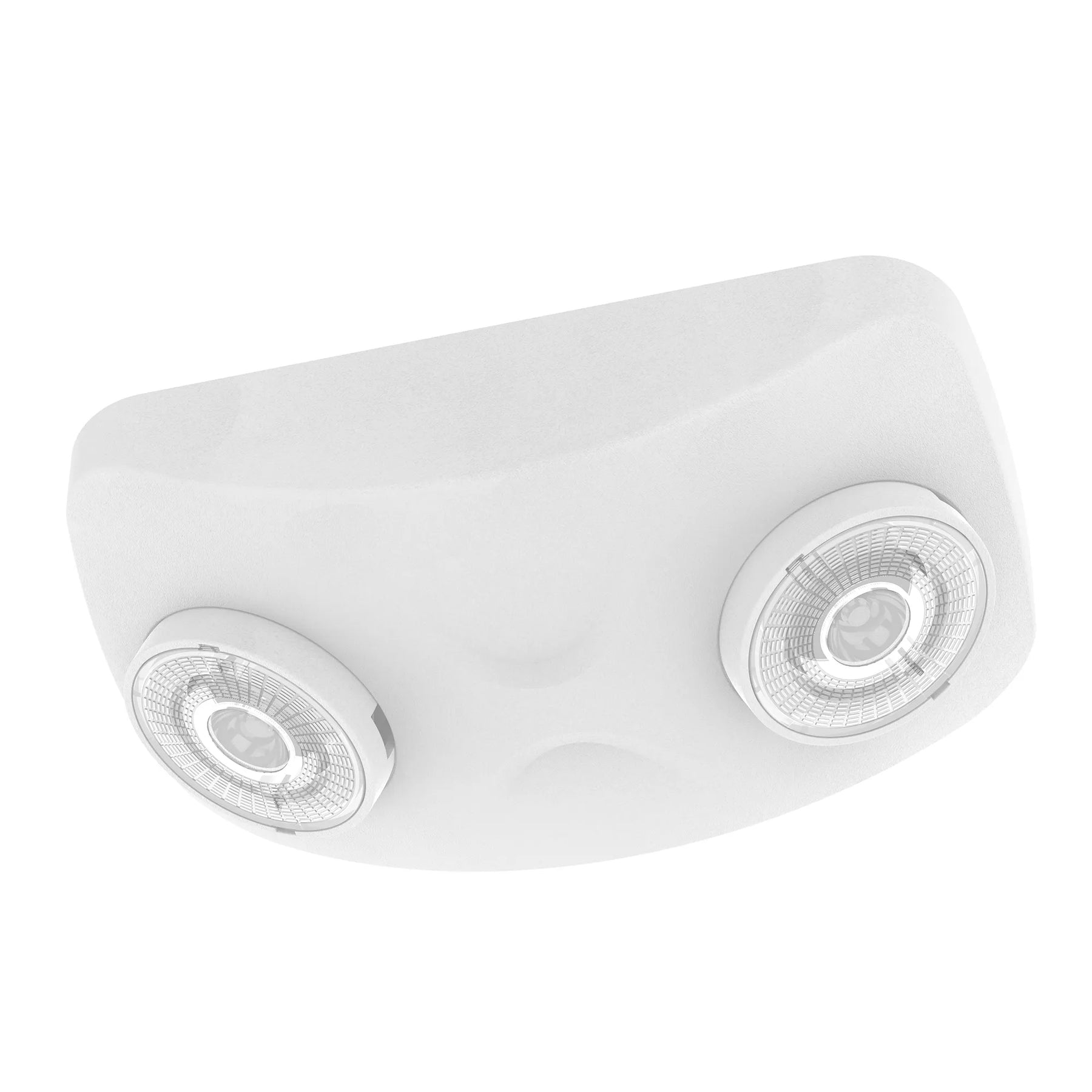

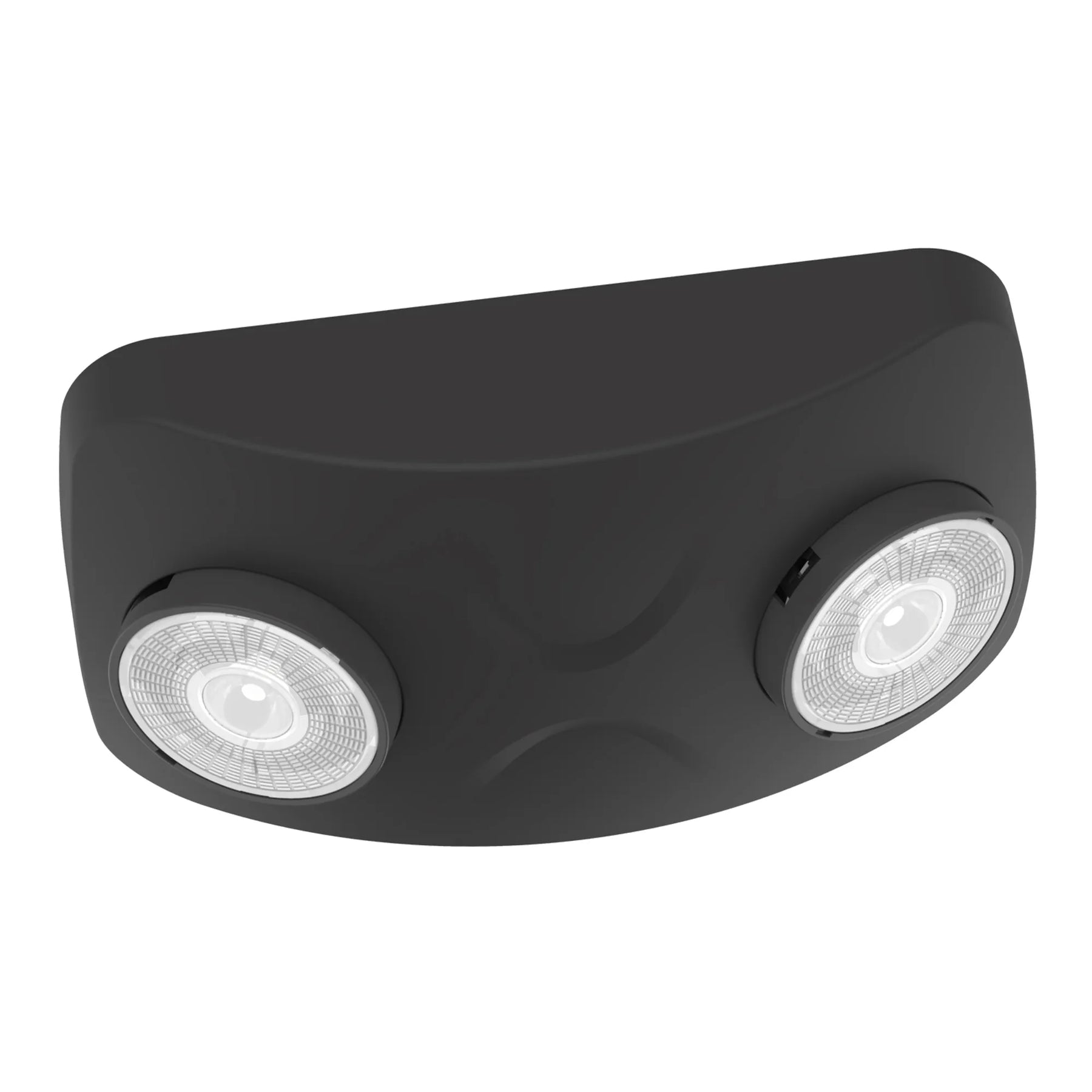

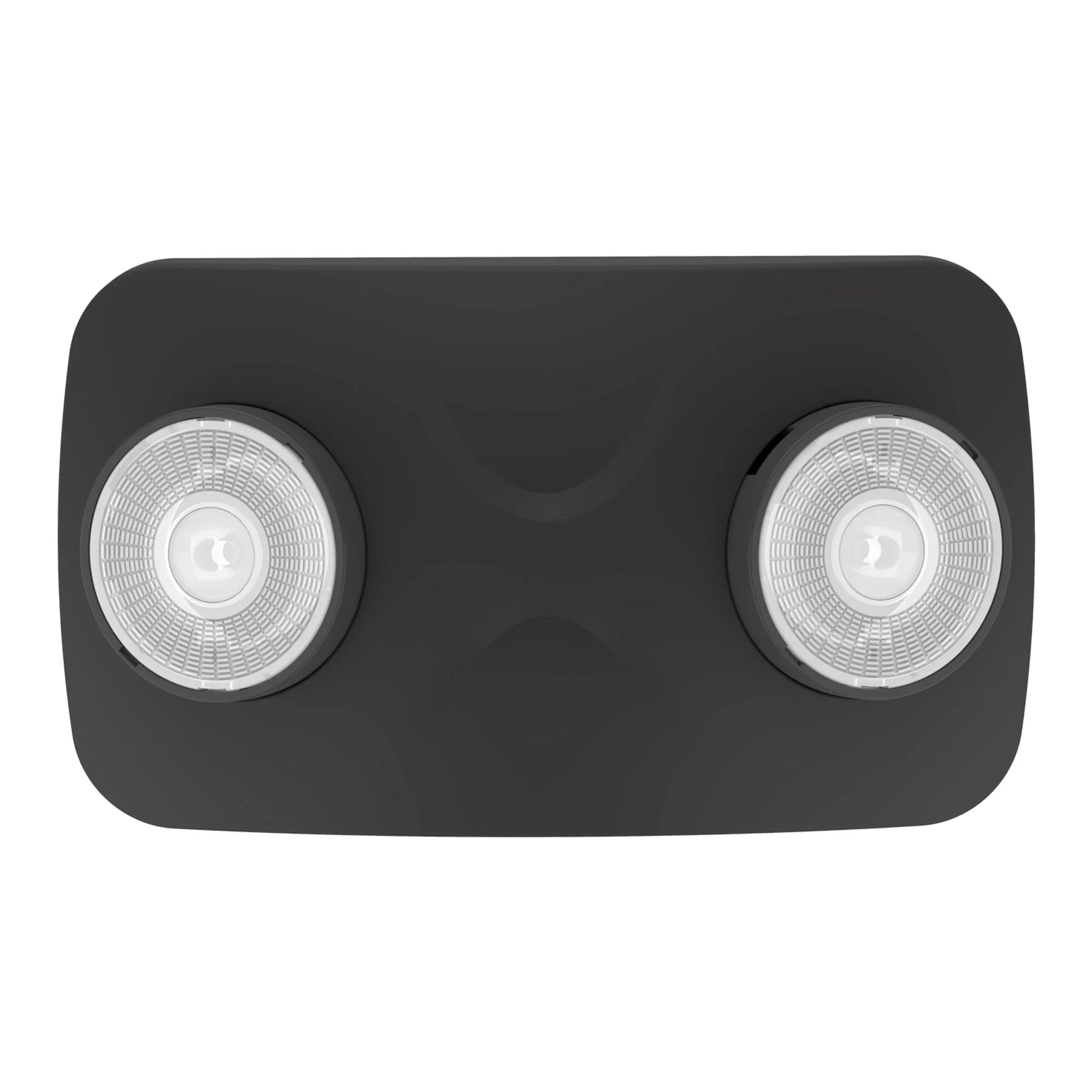

The Westgate EL-M5 Mini Emergency Light is a compact, modern solution for code-compliant emergency egress lighting in commercial and high-occupancy residential buildings. Featuring two fully adjustable 1.5-watt LED lamp heads, this fixture delivers 150 total lumens at a crisp 5700K color temperature with an efficacy of 75 LPW — ensuring clear, reliable illumination exactly when it's needed most. Each lamp head offers approximately 90° of vertical tilt and 350° of horizontal rotation around the mounting axis, giving installers precise directional control for safe egress coverage.

Rated for 120–277V AC input, the EL-M5 is built for broad voltage compatibility across commercial installations. It operates on a built-in 3.6V 1000mAh Ni-MH battery that provides a minimum of 90 minutes of emergency operation and reaches a full recharge in a maximum of 24 hours. A conveniently located test switch and charge indicator make routine maintenance and compliance testing straightforward. The fixture mounts via a universal J-box mounting pattern and carries an IP20 rating for indoor use only, with an operating temperature range of 32°F to 122°F. For wet or damp location applications, an optional IP65-rated enclosure box is available to extend installation versatility.

The EL-M5 is available in Black (SKU: EL-M5-BK) and White (SKU: EL-M5) finishes to complement any interior. Its slim profile — measuring 4.25"(H) × 7.32"(W) × 2.28"(D) and weighing just 0.93 lbs — makes it an unobtrusive yet dependable addition to any emergency lighting plan. Surface-mount installation and a clean, contemporary design make this fixture a go-to choice for architects, electrical contractors, and facility managers seeking performance and aesthetics in one package. Backed by a 3-year warranty, the EL-M5 is a reliable long-term investment for any emergency lighting installation.

Specifications

Manufacturer	Westgate
Finish Color	Black	White
MPN	EL-M5-BK	EL-M5
SKU	EL-M5-BK	EL-M5
UPC	840378329156	840378329149
Lighting Technology	LED
Lamp Head Wattage	1.5 Watt Each
Voltage	120-277VAC
Color Temperature (Kelvin)	5700K Daylight
Total Lumens	150 Lumens
Efficiency (Lumens Per Watt)	75 LPW
Rated Life	90-Minute Rated
Mounting	Surface Mount
Battery	Ni-cd
Charging Time	24 Hours
Testing Function	LED indicator Light and Test Switch
Operating Temperature	32° to 122°F
Dimensions	4.25”(H) x 7.32”(W) x 2.28”(D)
Bug Rating	B0-U1-G0
Environment	Indoor Use Only
Certifications	IP20
Warranty	3 Years

Documents

Westgate LED Mini Emergency Light Specification Sheet

Video

Request A Quote
