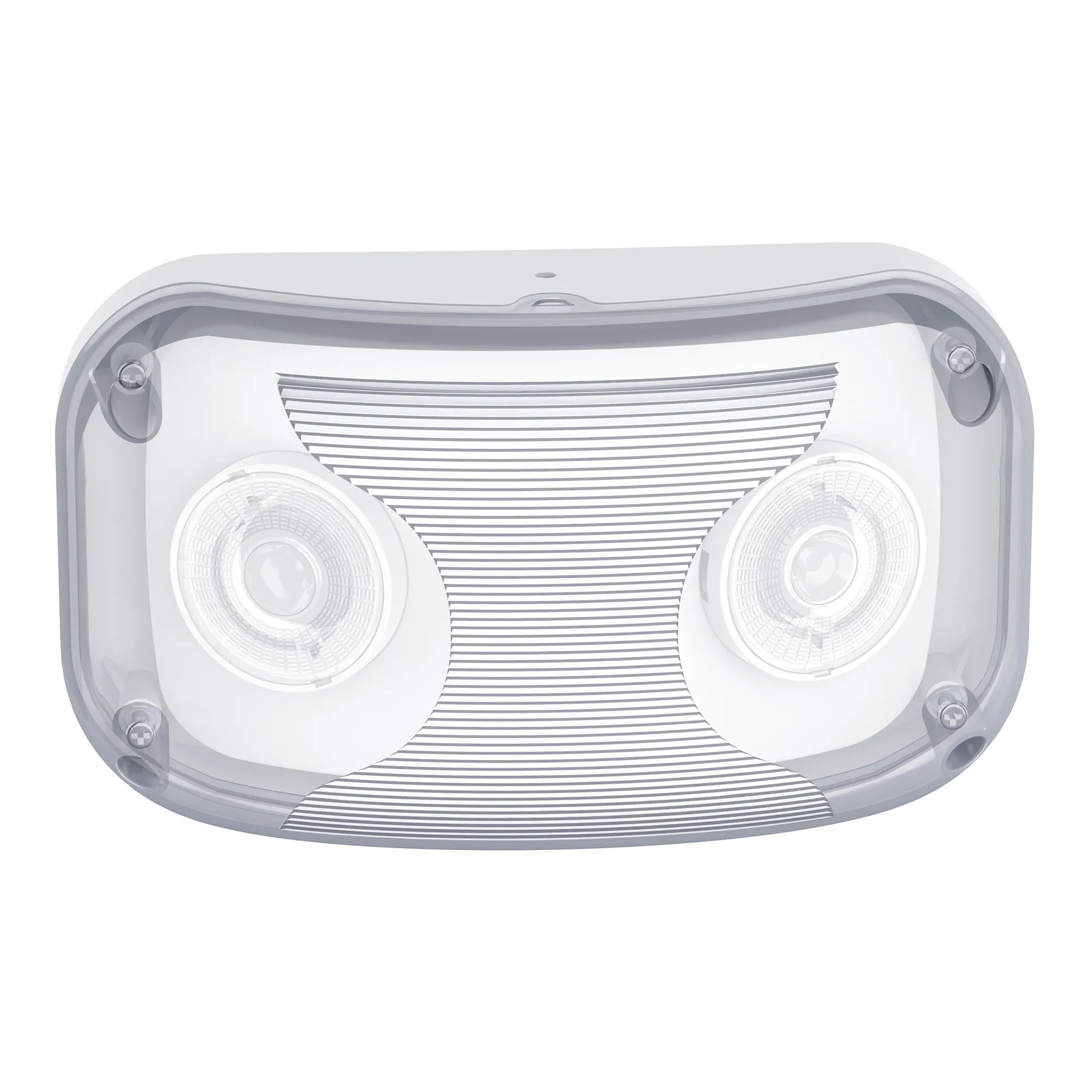

The Westgate EL-M5-HO-WP is a high output, wet location-rated Mini Emergency Light built for demanding commercial and industrial environments where standard indoor fixtures fall short. Featuring two fully adjustable 1.5-watt LED lamp heads, this fixture delivers 200 total lumens at a 5000K color temperature with an efficacy of 66 LPW — providing bright, reliable egress illumination when mains power fails. Each lamp head offers approximately 90° of vertical tilt and 350° of horizontal rotation around the mounting axis, giving installers precise directional control for optimal coverage. The fixture carries an IP20 rating as standard, with an optional IP65-rated enclosure box available for wet or damp location installations.
Rated for 120–277V AC input at 50/60Hz with a power factor greater than 0.90, the EL-M5-HO-WP is engineered for broad voltage compatibility across commercial and industrial applications. Its built-in 3.6V 1000mAh Ni-MH battery provides a minimum of 90 minutes of emergency operation and reaches a full recharge within 24 hours. A test switch and charge indicator are included for straightforward compliance testing and routine maintenance. The fixture surface-mounts via a universal J-box mounting pattern and operates across a temperature range of 32°F to 113°F.
Available in White (SKU: EL-M5-HO-WP), the fixture weighs 1.8 lbs and is suitable for wet locations when paired with the optional IP65 enclosure box — making it an ideal choice for parking garages, stairwells, covered walkways, and other challenging environments. Backed by a 3-year warranty, the EL-M5-HO-WP delivers long-term confidence for facility managers, electrical contractors, and architects who demand both performance and durability.
