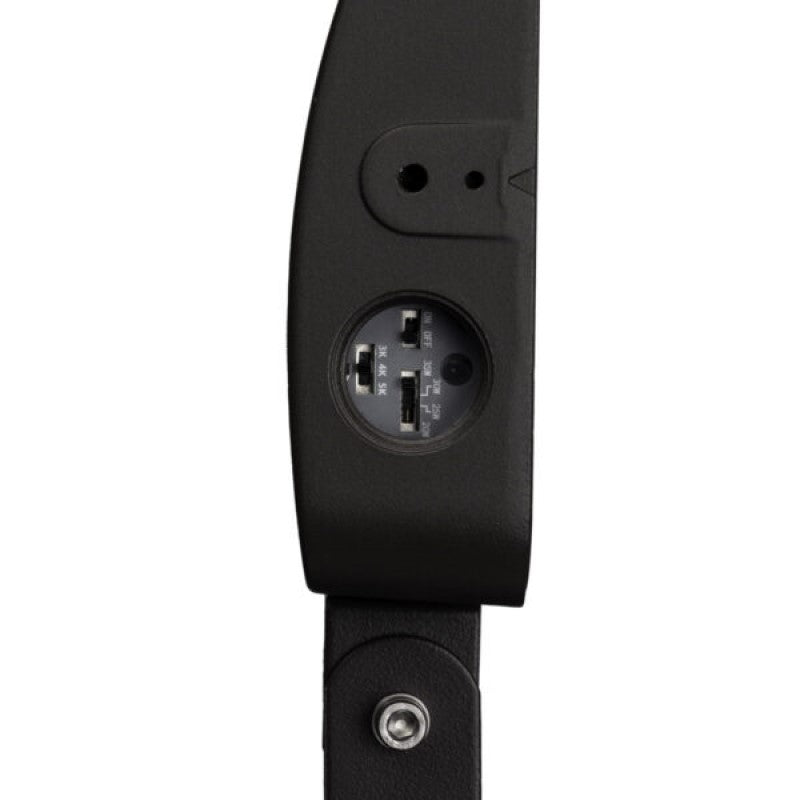

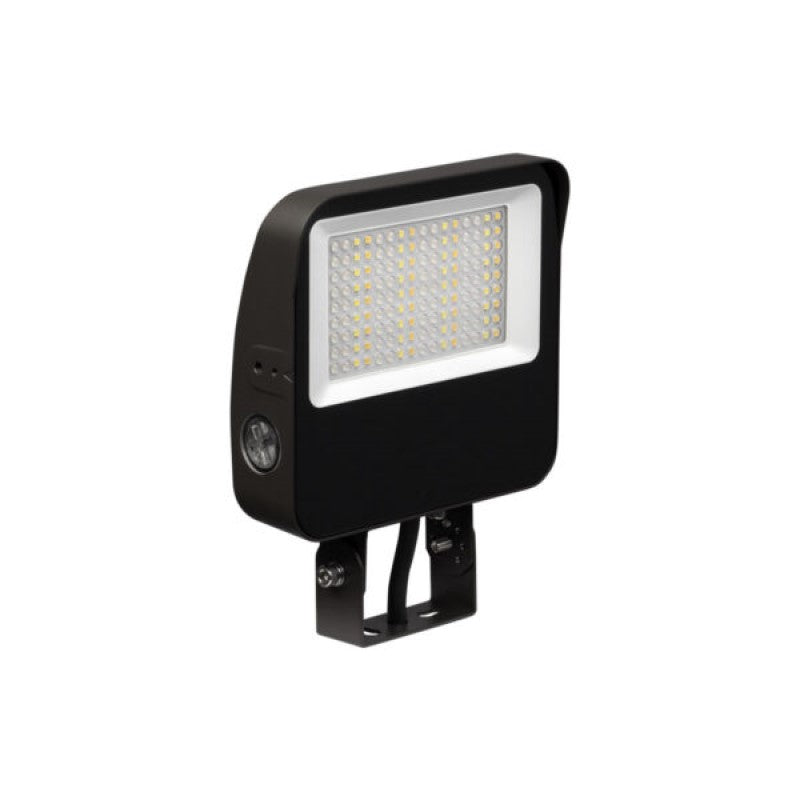

The Atlas Lighting FCSF3-5L field-configurable small LED flood light offers adjustable illumination for commercial and industrial applications. Select from 20, 25, 30, or 35 watts and 3000K, 4000K, or 5000K color temperatures to suit your installation. Operating on 120–277V, this compact fixture delivers 2,527–4,822 lumens with an efficacy range of 135–153 lumens per watt and an 80 CRI. The 20, 25, and 30 watt settings replace up to a 100 watt metal halide lamp, while the 35 watt setting replaces up to a 175 watt metal halide lamp.

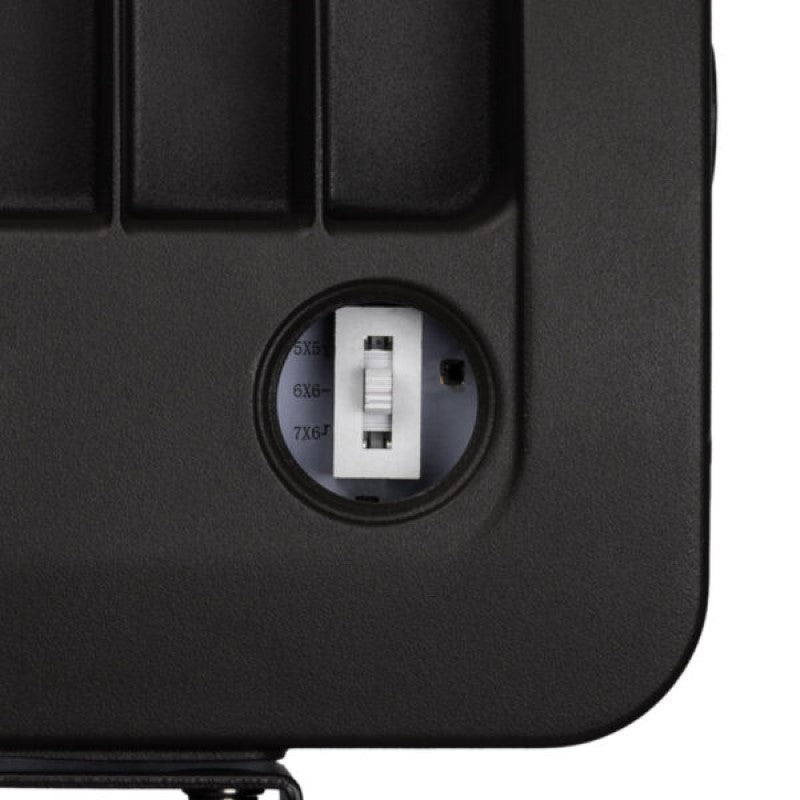

A die-cast aluminum housing helps maintain cooler operating temperatures to support light output and LED longevity. Both knuckle and trunnion mounts are included, providing installation flexibility. The injection-molded acrylic optic offers NEMA 7x6, 6x6, and 5x5 flood distributions, allowing the light pattern to be configured for the application. Published lumen output is based on the 6x6 distribution; multiply lumens by 0.93 for the 7x6 distribution or by 0.94 for the 5x5 distribution.
Featuring 0–10V dimming and an internal on/off photocontrol, the FCSF3-5L supports adjustable light levels and automatic light control. Long-life LEDs provide 100,000 hours of operation while maintaining at least 70% of initial light output (L70). The fixture operates in temperatures from -40°C to +50°C (-40°F to +122°F), is certified to UL/cUL standards for wet locations, carries an IP65 rating, and is DLC Premium Listed. A five-year warranty provides added peace of mind.
The fixture measures 6.875 inches long by 2.125 inches wide, with an overall height of 9.625 inches with the knuckle mount or 8.125 inches with the trunnion mount.
