Name: 20/40/55/65/75 Watt 120-277V LED Hi-Lumen Canopy Light with Photocell and Motion Sensor 3000K/4000K/5000K
Brand: Westgate
SKU: CPX-20-75W-MCT-PSR-BR
Price: 146.01 USD
Availability: InStock

20/40/55/65/75 Watt 120-277V LED Hi-Lumen Canopy Light with Photocell and Motion Sensor 3000K/4000K/5000K

IP65, UL Certified, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Bronze

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":67963162296564,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"CPX-20-75W-MCT-PSR-BR","requires_shipping":true,"taxable":true,"featured_image":{"id":55976420114676,"product_id":15463299055860,"position":1,"created_at":"2026-10-27T11:56:47-04:00","updated_at":"2026-10-27T11:56:48-04:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/productImages_westgate-cpx-20-75w-mct-psr-br-canopy-light-angle.webp?v=1793116608","variant_ids":[67963162296564]},"available":true,"name":"20\/40\/55\/65\/75 Watt 120-277V LED Hi-Lumen Canopy Light with Photocell and Motion Sensor 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":14601,"weight":980,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378345293","featured_media":{"alt":null,"id":46964795932916,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/productImages_westgate-cpx-20-75w-mct-psr-br-canopy-light-angle.webp?v=1793116608"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67963162329332,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"CPX-20-75W-MCT-PSR-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":55976422441204,"product_id":15463299055860,"position":9,"created_at":"2026-10-27T11:57:37-04:00","updated_at":"2026-10-27T11:57:38-04:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/productImages_westgate-cpx-20-75w-mct-psr-wh-canopy-light-angle.webp?v=1793116658","variant_ids":[67963162329332]},"available":true,"name":"20\/40\/55\/65\/75 Watt 120-277V LED Hi-Lumen Canopy Light with Photocell and Motion Sensor 3000K\/4000K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":20446,"weight":980,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378345309","featured_media":{"alt":null,"id":46964798226676,"position":9,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/productImages_westgate-cpx-20-75w-mct-psr-wh-canopy-light-angle.webp?v=1793116658"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67963162296564,"title":"Selectable \/ Bronze","option1":"Selectable","option2":"Bronze","option3":null,"sku":"CPX-20-75W-MCT-PSR-BR","requires_shipping":true,"taxable":true,"featured_image":{"id":55976420114676,"product_id":15463299055860,"position":1,"created_at":"2026-10-27T11:56:47-04:00","updated_at":"2026-10-27T11:56:48-04:00","alt":null,"width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/productImages_westgate-cpx-20-75w-mct-psr-br-canopy-light-angle.webp?v=1793116608","variant_ids":[67963162296564]},"available":true,"name":"20\/40\/55\/65\/75 Watt 120-277V LED Hi-Lumen Canopy Light with Photocell and Motion Sensor 3000K\/4000K\/5000K - Selectable \/ Bronze","public_title":"Selectable \/ Bronze","options":["Selectable","Bronze"],"price":14601,"weight":980,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378345293","featured_media":{"alt":null,"id":46964795932916,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/productImages_westgate-cpx-20-75w-mct-psr-br-canopy-light-angle.webp?v=1793116608"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

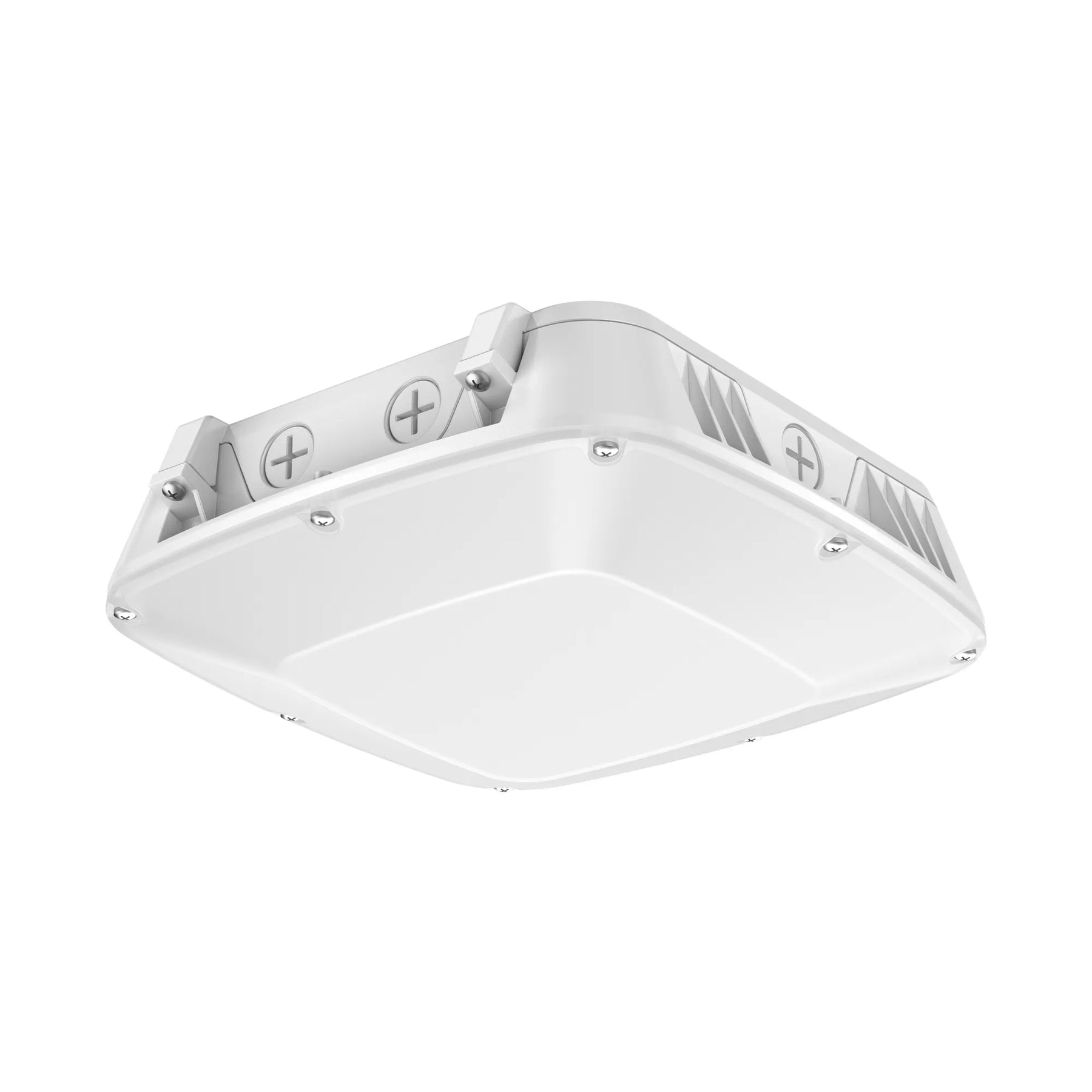

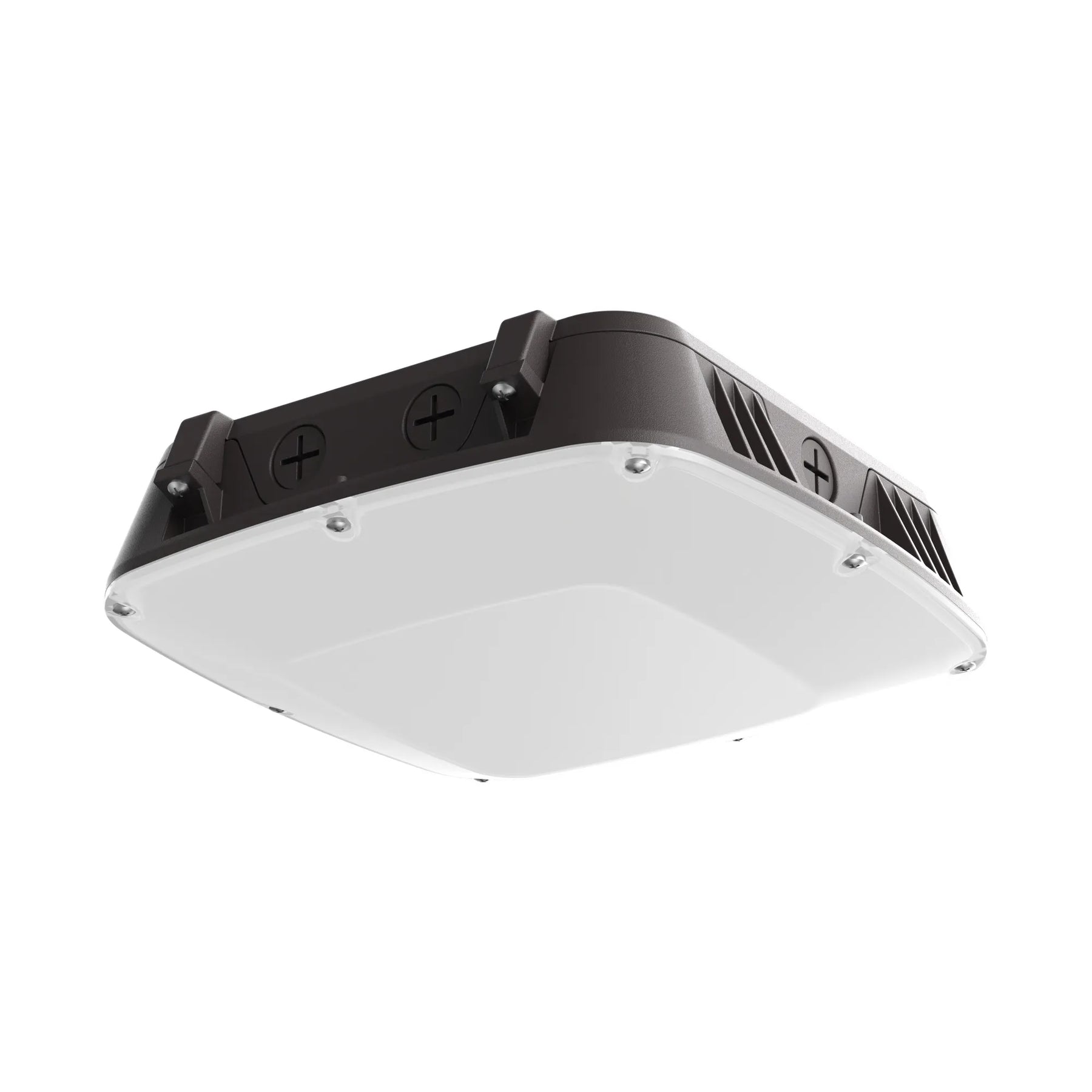

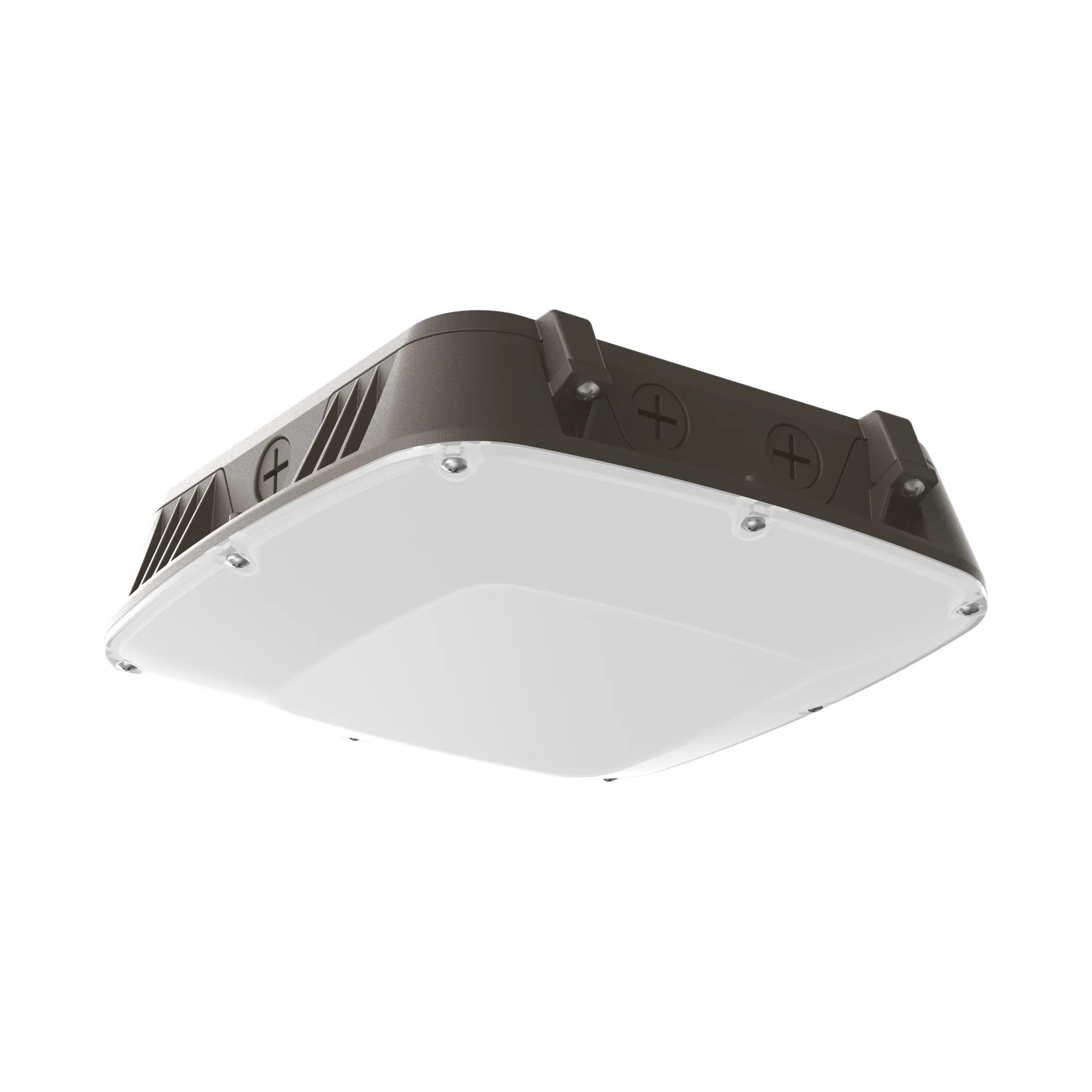

The Westgate CPX LED Hi-Lumen Canopy Light provides field-adjustable lighting for gas station canopies, covered parking areas, walkways, and entrances. Available in bronze (CPX-20-75W-MCT-PSR-BR) or white (CPX-20-75W-MCT-PSR-WH), this 120–277V fixture offers five selectable wattage settings of 20W, 40W, 55W, 65W, and 75W, along with selectable 3000K, 4000K, and 5000K color temperatures. Adjust the light output and color temperature on site to suit the installation, with a factory default setting of 75W and 5000K.

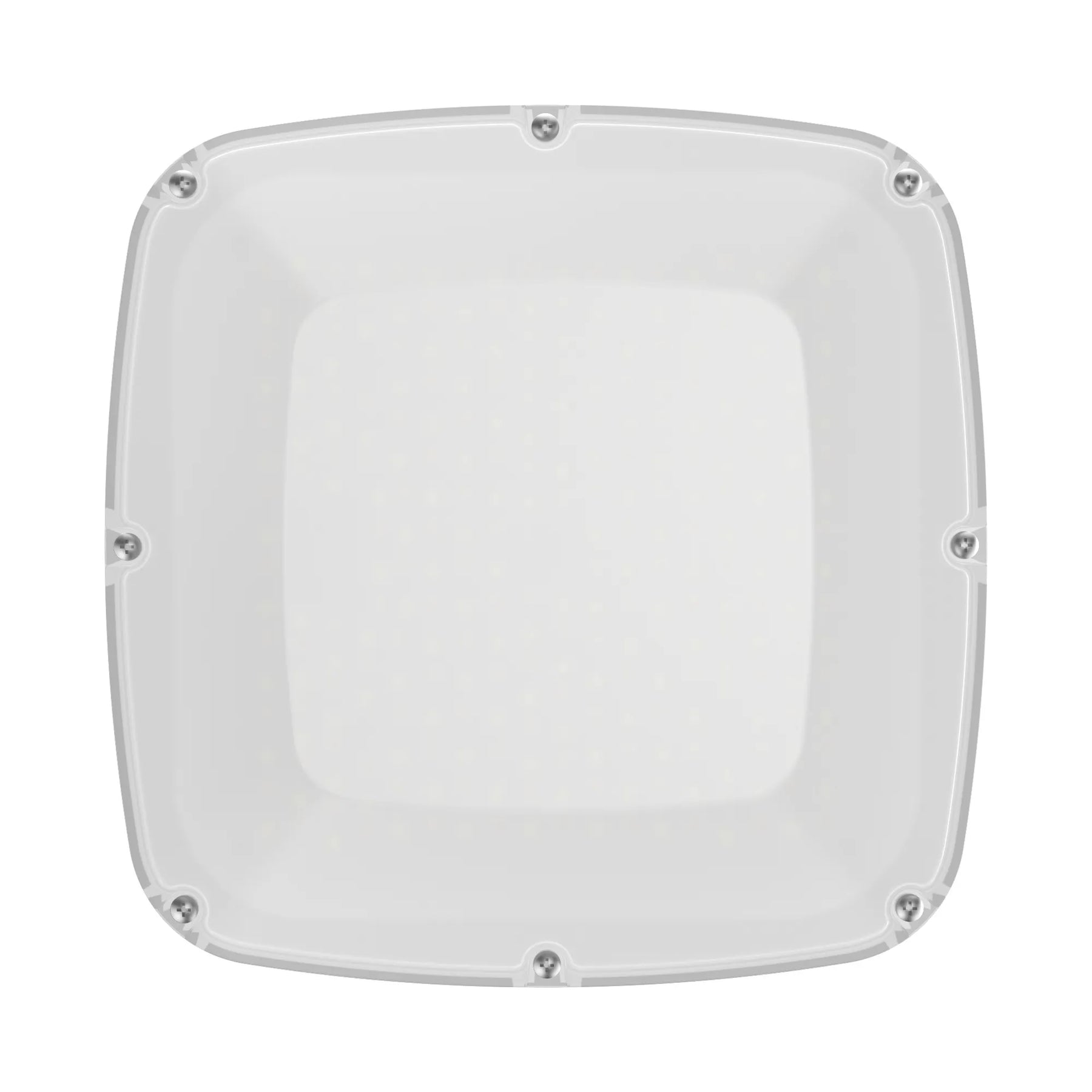

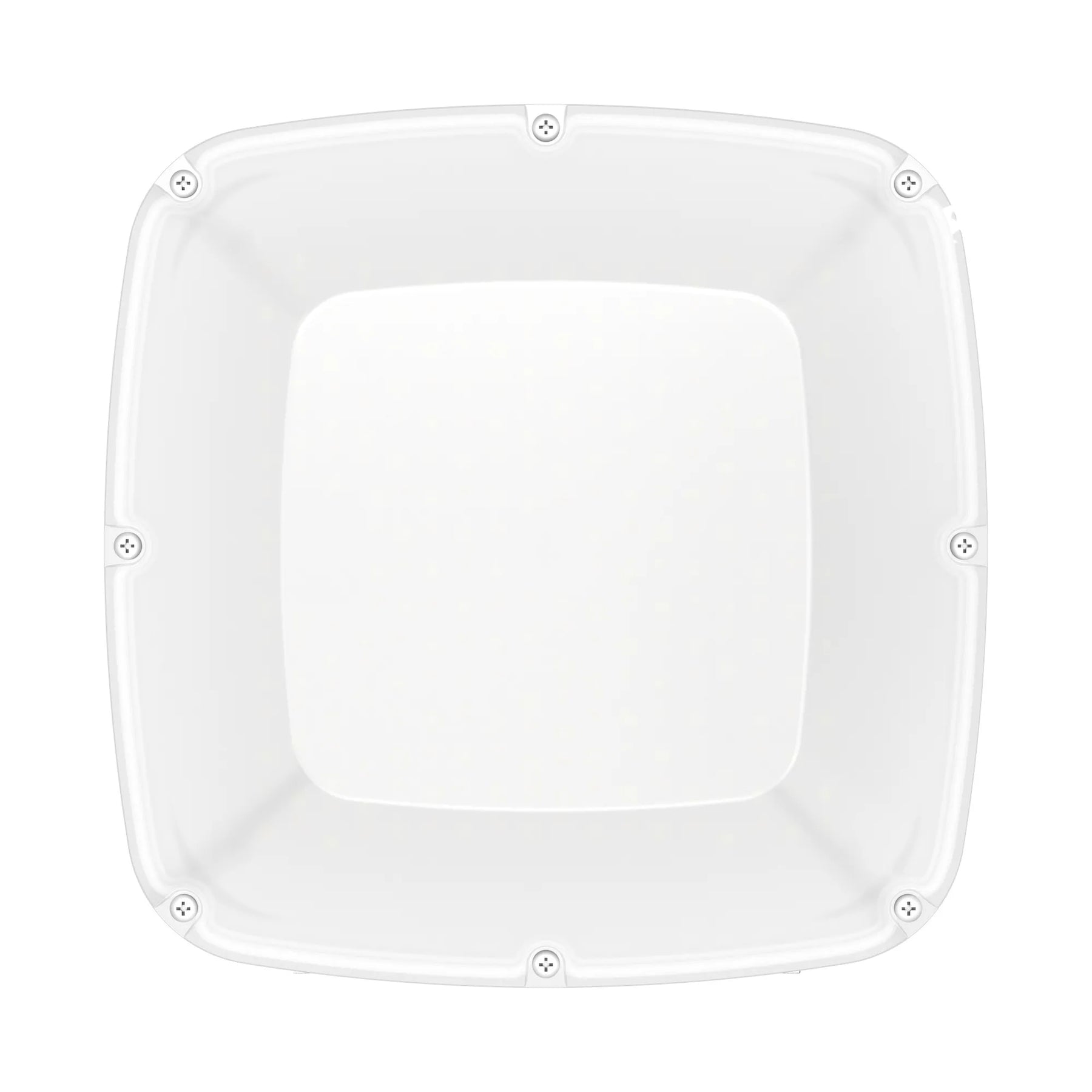

At 5000K, the fixture delivers 2,600 lumens at 20W, 5,200 lumens at 40W, 7,150 lumens at 55W, 8,450 lumens at 65W, and 9,750 lumens at 75W, with an efficacy of 130 lumens per watt. A full polycarbonate lens distributes light across a 110° beam angle, while a CRI greater than 80 supports color rendering. The fixture also supports 0–10V dimming for adjustable light levels.

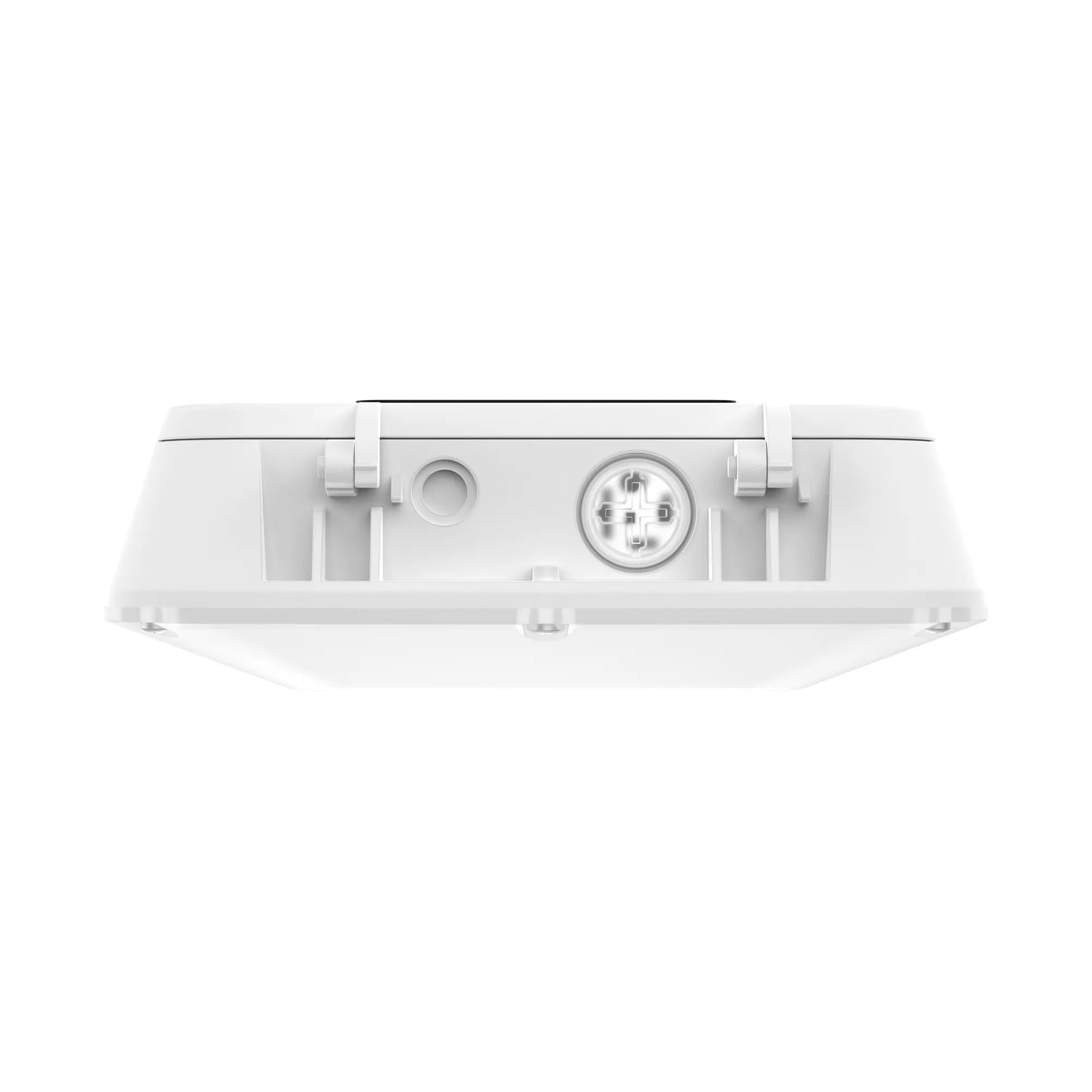

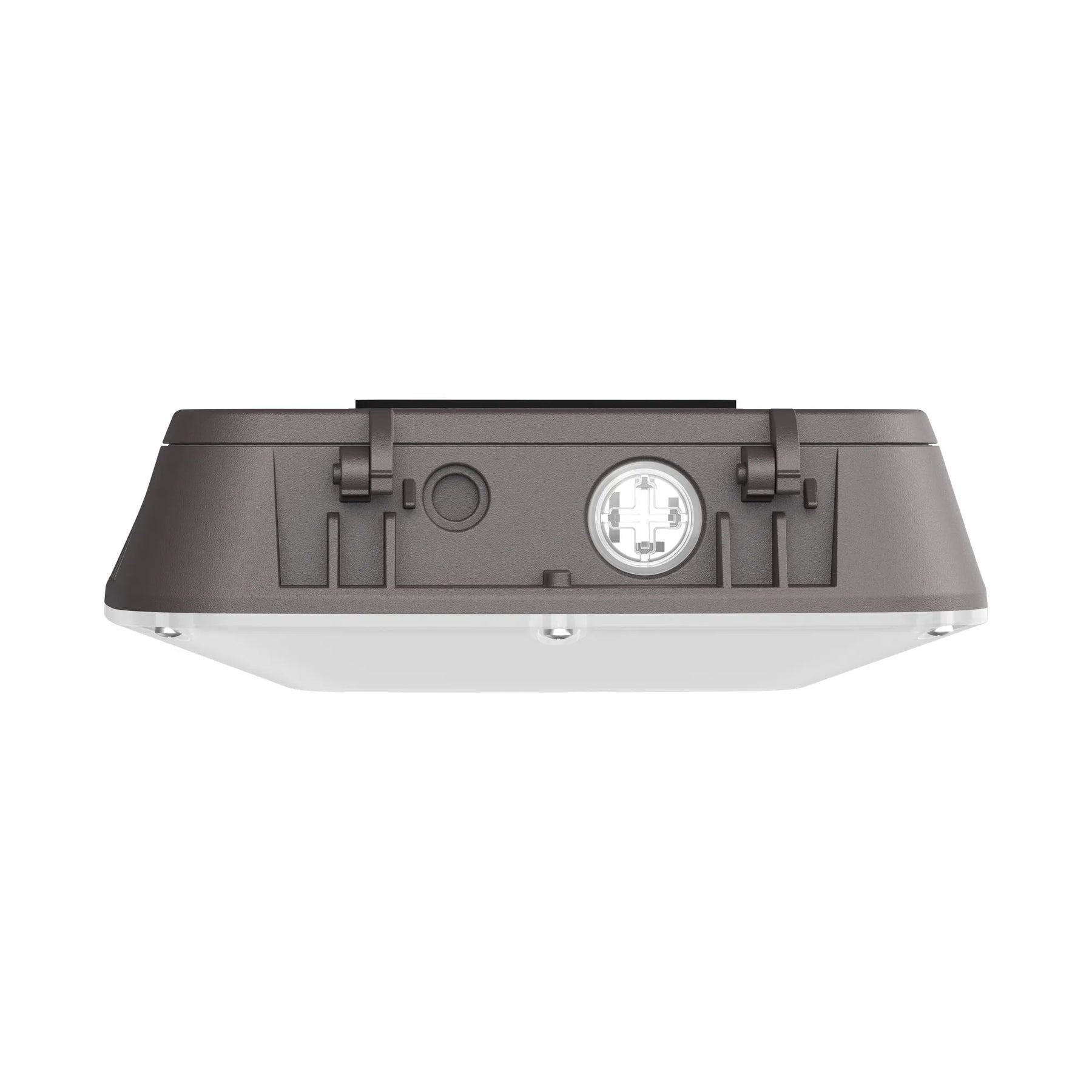

A preinstalled photocell provides dusk-to-dawn operation, and a built-in microwave motion sensor is concealed inside the lens. Both controls feature ON/OFF switches, and a selectable 10% dim standby mode offers reduced light output when needed. Wattage, color temperature, and control switches are accessible behind a sealed cover plug on the side of the housing.

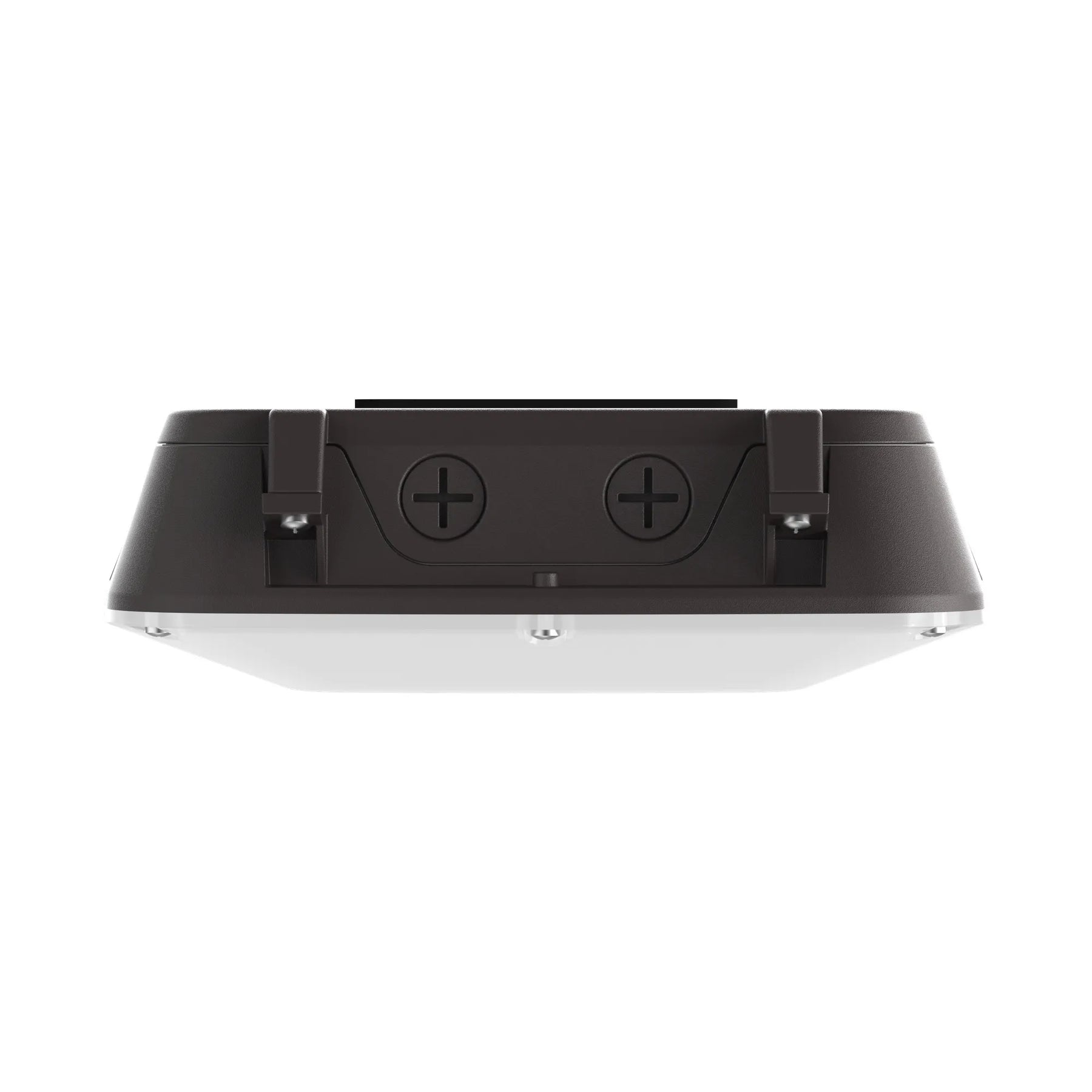

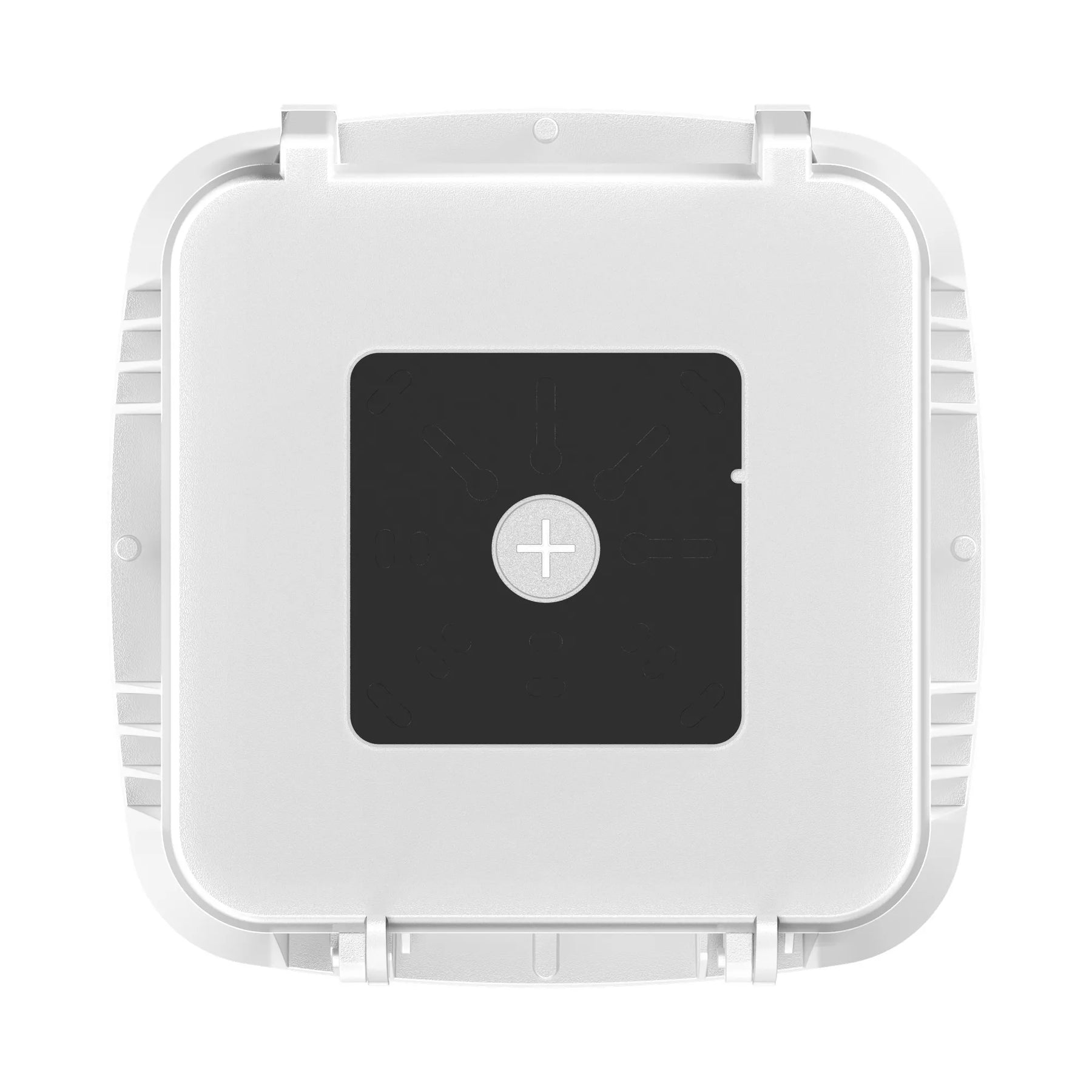

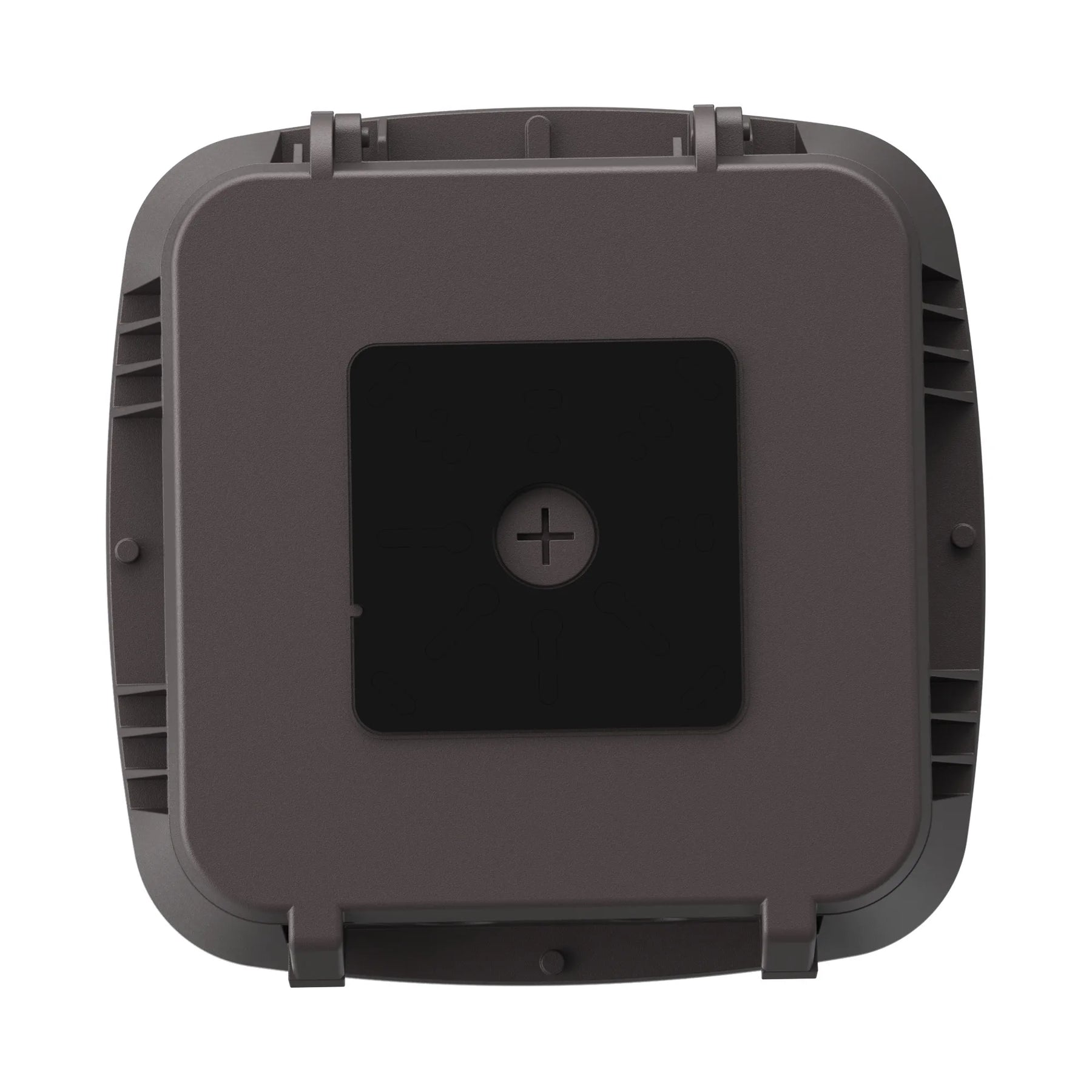

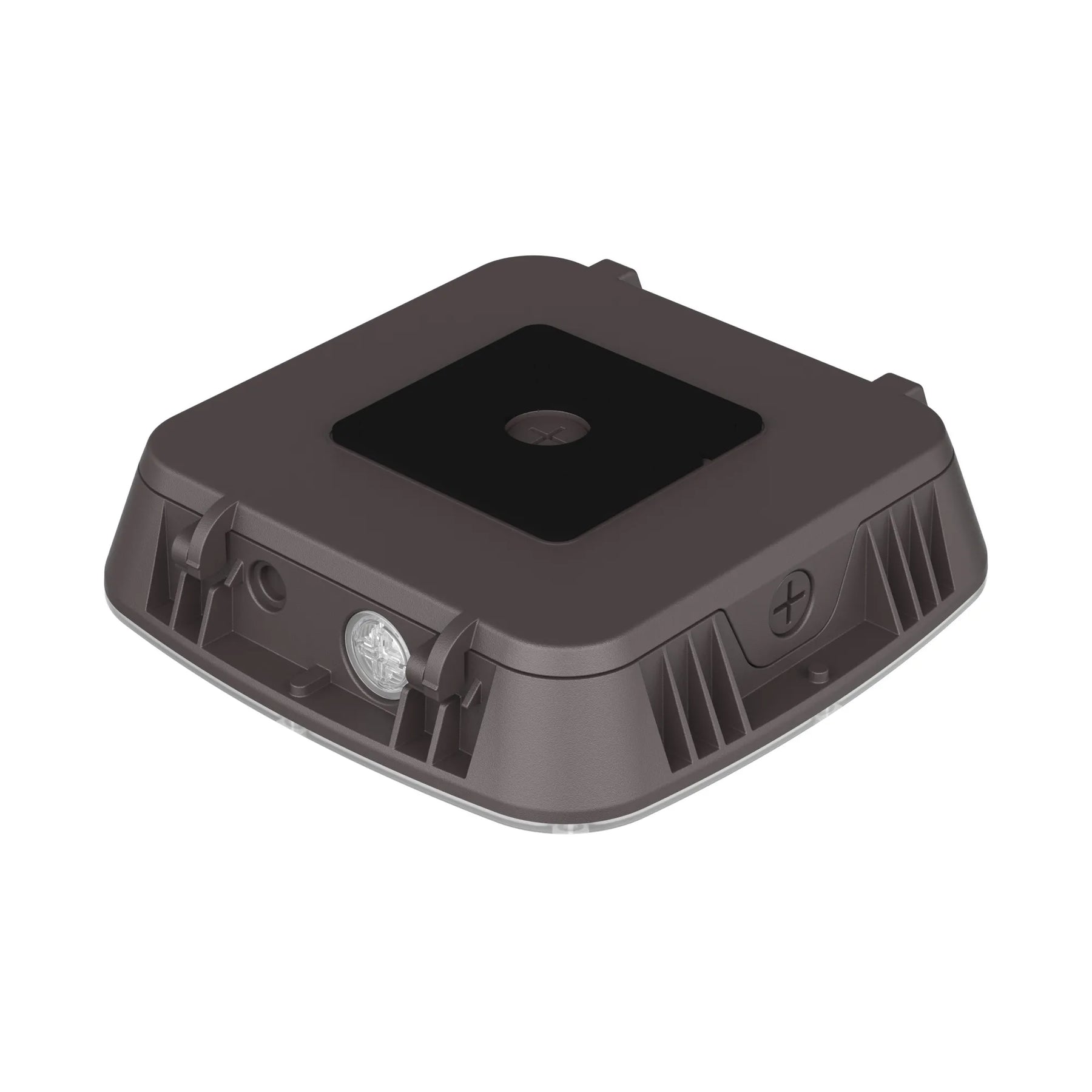

Constructed with a die-cast aluminum housing and an IP65 rating, the CPX is suitable for operating temperatures from -40°F to 113°F. Its flip-open hinged housing and safety rope simplify wiring during installation. The fixture supports surface mounting or pendant mounting through a 3/4-inch NPT top entry for 3/4-inch threaded conduit pipe. Measuring 10.01 inches long by 10.01 inches wide by 3.21 inches high, it includes four self-tapping screws and five twist-on wire connectors.

The Westgate CPX features a 70,000-hour rated life and a seven-year warranty. The OPT-EM-CPX factory-installed emergency option is available separately. The fixture is UL listed.

Specifications

Manufacturer	Westgate
Finish Color	Bronze	White
MPN	CPX-20-75W-MCT-PSR-BR	CPX-20-75W-MCT-PSR-WH
SKU	CPX-20-75W-MCT-PSR-BR	CPX-20-75W-MCT-PSR-WH
UPC	840378345293	840378345309
Lighting Technology	LED
Wattage	20/40/55/65/75 Watts
Voltage	120-277V
Color Temperature (Kelvin)	3000K/4000K/5000K
Lumens @ 5000K	2,600/5,200/7,150/8,450/9,750 Lumens
Efficiency (Lumens Per Watt)	130 lm/W
Dimmable	Yes, 0-10V
Beam Angle	110°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	>80 CRI
Housing	Die-cast Aluminum
Lens	Polycarbonate
Bug Rating	B3-U3-G3
Operating Temperature	-40°F to 113°F
Dimensions	10.01" (L) x 10.01" (W) x 3.21" (H)
Environment	Wet Location Rated
Certifications	IP65, UL Listed
Warranty	7 Year

Documents

Westgate 20/40/55/65/75 Watt 120-277V LED Hi-Lumen Canopy Light Specification Sheet

Westgate 20/40/55/65/75 Watt 120-277V LED Hi-Lumen Canopy Light Installation Instructions
