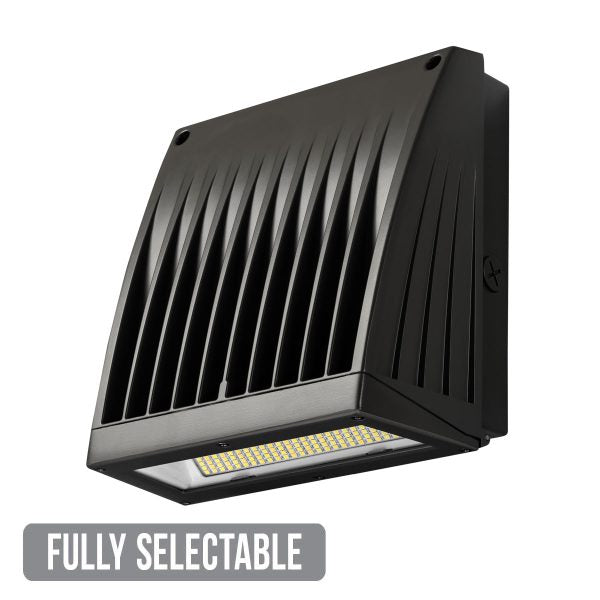

The Atlas Lighting SlimPak Pro Series Small LED Wall Pack (Part #WSPLS2-8L) brings a slim, low-profile design and refined architectural styling to commercial and industrial outdoor lighting. With selectable wattages of 20, 40, 60 or 72 watts and field-adjustable color temperatures of 4000K, 4500K, or 5000K, this fixture offers the flexibility contractors need to match output to the application — all from a single stocked SKU.
Installation is straightforward thanks to a labor-saving hinged face frame with a built-in bubble level that simplifies mounting and alignment. The fixture is hinged at the bottom to prevent water ingress, and apertures are provided for field or factory installed photocontrol. The zero-glare optical design directs light forward and downward, producing a smooth, uniform ground-level light pattern without wasting lumens or creating offensive spill light.
Atlas engineered the SlimPak Pro as a complete thermal system, using proprietary thermal stacking heat removal technology to extract heat from within the housing and move it away from the LEDs and components. The result is cooler operating temperatures, higher light output, and a rated lifespan exceeding 200,000 hours. Output ranges from 2,134 to 8,387 lumens at up to 127 LPW with 80 CRI, and the fixture is capable of replacing up to 400W metal halide. It operates on 120–277V with 0–10V dimming, is certified to UL/cUL Standards for Wet Locations, DLC Listed, BAA Compliant, and cULus certified. Made in the USA. Backed by a 5-year warranty.
| Manufacturer | Atlas Lighting |
| MPN | WSPLS2-8L |
| SKU | WSPLS2-8L |
| UPC | 765364048401 |
| DLC Product ID | S-8YO6TP |
| Lighting Technology | LED |
| Wattage | 20/40/60/72 Watts |
| Voltage | 120-277V |
| Color Temperature (Kelvin) | 4000K/4500K/5000K |
| Lumens | 2,134-8,387 Lumens |
| Efficiency (Lumens Per Watt) | Up to 127 LPW |
| Dimmable | Yes, 0-10V |
| CRI (Color Rendering Index) | 80 CRI |
| Finish Color | Bronze |
| Housing | Die-cast Aluminum |
| Metal Halide Equivalent | 400 Watts |
| Dimensions | 8.88" L x 5.25" W x 9.40" H |
| Bug Rating | B2-U0-G1 |
| Environment | Outdoor, Wet Location Rated |
| Certifications | cULus, BAA Compliant, DLC Listed, Made In USA |
| Warranty | 5 Years |
| Wattage | 20 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 2,238 Lumens | 2,350 Lumens | 2,134 Lumens |
| Efficiency (Lumens Per Watt) | 112 LPW | 123 LPW | 107 LPW |
| Wattage | 40 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 4,640 Lumens | 4,872 Lumens | 4,424 Lumens |
| Efficiency (Lumens Per Watt) | 116 LPW | 127 LPW | 111 LPW |
| Wattage | 60 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 6,655 Lumens | 6,987 Lumens | 6,346 Lumens |
| Efficiency (Lumens Per Watt) | 112 LPW | 123 LPW | 106 LPW |
| Wattage | 72 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 7,915 Lumens | 8,387 Lumens | 7,617 Lumens |
| Efficiency (Lumens Per Watt) | 110 LPW | 121 LPW | 106 LPW |
