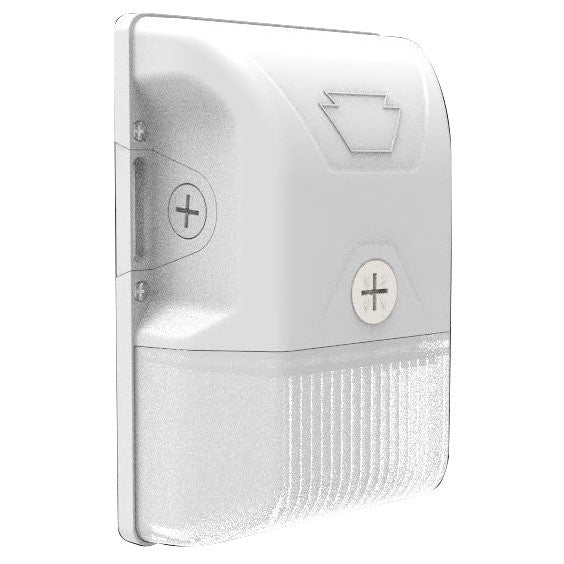

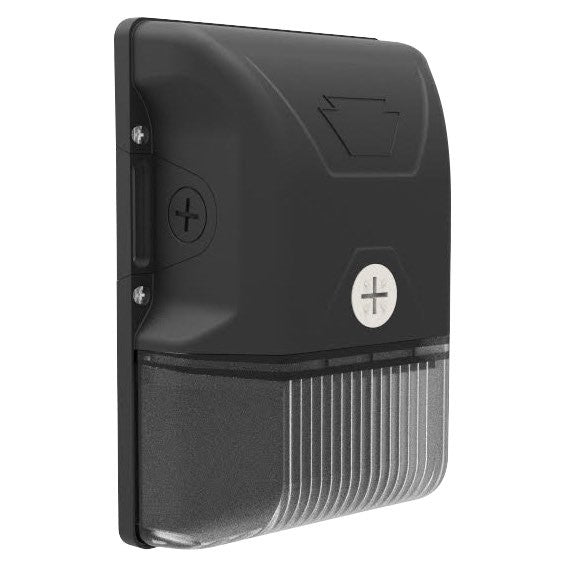

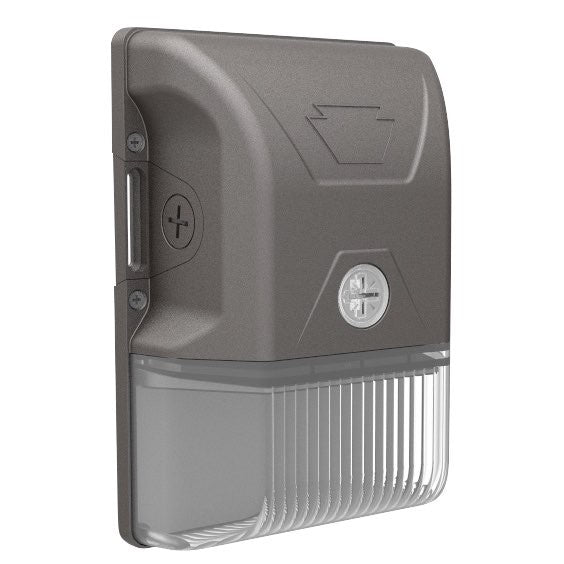

Keystone’s XFit LED low-profile wall packs are ideal for general safety and security illumination needs. The small, low profile design of these fixtures allows them to be mounted virtually anywhere. An impact-resistant and highly diffused polycarbonate lens protects the fixture while offering reduced glare for low mounting height applications. For additional energy savings and controllability, the small wall packs feature a built-in dusk-to-dawn photocell to ensure the lights are only on when needed. Most units are also equipped with innovative Color Select feature, allowing you to choose your desired color temperature with a simple switch for extra versatility, with three color selectable options: 3000K Warm White, 4000K Cool White and 5000K Daylight.
The Keystone small low profile LED wall pack has a die-cast aluminum housing with (3) 1/2" threaded conduit hubs - (1) located on the back and (1) on each side of the fixture - and bronze, black, or white finish options. It consumes 20 watts of 120-277V energy and delivers between 2,500-2,700 lumens of 3000K, 4000K or 5000K LED light output. This LED wall pack includes a built in dusk-to-dawn photocell placed behind a translucent 1/2" threaded plug that has an anti-yellowing agent. Typical applications for this color select wall pack would include: perimeters, pathways, loading docks, and other general security lighting requirements. This DLC Premium Listed fixture is suitable for wet locations and carries a 5 year warranty.
Manufacturer | Keystone Technologies | ||
Finish Color | Bronze | Black | White |
MPN | KT-WPLED20-S1-8CSB-VDIM | KT-WPLED20-S1-8CSB-VDIM-B | KT-WPLED20-S1-8CSB-VDIM-W |
SKU | KT-WPLED20-S1-8CSB-VDIM | KT-WPLED20-S1-8CSB-VDIM-B | KT-WPLED20-S1-8CSB-VDIM-W |
UPC | 843654129112 | 843654129129 | 843654129136 |
Color Temperature (Kelvin) | 3000/4000/5000K | ||
Lumens | 2600/2700/2500 Lumens | ||
Efficiency (Lumens Per Watt) | 130/135/125 LPW | ||
Lighting Technology | LED | ||
Wattage | 20 Watts | ||
Voltage | 120-277V | ||
Dimmable | Yes, 0-10V | ||
Rated Life | 50,000 Hours | ||
CRI (Color Rendering Index) | 80 CRI | ||
Power Factor | >0.95 | ||
THD (Total Harmonic Distortion) | <20% | ||
Operating Temperature | -40°C to 50°C | ||
Dimensions | 5.81" L x 8.61" H x 3.09" W | ||
Certifications | IP65, DLC Premium Listed, TAA Compliant | ||
DLC Product ID | PI7SCMGD | ||
Environment | Wet Location | ||
Warranty | 5 Year Limited |
Keystone Small Low Profile LED Wall Pack With Photocell Specification Sheet - Bronze
Keystone Small Low Profile LED Wall Pack With Photocell Specification Sheet - Black
Keystone Small Low Profile LED Wall Pack With Photocell Specification Sheet - White
Keystone Small Low Profile LED Wall Pack With Photocell DLC Product Listing
