The EiKO Volumetric Troffer LED light fixtures are perfect substitutes for fluorescent troffers in both new and remodeled architectural projects. The VL1 is a reasonably-priced troffer that produces a seamless, dimmable (0-10V standard) light output, making it ideal for a variety of applications including offices, schools, hospitals, government buildings, retail spaces, and other commercial settings.

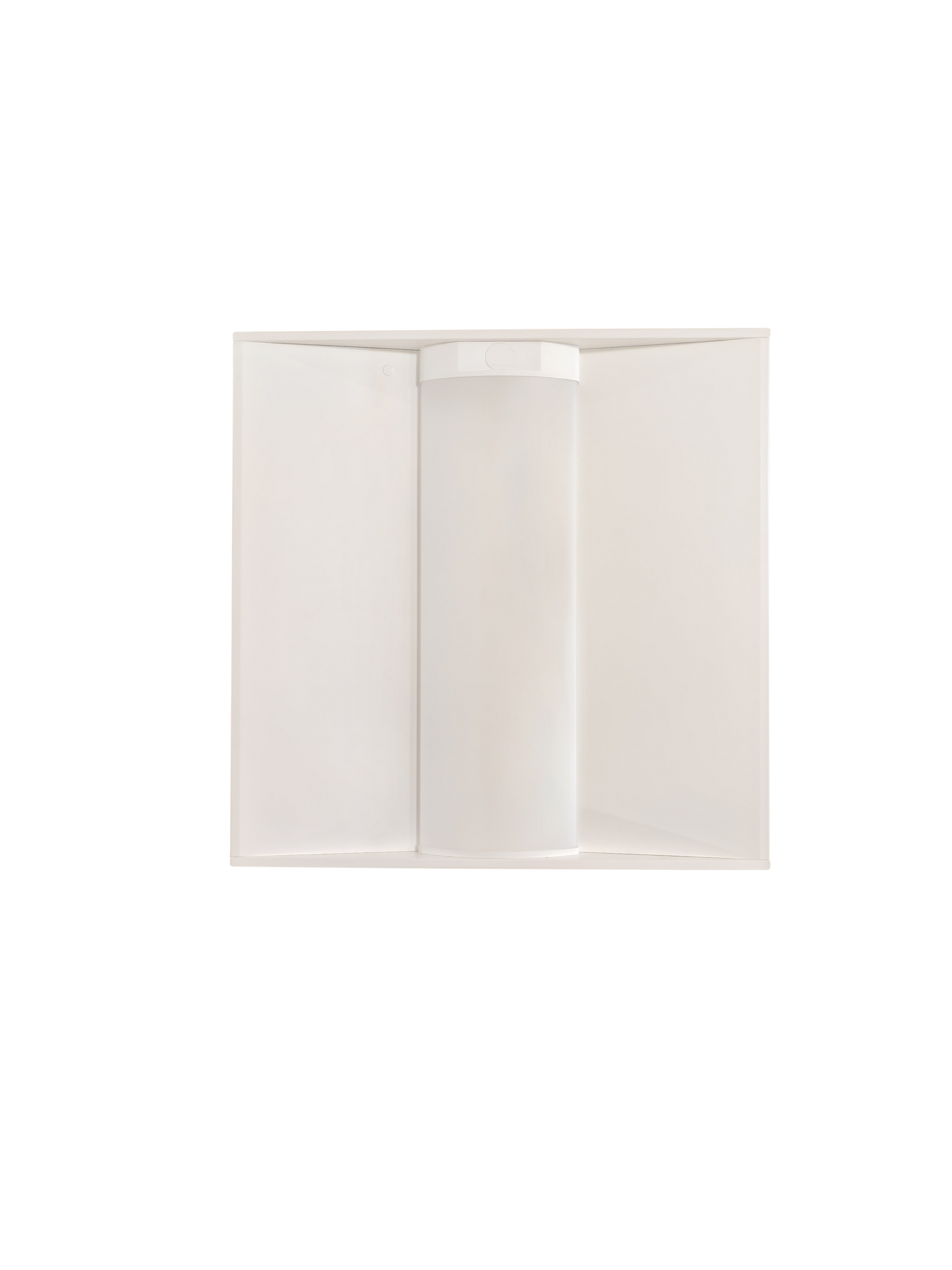

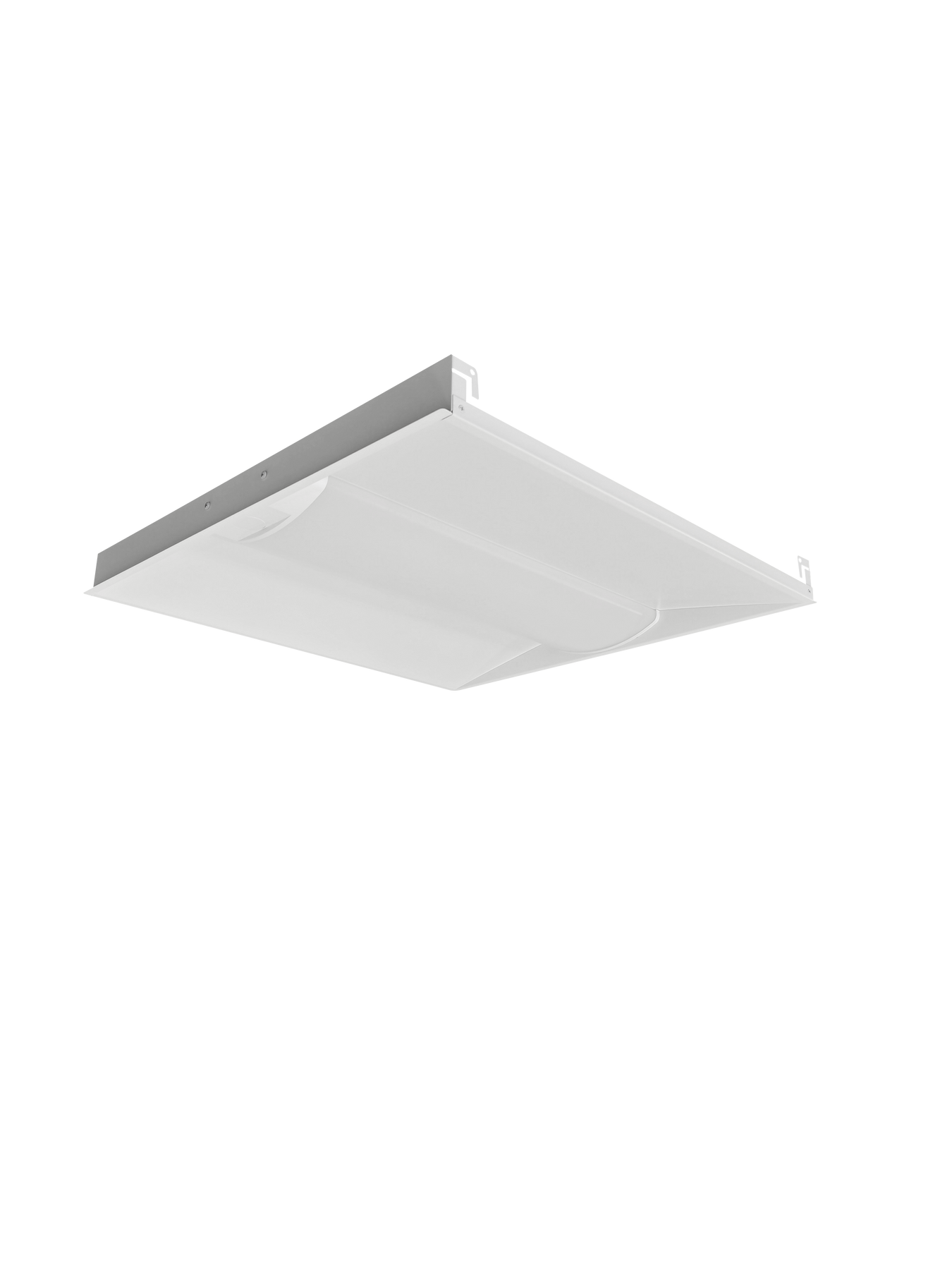

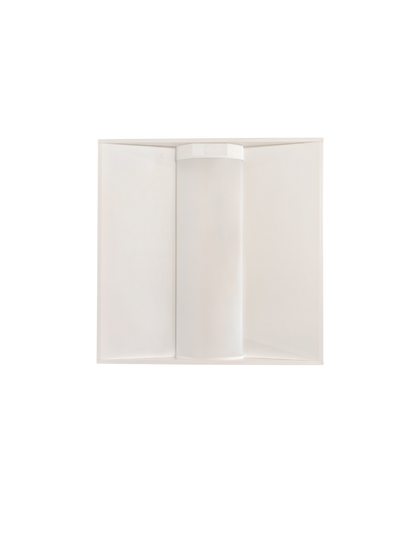

The EiKO VL1-22PS35-FCCT-H 2x2 LED Volumetric troffer is ideal for low depth ceiling cavities in offices or schools. It is wattage selectable and consumes 22/30/35 watts of 120-347 volt energy, with a power factor of 90%. This troffer produces 3,080/4,200/4,900 lumens, depending on the chosen wattage, and has a rated lumen maintenance of 100,000 hours. It also offers color selectability between 3500K bright white, 4000K cool white, and 5000K daylight. These 2x2 lay-in LED light panels are a suitable replacement for 3x 17T8 and 2U31T8 fluorescent equivalents. Additionally, they are DLC Listed, FCC, UL Listed, and RoHS compliant.
The EiKO LED Volumetric Troffer has a white powered-coated steel construction. It comes with a non-yellowing PMMA light diffusing acrylic lens that provides even illumination and visual comfort. The VL1-22PS35-FCCT-H comes with a 5 year limited warranty and an operating temperature of -40°F to 122°F (-40°C to 50°C).
Manufacturer | EiKO |
MPN | VL1-22PS35-FCCT-H |
SKU | 13794 |
UPC | 031293137944 |
Lighting Technology | LED |
Wattage | 26/30/35 Watts |
Voltage | 120-347V |
Color Temperature (Kelvin) | 3500/4000/5000K |
Lumens | 3,080/4,200/4,900 Lumens |
Efficiency (Lumens Per Watt) | 140 LPW |
Dimmable | 0-10V Dimming |
Rated Life | 100,000 Hours |
CRI (Color Rendering Index) | 80 CRI |
Power Factor | >0.9 |
THD (Total Harmonic Distortion) | <20% |
Housing | Steel |
Lens | Acrylic |
Fluorescent Equivalent | 3x17WT8 and 2U31T8 |
Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
Dimensions | 23.9" x 23.8" x 3.1" |
Certifications | DLC Listed, FCC Compliant, RoHS Compliant |
DLC Product ID | S-R2U8EH |
Environment | Damp Location |
Warranty | 5 Year Limited |
