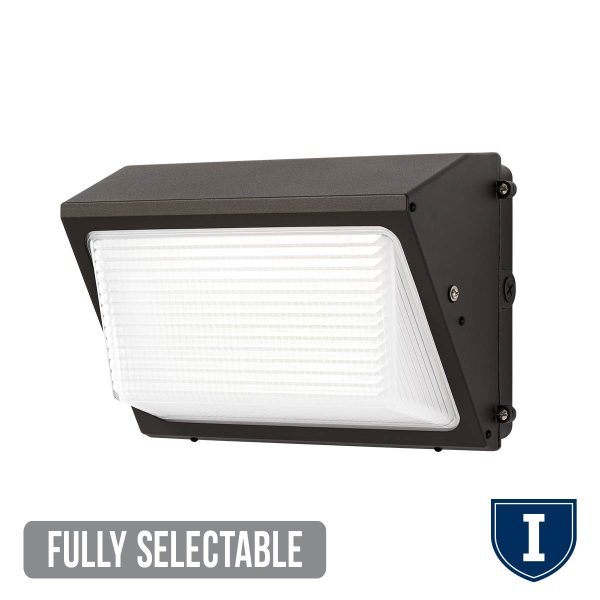

22/44/64/76 Watt Independence Series Made in USA LED Medium Wall Pack 4000K/4500K/5000K

Atlas Lighting SKU: WMS3-10L
Atlas Lighting 22/44/64/76 Watt Independence Series Made in USA LED Medium Wall Pack 4000K/4500K/5000K Selectable Bronze
Atlas Lighting 22/44/64/76 Watt Independence Series Made in USA LED Medium Wall Pack 4000K/4500K/5000K
Atlas Lighting 22/44/64/76 Watt Independence Series Made in USA LED Medium Wall Pack 4000K/4500K/5000K
Atlas Lighting 20/40/60/72 Watt SlimPak Pro Made in USA Large LED Wall Pack 4000K/4500K/5000K

22/44/64/76 Watt Independence Series Made in USA LED Medium Wall Pack 4000K/4500K/5000K

Atlas Lighting SKU: WMS3-10L
  • BAA Compliant, DLC Listed, Made in USA, Wet Location Rated
Regular price $253.86
/
Color Temp
Finish Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

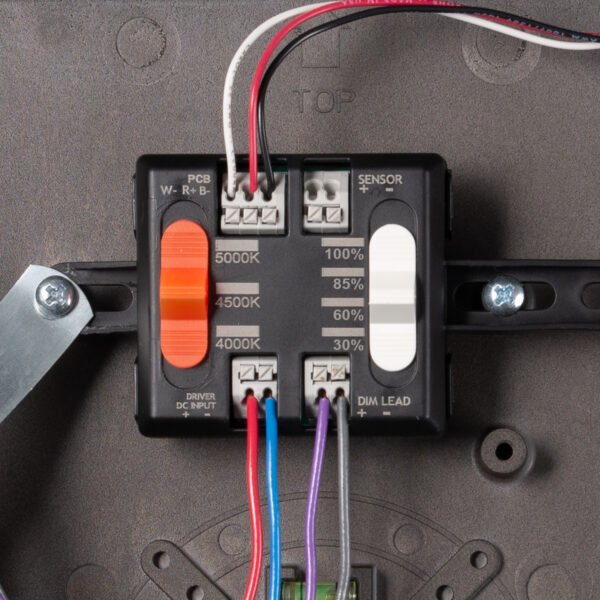

The Atlas Lighting Independence Series LED Medium Wall Pack delivers exceptional versatility by replacing up to 12 standard wall lights with a single fixture. Featuring selectable wattage (22/44/64/76 Watt) and selectable color temperature (4000K, 4500K, 5000K), this fixture simplifies stocking and gives contractors the flexibility to dial in the right output for any application. As a tribute to those who serve, a portion of every Independence Series sale is donated to The Independence Fund, a non-profit dedicated to supporting wounded veterans.

Built around a rugged traditional aluminum die-cast housing, the Independence Series provides proven environmental protection for its LED modules while maintaining a familiar fixture profile that blends seamlessly with existing installations. This design allows facilities to upgrade lighting gradually without disrupting the overall aesthetic. The borosilicate glass lens assembly works in tandem with precisely positioned LED modules to direct light where it is needed most, minimizing glare and maximizing efficiency.

Atlas' Patent Pending Thermal Management System™ features a unique internal design that lowers operating temperatures, resulting in brighter, more stable light output and extended LED and driver life. Installation is straightforward — the fixture retains the same knock-out sizes and positions as previous models, reducing wiring costs and labor time.

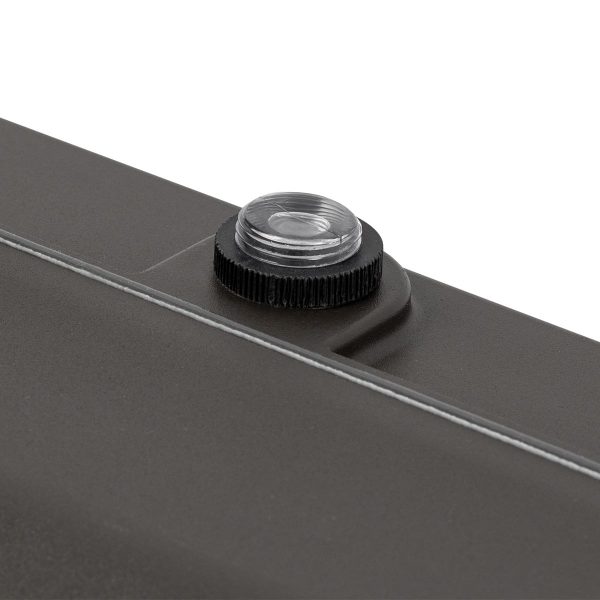

The Independence Series delivers 2,951–10,760 lumens at up to 148 LPW and is capable of replacing up to 400W metal halide. It operates on 120–277V, includes a 120–277V photocontrol, and supports 0–10V dimming for added control. The luminaire is UL/cUL listed for Wet Locations, DLC Listed, and BAA Compliant, and is backed by a 5-year warranty.

Specifications
Manufacturer Atlas Lighting
MPN WMS3-10L
SKU WMS3-10L
UPC 765364037061
DLC Product ID PF5Z4CJ9
Lighting Technology LED
Wattage 22/44/64/76 Watts
Voltage 120-277V
Color Temperature (Kelvin) 4000K/4500K/5000K
Lumens 2,951–10,760 Lumens
Efficiency (Lumens Per Watt) Up to 148 LPW
Dimmable Yes, 0-10V
CRI (Color Rendering Index) 80 CRI
Finish Color Bronze
Housing Die-cast Aluminum
Lens Borosilicate Glass
Metal Halide Equivalent 400 Watts
Dimensions 14.2" L x 7.85" W x 9.02" H
Bug Rating B1-U5-G5
Environment Outdoor, Wet Location Rated
Certifications cULus, BAA Compliant, DLC Listed, Made In USA
Warranty 5 Years



Wattage 22 Watts
Color Temperature (Kelvin) 4000K Cool White 4500K Cool White 5000K Daylight
Lumens 2,951 Lumens 3,072 Lumens 2,956 Lumens
Efficiency (Lumens Per Watt) 137 LPW 142 LPW 137 LPW
Wattage 44 Watts
Color Temperature (Kelvin) 4000K Cool White 4500K Cool White 5000K Daylight
Lumens 6,225 Lumens 6,481 Lumens 6,236 Lumens
Efficiency (Lumens Per Watt) 142 LPW 148 LPW 142 LPW
Wattage 64 Watts
Color Temperature (Kelvin) 4000K Cool White 4500K Cool White 5000K Daylight
Lumens 8,939 Lumens 9,307 Lumens 8,955 Lumens
Efficiency (Lumens Per Watt) 139 LPW 145 LPW 140 LPW
Wattage 76 Watts
Color Temperature (Kelvin) 4000K Cool White 4500K Cool White 5000K Daylight
Lumens 10,335 Lumens 10,760 Lumens 10,354 Lumens
Efficiency (Lumens Per Watt) 136 LPW 147 LPW 136 LPW
