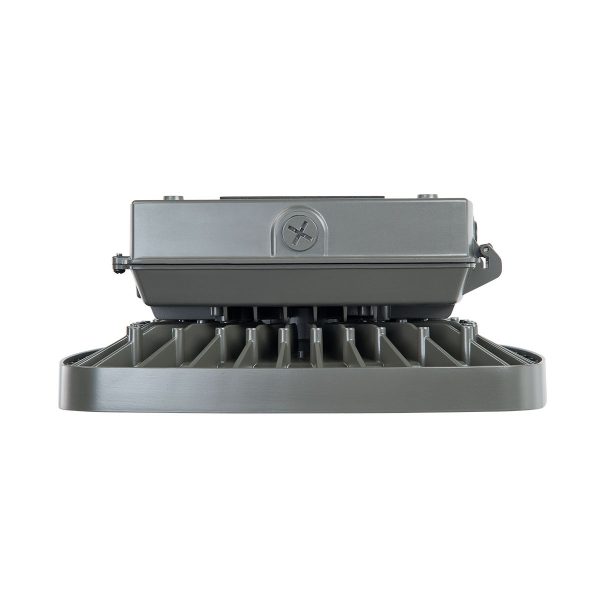

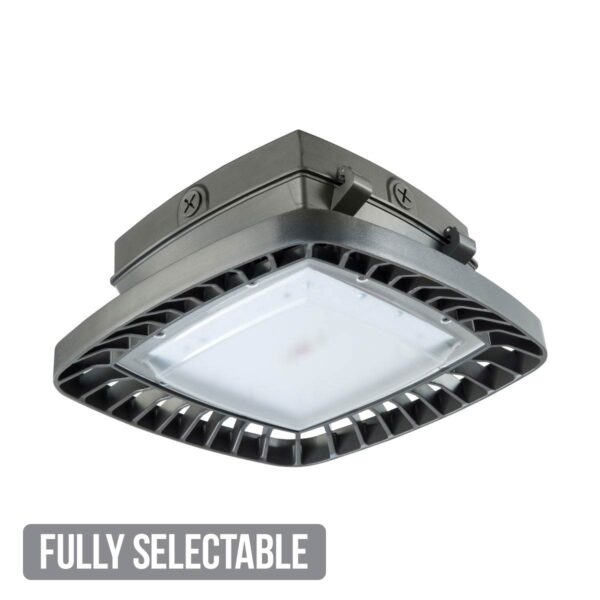

The Atlas Lighting CPMS3-12L is a selectable low-profile LED canopy light designed for demanding commercial and industrial environments. Available in 23W, 46W, 68W, and 82W configurations and compatible with 120–277V power supplies, this fixture delivers high-efficiency illumination with the flexibility to dial in the exact lumen output and color temperature needed for each application — all from a single, easy-to-install platform.
Built for zero-glare performance, the CPMS3-12L leverages the latest high-brightness, high-LED-count technology to maximize usable light output while eliminating visual discomfort. The high-transmission lens achieves 91% efficiency and is engineered to be high-impact and scratch-resistant, protecting the LED array while delivering a wider, smoother, and more uniform light distribution. The hinged housing further simplifies installation by enabling quick access for mounting and wiring, with apertures provided for continuous wiring runs.
Selectable color temperatures of 4000K, 4500K, and 5000K allow on-site customization, while lumen outputs range from 3,213 to 12,002 lumens depending on wattage and CCT selection, with efficacies reaching up to 153 LPW. An 80 CRI rating ensures accurate color rendering, and 0–10V dimming provides precise control for energy management. Atlas's Patent Pending thermal stacking heat removal technology actively draws heat away from the LED modules and internal components, resulting in cooler operating temperatures, sustained output, and an LED lifespan of 200,000+ hours. The fixture is rated for wet locations and carries UL/cUL certification, DLC Premium listing, cULus listing, and BAA compliance, and is Made in the USA. Operating temperature range is –35°C to 50°C, and all Atlas LED luminaires are tested by an independent laboratory in accordance with IESNA LM-79 & LM-80.
Backed by a 5-year warranty, the Atlas CPMS3-12L delivers the versatility, efficiency, and compliance credentials required for commercial and industrial canopy lighting projects.
| Manufacturer | Atlas Lighting | ||
| MPN | CPMS3-12L | ||
| SKU | CPMS3-12L | ||
| UPC | 765364055942 | ||
| DLC Product ID | S-WBE4QP | ||
| Lighting Technology | LED | ||
| Wattage | 23/46/68/82 Watts | ||
| Voltage | 120-277V | ||
| Color Temperature (Kelvin) | 4000K/4500K/5000K | ||
| Lumens | 3,213-12,002 | ||
| Efficiency (Lumens Per Watt) | up to 153 LPW | ||
| Dimmable | 0-10V Dimming | ||
| Rated Life | 200,000 Hours | ||
| CRI (Color Rendering Index) | 80 CRI | ||
| Finish | Bronze | ||
| Housing | Die-Cast Aluminum | ||
| Operating Temperature | Min Start: –35°C Max: 50°C |
||
| Dimensions | 11.90" L x 8.51" W x 4.88" H | ||
| Environment | Wet Location Rated | ||
| Certifications | DLC Premium Listed | ||
| Warranty | 5 Years | ||
| Wattage | 23 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 3,217 Lumens | 3,323 Lumens | 3,213 Lumens |
| Efficacy (lm/W) | 141 LPW | 145 LPW | 140 LPW |
| Wattage | 46 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 6,797 Lumens | 7,020 Lumens | 6,788 Lumens |
| Efficacy (lm/W) | 147 LPW | 152 LPW | 147 LPW |
| Wattage | 68 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 9,867 Lumens | 10,190 Lumens | 9,854 Lumens |
| Efficacy (lm/W) | 145 LPW | 149 LPW | 145 LPW |
| Wattage | 82 Watts | ||
| Color Temperature (Kelvin) | 4000K Cool White | 4500K Cool White | 5000K Daylight |
| Lumens | 11,621 Lumens | 12,002 Lumens | 11,606 Lumens |
| Efficacy (lm/W) | 142 LPW | 153 LPW | 142 LPW |
