Atlas Lighting's economy line of products is designed to provide a highly competitive, lower-cost entry point to LED lighting. The lineup of Fully Selectable Die Cast High Bays offers a range of configurations to meet various high bay application needs. These fixtures feature both selectable lumens and color temperature, reducing stocking complexity and offering added flexibility for contractors.

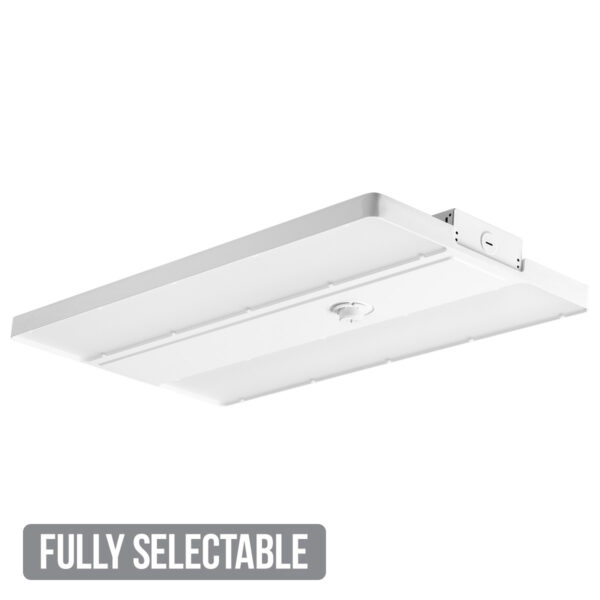

The ORHBS36-48L is a 230/270/320 Watt Selectable, 120-277V Die Cast LED Large High Bay available in 4000K and 5000K color temperatures with an 80 CRI rating. At 4000K, the fixture delivers 36,018/41,502/48,469 lumens at efficacies of 157/154/153 LPW across its three wattage settings. At 5000K, output increases slightly to 37,242/42,703/49,424 lumens with efficacies of 159/156/154 LPW. This fixture is capable of replacing up to 400 or 750 watt Metal Halide luminaires and features 0-10V dimming capability in a white finish.
Built for durability and ease of installation, the housing is constructed from die cast aluminum with a UV stabilized powder coated finish. The fixture comes pre-wired with a control connect port built in, no additional wiring required. Light is distributed through an acrylic resin prismatic lens designed to maximize output and eliminate glare.
The ORHBS36-48L is rated for operating temperatures from -40°C to +50°C (-40°F to +122°F) and delivers long-life performance with 50,000 hours of operation at a minimum of 70% initial output (L70). V-hooks and chain mounting accessories are included for straightforward installation. The luminaire is UL/cUL certified for Damp Locations, DLC Premium Listed, and Title 24 compliant, and is backed by a 5-year warranty. All Atlas LED luminaires are tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards.

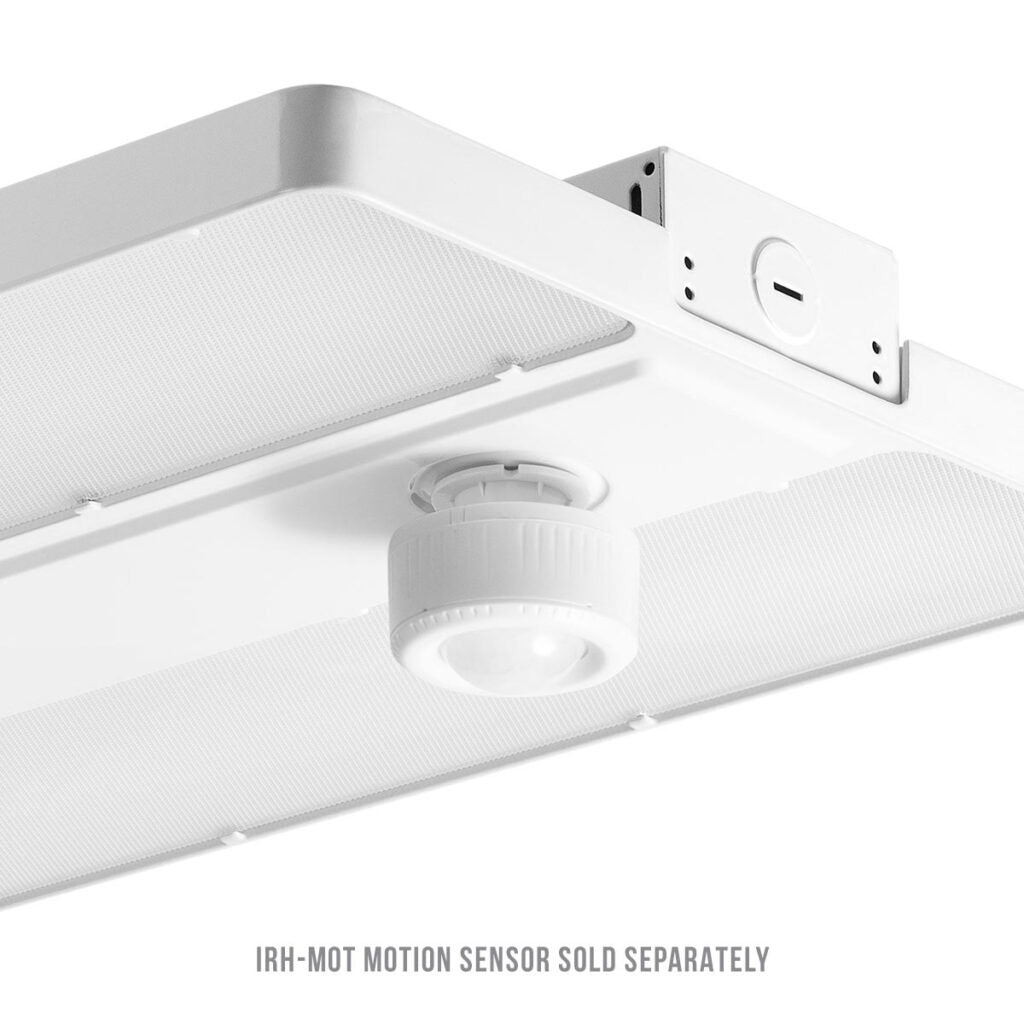

The integrated sensor offers three levels of control - time (3–60 minutes), sensitivity, and dimming (0–75%) - with no remote required. Settings are retained even if power is interrupted. Field installable accessories sold separately include an emergency backup kit (ORHBEM16), Control Connect sensor (IRH-MOT), and AirLink Blue quick control Bluetooth sensor (QCALBMSD35). Note that the Pendant Mount Kit is not compatible with the Emergency Backup Kit or the ORHBS36-48L model.
