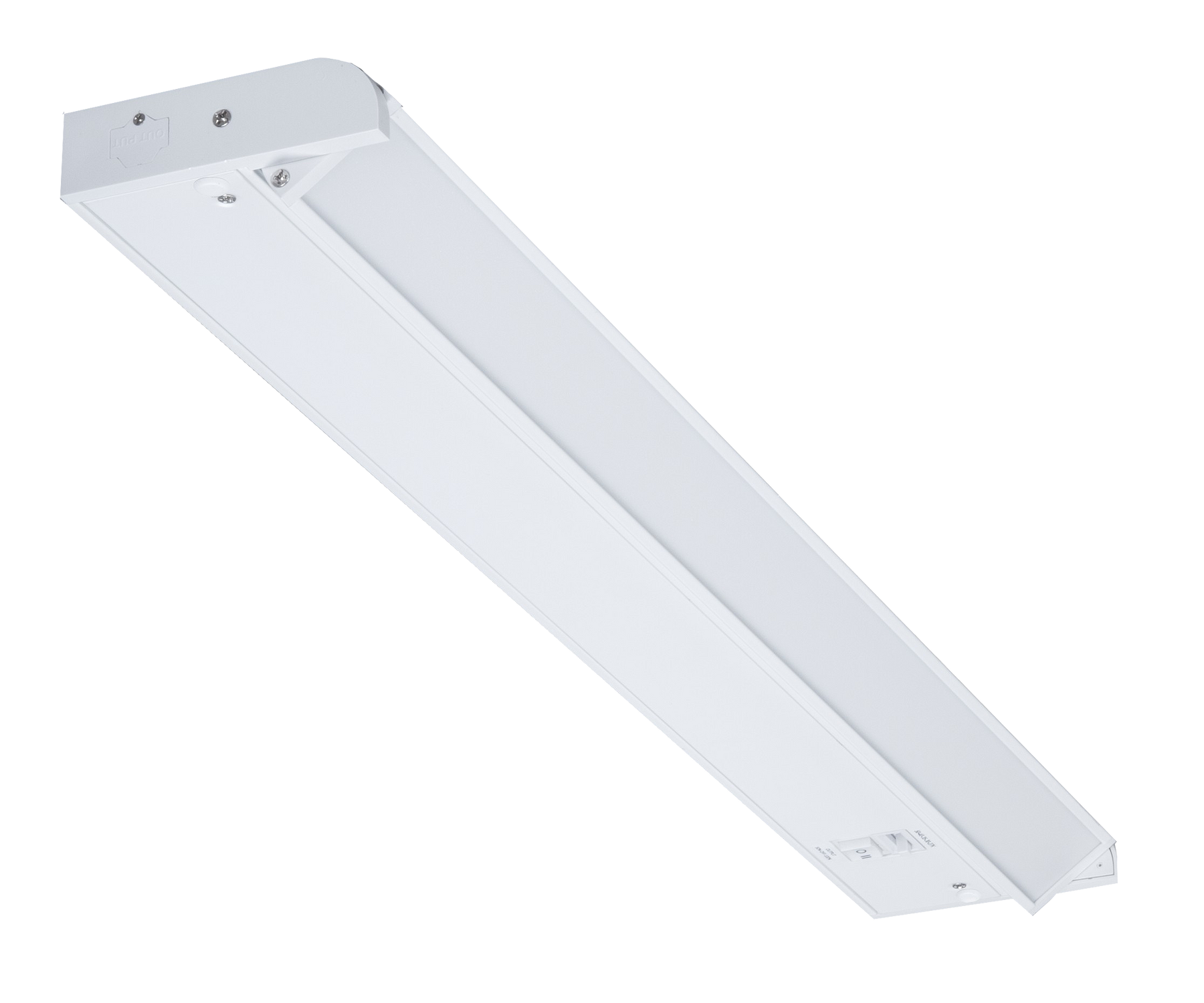

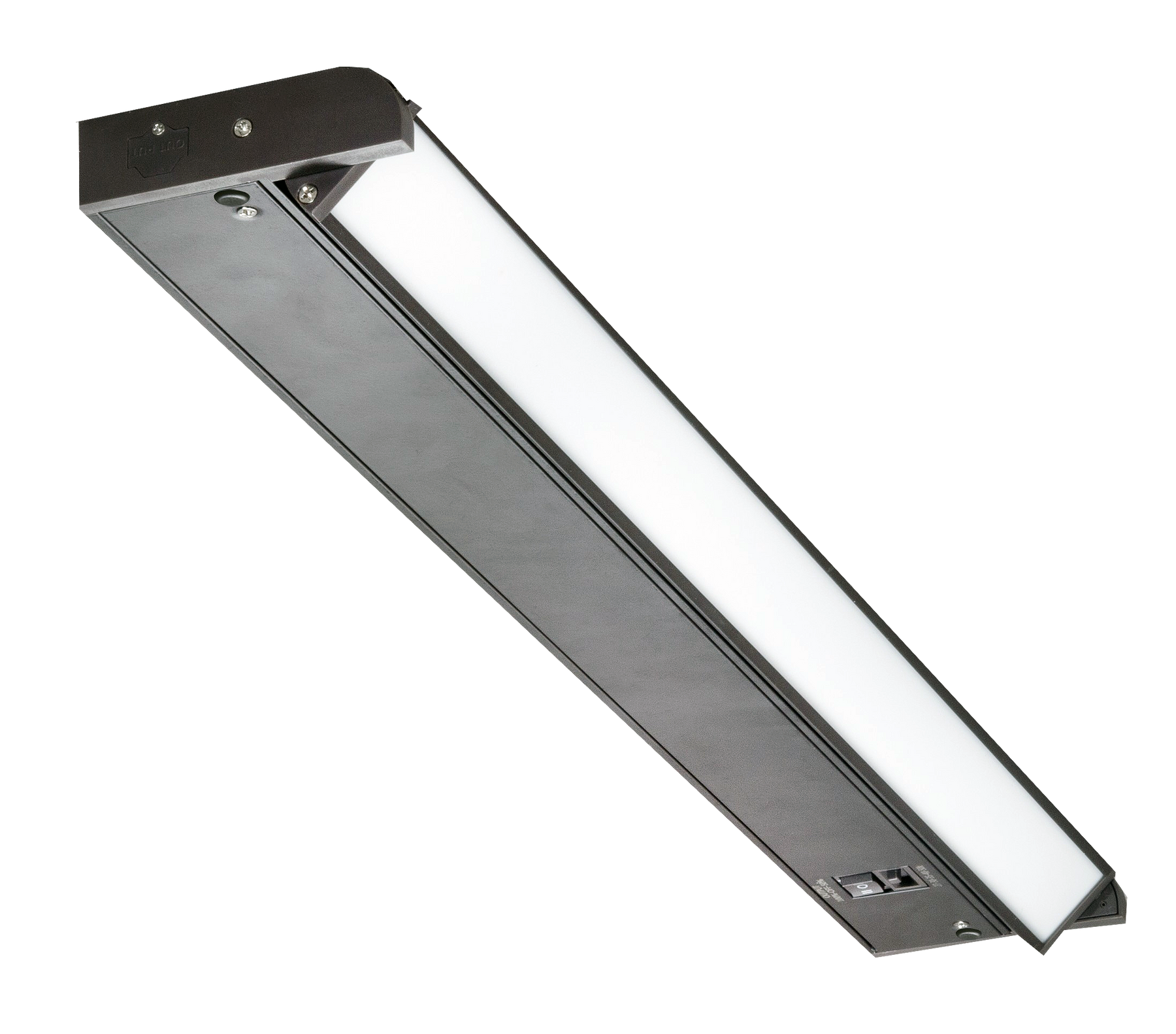

The MaxLite UCL Series 24 inch, 12 watt LED Under Cabinet Light Fixture delivers versatile, high-quality illumination for residential and commercial applications. Available in 10", 16", 24", and 32" lengths and offered in Brown or White finishes, this fixture features field-selectable CCT spanning 2700K, 3000K, 3500K, 4000K, and 5000K (default: 3000K), making it easy to match any environment without swapping fixtures.
Designed for performance and flexibility, the UCL Series offers a high color rendering index of CRI 90, TRIAC dimmability from 20–100% at 120V, and a 50° swivel lens for precise light direction. An adjustable brightness setting of 100% or 50% provides additional control, and the fixture is rated for damp locations with a 50,000 hour rated life (L70) backed by a 5 year limited warranty.
The Brown finish delivers 730/740/760/760/780 lumens at 61/62/64/64/66 lm/W across the five CCT settings, while the White finish provides 850/860/880/880/900 lumens at 70/71/73/73/75 lm/W. Both finishes are ULus Listed, Title 24 JA8 compliant, FCC certified, and RoHS compliant. Order the Brown finish under code 113772 (Item # UCL24-12CSBN) or the White finish under code 113773 (Item # UCL24-12CSWH).
Note: Up to 20 fixtures may be connected together, not to exceed 320W total connected load. For compatible dimmers, please see the specification sheet.
Accessories (Sold Separately) include: Junction Box (Brown & White), 9-inch Linking Cable (Brown & White), Male-Female Connector in White only, and 6-foot Power Cord (Brown & White).
Included in Box:
1. Fixture (1)
2. Male-to-Female Linking Cord (1)
3. End-to-End Connector (1)
4. Strain Relief Connector (1)
5. Mounting Screws (2)
6. Mounting Hole Plugs (2)
7. Removal Tool (1)
