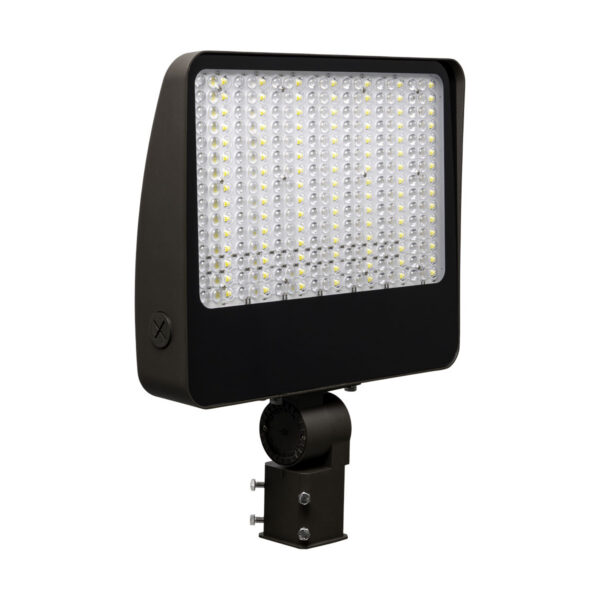

The Atlas Lighting FCXLF40-57L field-configurable extra large LED flood light offers adjustable illumination for commercial and industrial applications. Select from 270, 330 and 390 watts and 3000K, 4000K, 4500K or 5000K color temperatures to suit your installation. Operating on 120–277V, this compact fixture delivers 39,032–59,363 lumens with an efficacy range of 140–157 lumens per watt and an 80 CRI. This fixture replaces up to a 1,000 watt metal halide lamp.

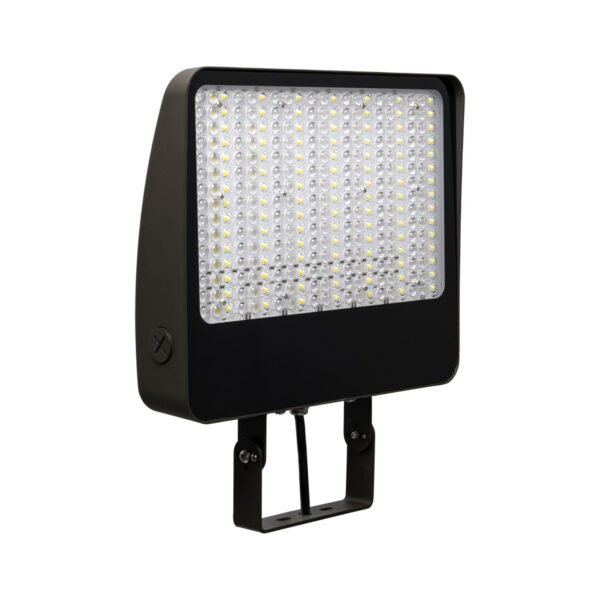

A die-cast aluminum housing helps maintain cooler operating temperatures to support light output and LED longevity. Both knuckle and trunnion mounts are included, providing installation flexibility. The injection-molded acrylic optic offers NEMA 7x6, 6x6, and 5x5 flood distributions, allowing the light pattern to be configured for the application.
Featuring 0–10V dimming and an internal on/off photocontrol, the FCXLF40-57L supports adjustable light levels and automatic light control. Long-life LEDs provide 100,000 hours of operation while maintaining at least 70% of initial light output (L70). The fixture operates in temperatures from -40°C to +50°C (-40°F to +122°F), is certified to UL/cUL standards for wet locations, carries an IP65 rating, and is DLC Premium Listed. A five-year warranty provides added peace of mind.
The fixture measures 16.99 inches long by 3.79 inches wide by 14.20" high, with an overall height of 21.49 inches with the slipfitter mount or 19.57 inches with the trunnion mount.
