2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K

Satco SKU: 65-1321
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K
Satco 2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K

2X2 20/30/40 Watt Selectable Flat Panel Troffer Retrofit Door Kit 3500/4000/5000K

Satco SKU: 65-1321
  • Damp Location Rated, DLC Listed
/
Color Temp
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

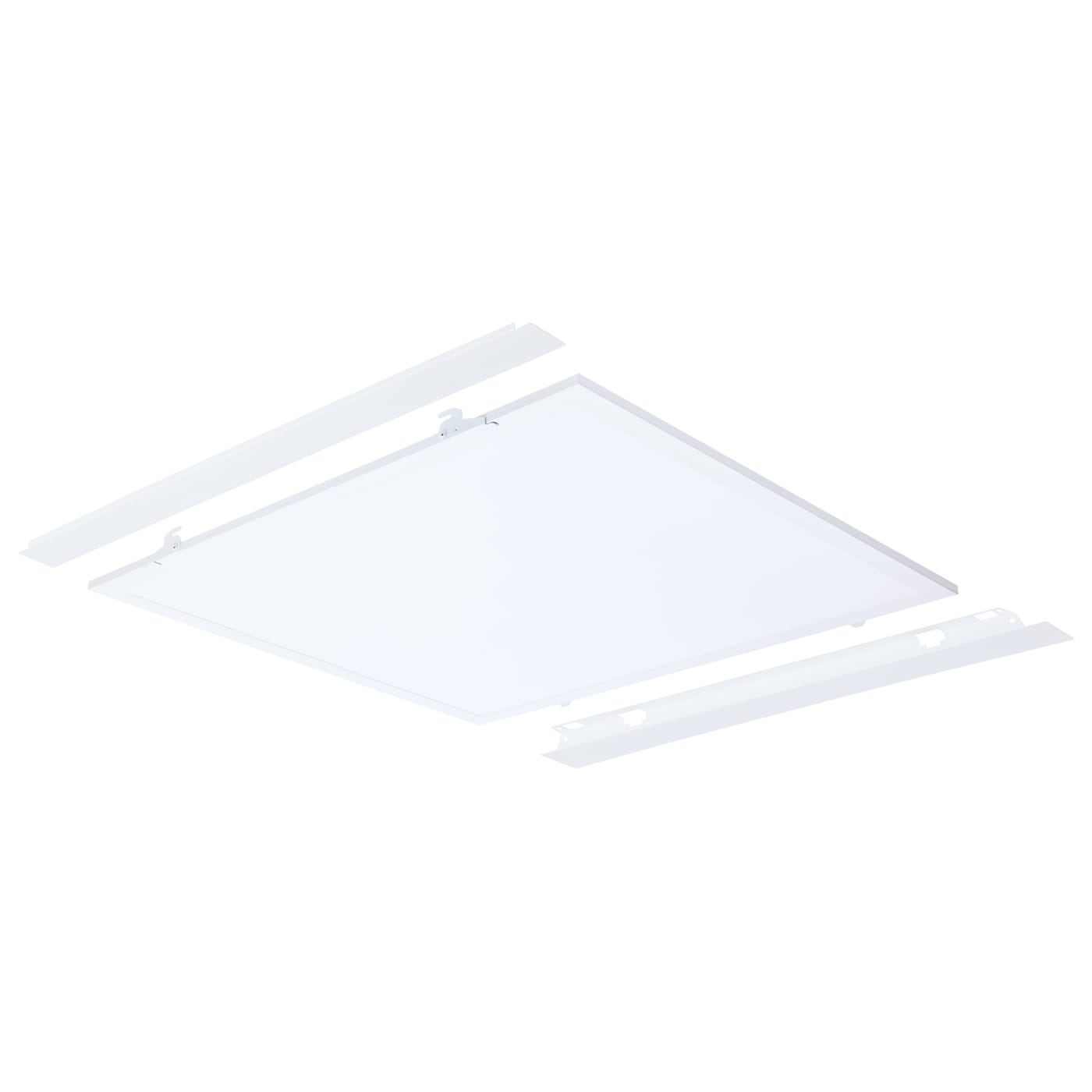

SATCO|NUVO’s Flat Panel Troffer Retrofit Door Kits provide a streamlined solution for upgrading existing troffers with modern, energy-efficient LED performance. Available in 1x4, 2x2, and 2x4 sizes, these retrofit kits are designed to fit a range of applications while eliminating the need to replace the entire fixture. By utilizing the existing housing, they help reduce material waste and simplify upgrades. Selectable wattage and CCT (3500K/4000K/5000K) allow installers to tailor light output and color temperature on-site, while 0-10V dimming ensures additional control. The durable steel housing with an aluminum trim delivers strength with a clean, finished appearance. A built-in safety tether supports the door during installation, simplifying wiring access.

he SATCO|NUVO 2’x2’ troffer retrofit (65-1321) has 20/30/40 Selectable Watts providing 2200/3300/4400 Lumens of 120-277V light.  With a 50,000- hour lifespan and a 5-year warranty, these kits provide reliable, long-term performance while meeting stringent DLC efficacy standards.

Specifications
Manufacturer Satco
MPN 65-1321
SKU 65-1321
UPC 045923411397
Lighting Technology LED
Wattage 20/30/40 Watt
Voltage 120-277V
Color Temperature (Kelvin) 3500/4000/5000K
Lumens 2200/3300/4400 Lumens
Efficiency (Lumens Per Watt) 110 LPW
Frequency 50/60Hz
Dimmable Yes, 0-10 Dimmable
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Finish White
Housing Steel
Lens Frosted Ploycarbonate
DLC Product ID S-MB7ZBP
Fluorescent Equivalent 3 X 17W T8
Operating Temperature -20C (-4F) to +40C (+104F)
Dimensions 25.35 L x 31.31" W x 2.68" H
Certifications FCC, RoHS, DLC
Environment Damp Location Rated
Warranty 5 Year Warranty
Documents

Satco Flat Panel Troffer Retrofit Door Kit Specification Sheet

Satco Flat Panel Troffer Retrofit Door Kit Installation Instructions

Satco Flat Panel Troffer Retrofit Door Kit DLC Product ID
