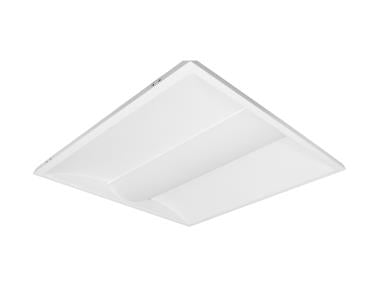

2x2 21/25/30 Watt Single Basket LED ArcMax Troffer 3500/4000/5000K 2 Pack

MaxLite SKU: 111015
MaxLite 2x2 21/25/30 Watt Single Basket LED ArcMax Troffer 3500/4000/5000K 2 Pack Selectable

2x2 21/25/30 Watt Single Basket LED ArcMax Troffer 3500/4000/5000K 2 Pack

MaxLite SKU: 111015
  • DLC Listed
Regular price $112.98
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

**This is sold in a 2 pack**

MaxLite’s new ArcMax Troffer Value series LED fixture delivers an incredible performance at an affordable price as a LED Lay-in troffer replacement for fluorescent troffers in new or remodel construction. These DLC premium listed fixtures come with 3 Wattage and 3 CCTs that are field selectable providing the maximum flexibility for distributors and contractors. With a high reflectance finish and frosted lens providing a low glare distribution, this product is ideal for office, education, health care, hospitality and retail interiors.

The DLC Listed, MaxLite TV22D21WCS2P (111015) is a single basket LED retrofit light fixture that can be configured to consume either 21, 25, or 30 watts of energy and operates on 120-277 volts. With a 50,000 hour rated lumen maintenance of L70 lumen depreciation, these fixtures generate between 2,625-3,750 lumens (125 lumens per watt) and have a high color rendering index of 80. You can choose from three color temperatures: 3500K bright white, 4000K cool white, or 5000K daylight. Additionally, these fixtures feature a 0-10V dimmable configuration and come with a 5 year warranty from MaxLite.

Manufacturer MaxLite
MPN TV22D21WCS2P
SKU 111015
UPC 767627057205
Lighting Technology LED
Voltage 120-277VAC
Wattage 21/25/30 Watts
Lumens 2,625/3,125/3,750 Lumens
Efficiency (Lumens Per Watt) 125 LPW
Color Temperature (Kelvin) 3500K/4000K/5000K
Dimmable Yes, 0-10V Dimming
Beam Angle 112 LPW
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.90
Housing Steel
Lens Polypropylene
Operating Temperature -13°F to 113°F (-25°C to 45°C)
Dimensions 23.74" L x 23.74" W x 3.37" H
Certifications DLC Listed, FCC Compliant, RoHs Compliant
DLC Product ID S-6W3LDQ
Environment Damp Locations
Warranty 5 Year Standard
