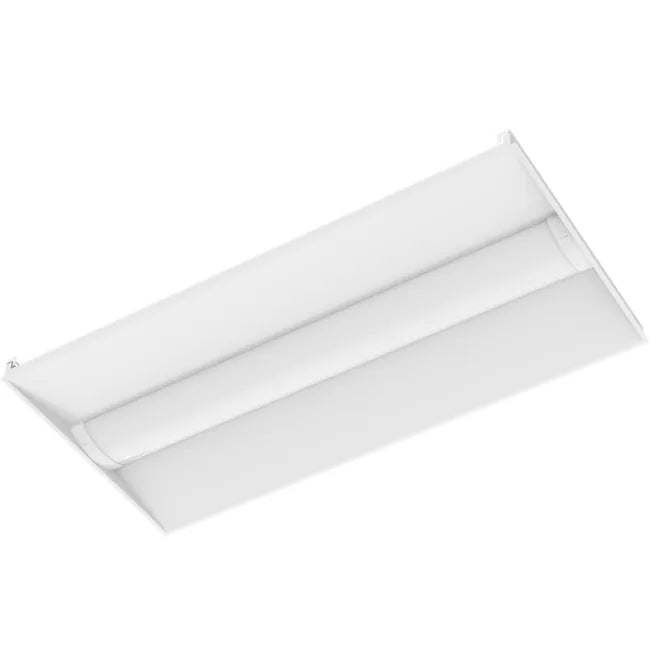

Halco's Center Basket Troffer is a family of sleek, modern LED troffers and retrofit kits designed for new construction, remodel and retrofit recessed ceiling applications. The frosted acrylic center basket design can fully illuminate the floor and walls of a room while still minimizing fixture glare. Removeable end caps conceal a 3.5mm receptacle mounting location for integrated sensor fixture control at one end and an optional emergency battery pack test button on the other end. The retrofit kits can be used to easily and quickly convert most standard fluorescent parabolic, troffer and panel fixtures to an energy efficient, controls ready luminaire.

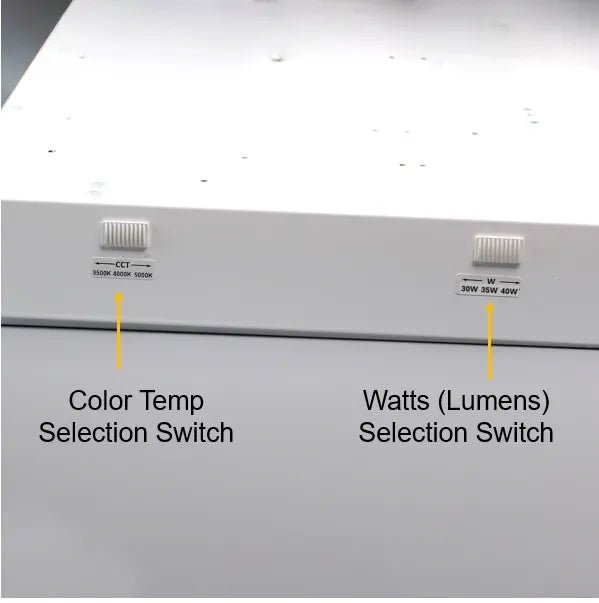

The Halco CBT-24-LS-CS-UNV 2x4 controls-ready center basket troffer features field-selectable wattages (30W/35W/40W) and color temperatures (3500K/4000K/5000K), making it easy to adapt on-site to a wide range of applications. With high-efficiency performance at 125 lm/W, 0-10V dimming capability, and DLC Premium listed, it’s the ideal choice for offices, schools, and commercial spaces where quality and flexibility are key. Backed by a 5-year warranty, it’s a solution you can count on.
| Manufacturer | Halco Lighting Technologies |
| MPN | CBT-24-LS-CS-UNV |
| SKU | 81800 |
| UPC | 807154818006 |
| Lighting Technology | LED |
| Wattage | Selectable 30/35/40 Watts |
| Color Temperature (Kelvin) | Selectable 3500K, 4000K or 5000K |
| Lumens | 4000 - 5000 Lumens |
| Efficiency (Lumens Per Watt) | 125 lm/W |
| Voltage | 120-277 V |
| Dimmable | 0-10V |
| Rated Life | 50,000 Hours |
| CRI (Color Rendering Index) | 80 CRI |
| Power Factor | 0.9 |
| Finish | White |
| Housing | Steel/Aluminum |
| Lens | Frosted Acrylic |
| Operating Temperature | -25°C to 45°C |
| Dimensions | 23-13/16" L x 47-13/16" W x 2" H |
| Certifications | DLC Premium Listed, cULus, FCC, IC Rated |
| DLC Product ID | S-93P1NW |
| Environment | Damp or Dry Location |
| Warranty | 5 Years |
