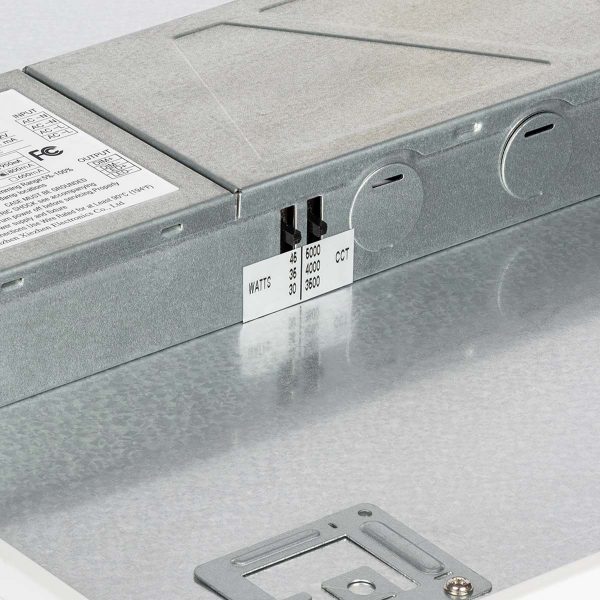

The Atlas Lighting FAELP24LEDU is a 2x4 LED Edge Lit Flat Panel designed for versatile commercial and institutional applications, offering field-adjustable wattage (30, 35, or 45 Watt) and selectable color temperature (3500K, 4000K, or 5000K) so a single fixture can be configured on-site to meet the exact needs of any space. Field-adjustable lumen output ranges from 3,000 to 5,000 lumens, delivering a lumen efficacy that scales with the selected wattage. The panel features an 80 CRI rating and a 120° beam angle, producing broad, even illumination ideal for offices, classrooms, healthcare facilities, and retail environments. It replaces up to (4) F32-T8 fluorescent lamps, making it an efficient drop-in upgrade for existing troffer installations.
Built for durability, the FAELP24LEDU features heavy-duty cold rolled steel construction with a metal back panel and wiring compartment, while the frame is crafted from post-painted white aluminum for a clean, professional appearance. Atlas Edge Lit technology paired with a frosted white lens diffuses light uniformly across the panel face, eliminating hotspots and providing excellent visual comfort. The fixture operates on universal 120–277V AC voltage (50–60Hz) and includes standard 0–10V dimming capability, a power factor greater than 90%, and total harmonic distortion below 20%. It is rated for ambient temperatures from -13°F to 113°F (-25°C to 45°C), making it suitable for a wide range of installation environments.
Long-life LEDs deliver a rated lifespan of 50,000 hours at L70, ensuring reliable, low-maintenance performance over the life of the installation. The FAELP24LEDU is ETL certified to UL standards for Damp Locations and is DLC Listed, qualifying it for utility rebate programs. All Atlas LED luminaires are tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards. Installation is straightforward for both new construction and retrofit projects; surface mount and suspension mount accessories are available and ordered separately. A factory-installed Emergency Back-Up version is available as a special order, please contact us for details. The fixture is backed by a 5 year warranty.
