Day-Brite/CFI FluxPanel Selectable (SBP) is a highly versatile luminaire designed to provide three lumen and three CCT packages per size. Available for use in recessed, suspended, and surface mount applications, the SBP is a versatile luminaire that is ideal for general lighting applications such as open office, schools, healthcare, and retail.

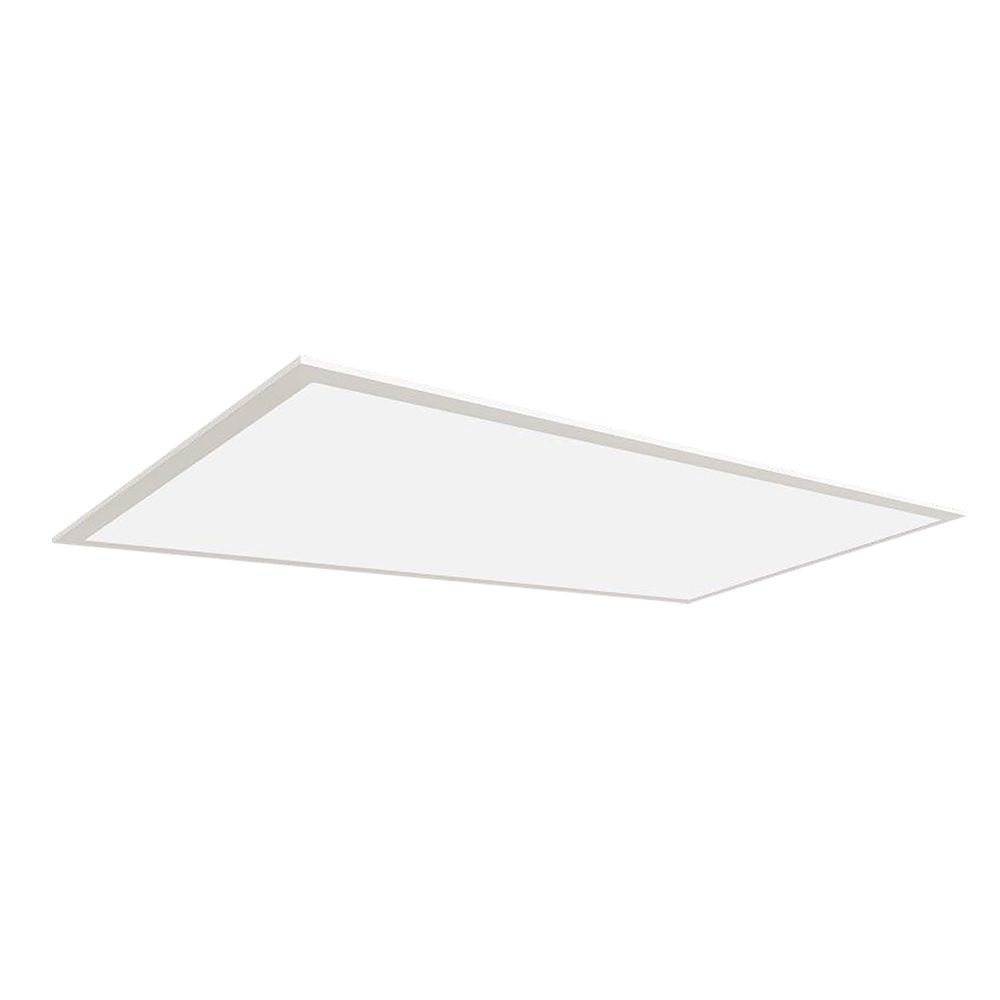

This 2x4 Back Lit LED Flat Panel operates at 30/41/52 Watts across a universal 120-277V input and offers selectable color temperatures of 3500K, 4000K, and 5000K. It delivers nominal lumen outputs of 3900, 5500, and 6700 respectively, with 80 CRI and 0-10V dimming capability. The Day-Brite CFI part number is 2SBP3050L8CS-4-UNV-DIM.
The overall luminaire is 1-1/2" deep including the driver box, providing minimal intrusion into the plenum space. The die-formed driver box features a standard access plate for ease of wiring and offers tool-free access to drivers from above. Integral clips accommodate definitive attachment to T-bar grid for recessed applications, and even light distribution across the lens ensures exceptionally low glare, minimizing distractions at the ceiling plane.
Designed for use with standard Grid (NEMA "G") or Narrow Grid (NEMA "NFG") ceiling T-bars. Drywall or plaster applications require use with the FMA "F" mounting frame accessory, sold and shipped separately. The fixture carries a 5-year warranty and holds certifications including DLC Premium, IC Rated, NSF, RoHS, and cULus.
Field installable accessories sold separately include an Emergency Driver Kit, 2x4 Mounting Frame, Selectable Suspension Kit (with and without power), and a 2x4 Surface Mount Kit.
