Dyna-Tite CL12WC3SK (Rize KL100SK) 3/32 Inch Galvanized Wire Rope Starter Kit With Counter

Duro Dyne SKU: 30394
Duro Dyne Dyna-Tite CL12WC3SK (Rize KL100SK) 3/32 Inch Galvanized Wire Rope Starter Kit With Counter

Dyna-Tite CL12WC3SK (Rize KL100SK) 3/32 Inch Galvanized Wire Rope Starter Kit With Counter

Duro Dyne SKU: 30394
Regular price $536.93
/
Length
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your greenĀ® since 2007!

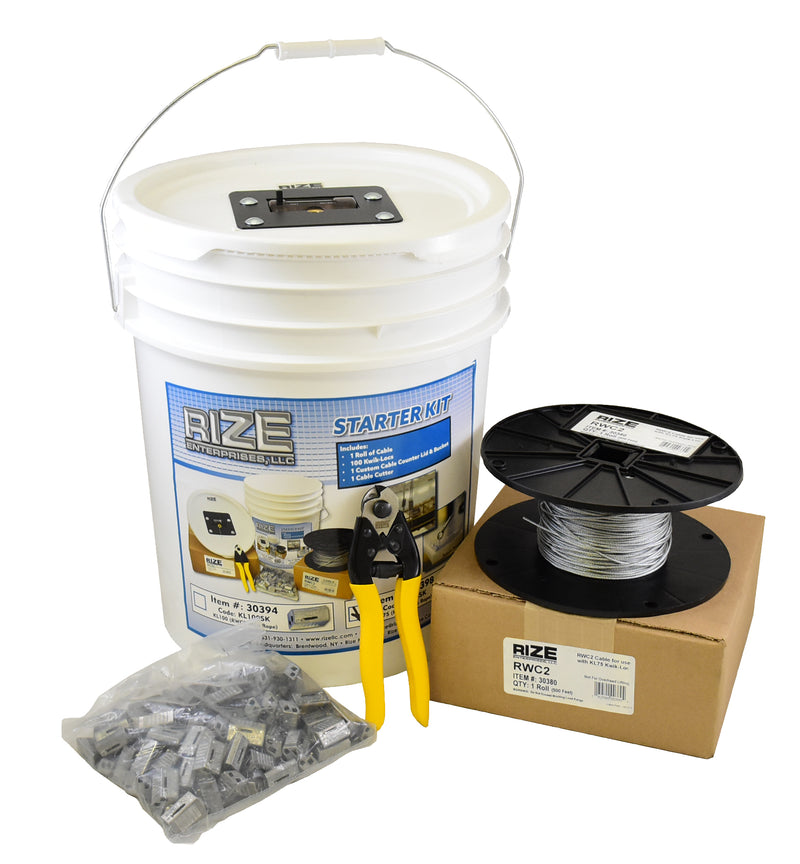

Kit Includes:
1 - 500ft Roll of WC3 (RWC3) Cable
100 - CL12-WC3 (KL100) Kwik-Locs
1 - Cable Counter Lid & Bucket
1 - Cable Cutter

This Rize cable hanger kit includes CL12-WC3 (KL100) Kwik-Loc cable locks. Introduced to work on most light hanging applications, the CL12-WC3 (KL100) can be used to hang fluorescent fixtures, speakers, busbar and cable tray, to name a few. The CL12-WC3 (KL100) has a one piece die cast Zinc type Zamac 5 housing combining major anti-corrosion properties with strength and consistent manufacturing quality. The key components to this revolutionary cable lock are the internal locking wedges. An oil impregnated, sintered steel locking wedge is seated in each of the two channels.

Both wedges incorporate a release pin for easy adjustment. Each wedge makes contact with the wire rope using serrated teeth. These teeth press onto the wire rope and spread the load across the length of the wedge, maximizing grip strength. Each spring within each CL12-WC3 (KL100) is manufactured of type 302 S26 stainless steel. Now you see why we call this a quality, revolutionary product!

Also included in this "starter" kit is 500 feet of 3/32 inch diameter (+.012/-.006 inch tolerance) 7x7 strand galvanized steel. The galvanized steel wire rope, supplied by Duro Dyne, is manufactured to exacting standards and statistically tested to verify the breaking strength. A high quality wire rope cable cutter is included as is the wire counter, which is securely mounted in the lid of the handy, portable five gallon bucket.

MANUFACTURER'S RECOMMENDATIONS:
DO NOT USE FOR LOADS OUTSIDE THE STATED RANGE OF THE PRODUCT. DO NOT EXCEED THE SAFE WORKING LOAD OF THE PRODUCT. DO NOT USE ON COATED WIRE ROPE. DO NOT APPLY PAINT OR OTHER COATING. DO NOT APPLY LUBRICANT. DO NOT USE FOR LIFTING. KEEP THE PRODUCT CLEAN AND FREE FROM DIRT. REMOVE DAMAGED CABLE END PRIOR TO INSERTING INTO THE CABLE LOCK. DO NOT USE IN CHLORINATED ATMOSPHERES. CABLE LOCKS ARE TO BE USED ON STATIC LOAD APPLICATIONS ONLY.

Manufacturer Duro Dyne (Rize Enterprises)
MPN CL12WC3SK (KL100SK)
SKU 30394 (R030394)
UPC 797582123943 (182590003941)
Cable Lock Compatibility CL12-WC3 (KL100)
Wire Rope Diameter 3/32 Inch
Wire Rope Length 500 Feet
Wire Rope Tolerance +0.012/-0.006
Wire Rope Construction 7x7
Wire Rope Min Breaking Strength 920lbs
Safe Working Load 25-150 lbs (12-68 kg)
