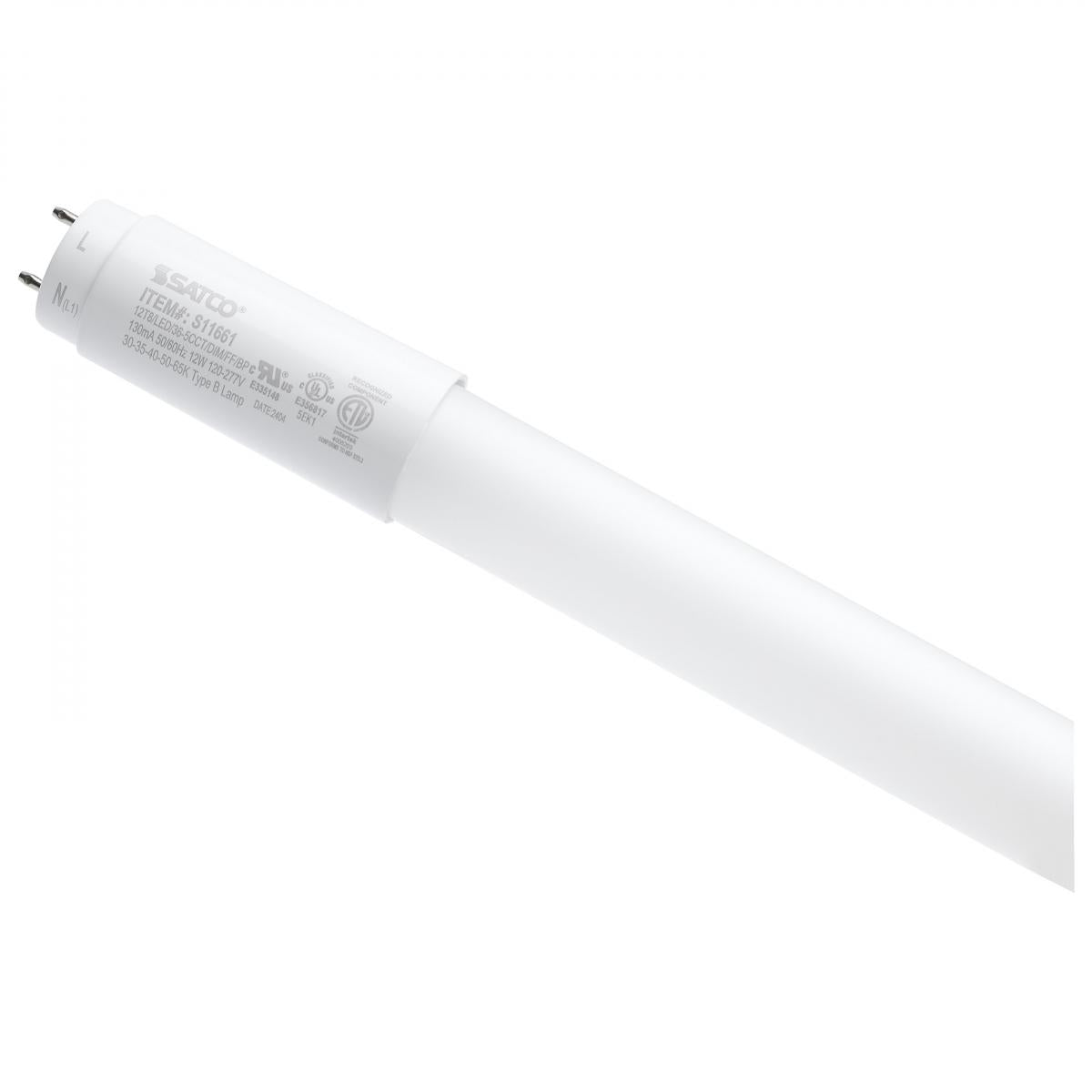

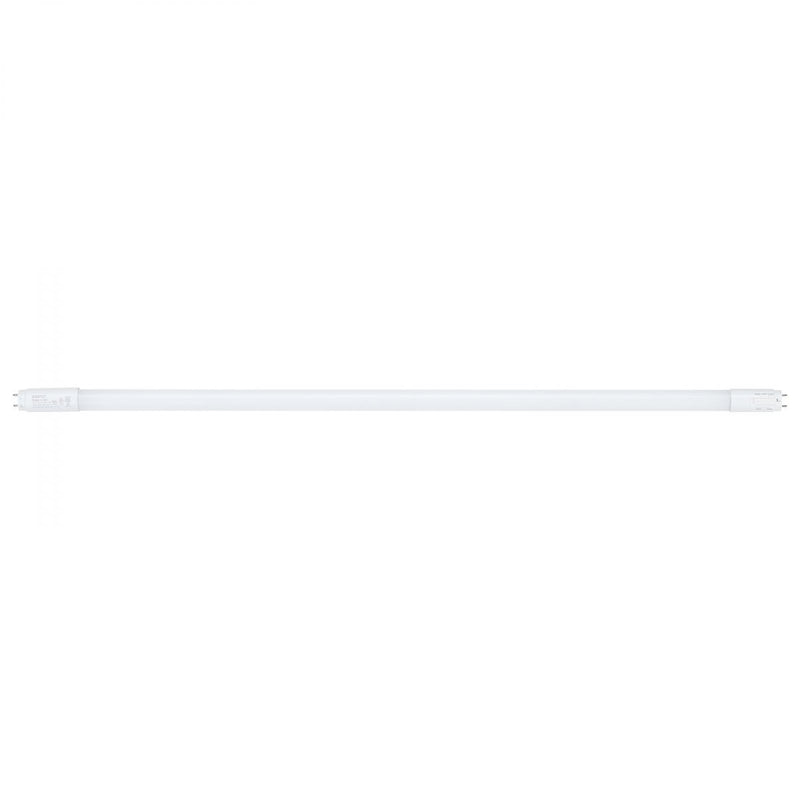

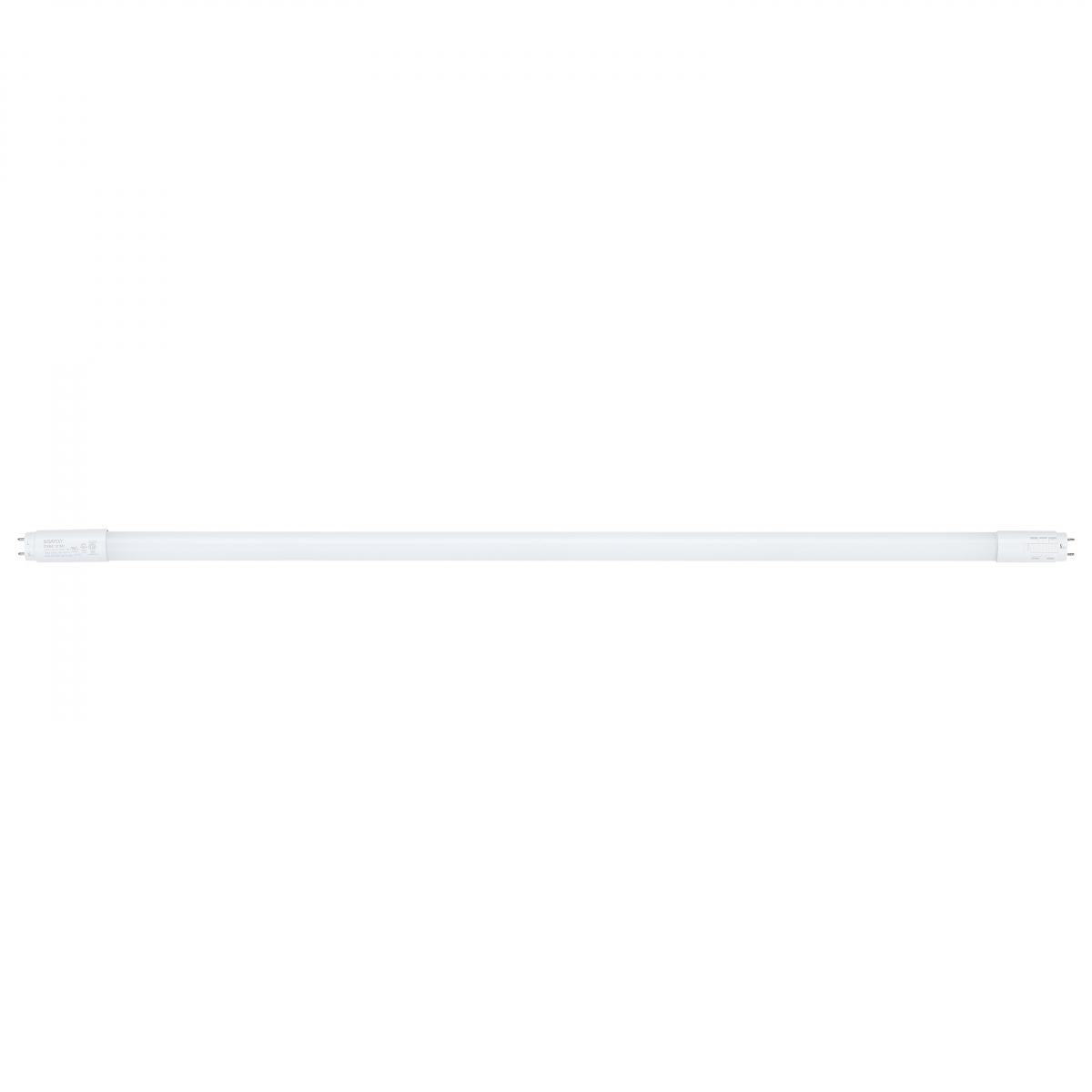

3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

Satco SKU: S11661
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K
Satco 3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

3 Foot 12 Watt LED Color Selectable T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

Satco SKU: S11661
  • DLC Listed, NSF Listed
/
Color Temp
Please call to confirm availability.
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

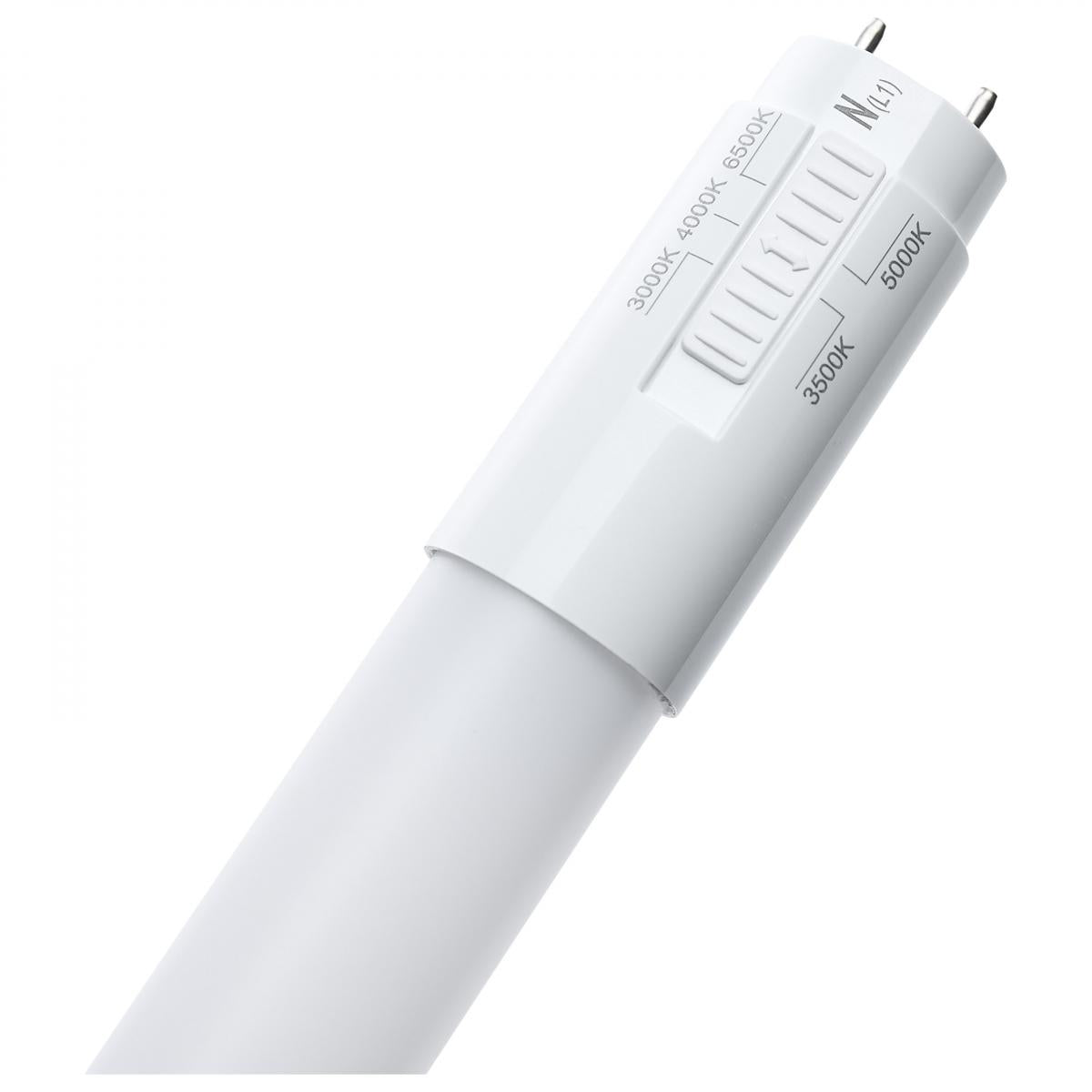

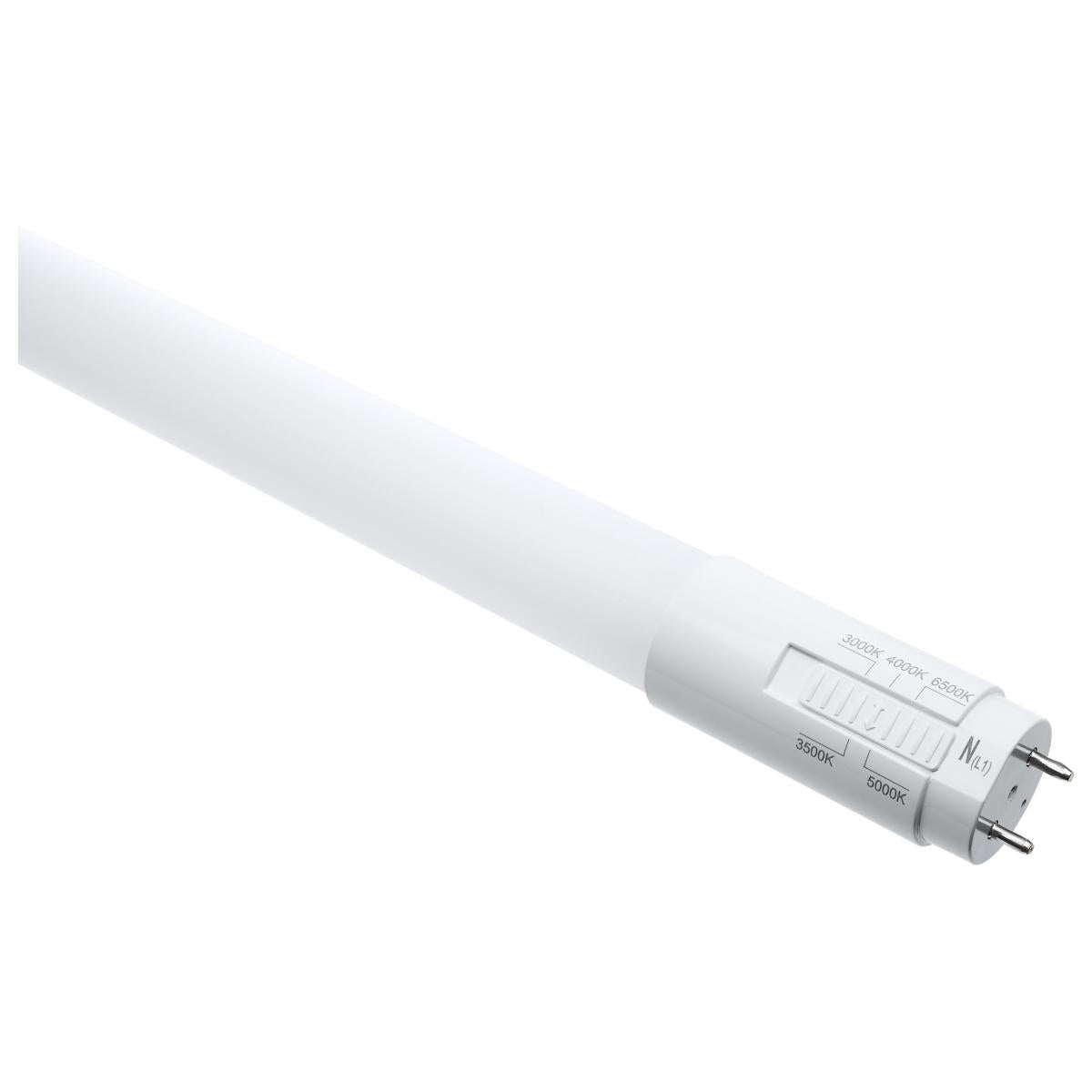

Satco’s LED Flicker-Free Lamps offer smooth, continuous light with less than 2% flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extending the versatility of these lamps, they are 120V-277V range voltage compatible in ballast bypass configurations, and allow for five CCT selection at the time of installation to customize the light output to the environment.

This item is the Satco part number S11661 (12T8/LED/36-5CCT/DIM/FF/BP). Each S11661 lamp consumes just 12 watts of 120-277V input power - saving you 40% in energy costs! These T8 fluorescent to LED retrofit bulbs have a 160 degree beam angle, generating between 1,450-1,550 lumens - That's an awesome 120-129 lumens per watt of 83 CRI light. They are dimmable, measuring 1.0" diameter by 35.24" in Maximum Overall Length (MOL) and are DLC Listed. The Satco S11661 tube has a 50,000-hour lifetime and they carry a five year warranty.

Manufacturer Satco
MPN 12T8/LED/36-5CCT/DIM/FF/BP
SKU S11661
UPC 045923116612
Lighting Technology LED
Wattage 12 Watts
Voltage 120-277V
Frequency 50/60Hz
Color Temperature (Kelvin) 3000/3500/4000/5000/6500K
Lumens 1,450/1,500/1,550/1,550/1,500 Lumens
Efficiency (Lumens Per Watt)
 120/125/129 LPW
Ballast Operation Type B Ballast Bypass
Bulb Shape T8
Base G13 Medium Bi-Pin
Dimmable Yes, TRIAC Dimming (120V Only)
Lens PET Coated Shatterproof Frosted Glass
Beam Angle 160 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 83 CRI
Power Factor 0.9
THD (Total Harmonic Distortion) <20%
Fluorescent Equivalent 25 Watts
Operating Temperature -20°C (-4°F) to 45°C (113°F)
Dimensions 35.24" MOL x 1" MOD
Nominal Length 36 Inches
Certifications Enclosed Fixture Rated, DLC Listed, NSF Approved
DLC Product ID S-L7WLBJ
Environment Damp Location
Warranty 5 Year Limited



Satco 3 Foot LED Color Selectable T8 Ballast Bypass Tube Light Specification Sheet

Satco 3 Foot LED Color Selectable T8 Ballast Bypass Tube Light DLC Product Listing



Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
