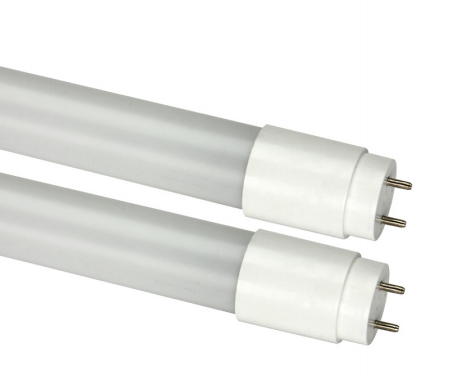

MaxLite's LED Linear T8 Ballast Bypass Double Ended Powered replacement tubes are the ideal energy saving choices when upgrading common linear T8 or T12 fluorescent lamps in fixtures containing shunted or non-shunted G13 (medium bi-pin) sockets. These LED T8 tubes are designed to provide appropriate light levels while utilizing an internal driver. Tested to NSF Standards, these tube lights carry the ETL Sanitation Mark and are suitable for use in an environment where food intended for human consumption is produced.
MaxLite tube light has a power factor over 90 and consumes just 12 watts of 120 to 277 volt 50/60 Hz energy. The UL Listed, RoHS compliant, being mercury free and creating virtually no UV or IR light, T8 LED tube is non-dimmable LED light bulb and will produce between 1,225-1,300 lumens of light output. They have an opal (frosted) lens with coated glass, a CRI of 80, a 330 degree beam angle, and a rated life of up to 62,000 hours based on L70.
These 3 foot LED fluorescent retrofits have a G13 medium bi-pin base which easily integrates energy saving LED technology into your standard recessed fluorescent troffers or industrial fluorescent lighting format. These tubes are compatible with shunted and non-shunted lamp holders. The physical dimensions of the Maxlite LED retrofit are 35.77 long by 1.02 wide. Each LED fluorescent retrofit bulb has an internal driver and is wired live on both ends, making these tubes double ended powered. These LED retrofit bulbs carry a 7 Year Limited Warranty and are suitable for dry or damp locations as well as enclosed fixtures. The all glass construction of these tubes have PET coating. This coating creates a protective envelop in the chance that the tube light breaks, all breakage will be contained within the coating. This is what makes these tubes suitable for food production applications.
The 12 watt instant on LED tube light has been designed to retrofit existing linear 25W fluorescent T8/T12 installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. These T8 LED bulbs have an operating temperature range of -4 degrees Fahrenheit to 122 degrees Fahrenheit. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will insure no RFI interference.
|Beam Angle||330 Degrees|
|Rated Life||62,000 Hours|
|Dimensions||1.02" Diameter x 35.77" L
|Certifications||Enclosed Fixture Rated, cULus, RoHS|
|Warranty||5 Year Limited|
