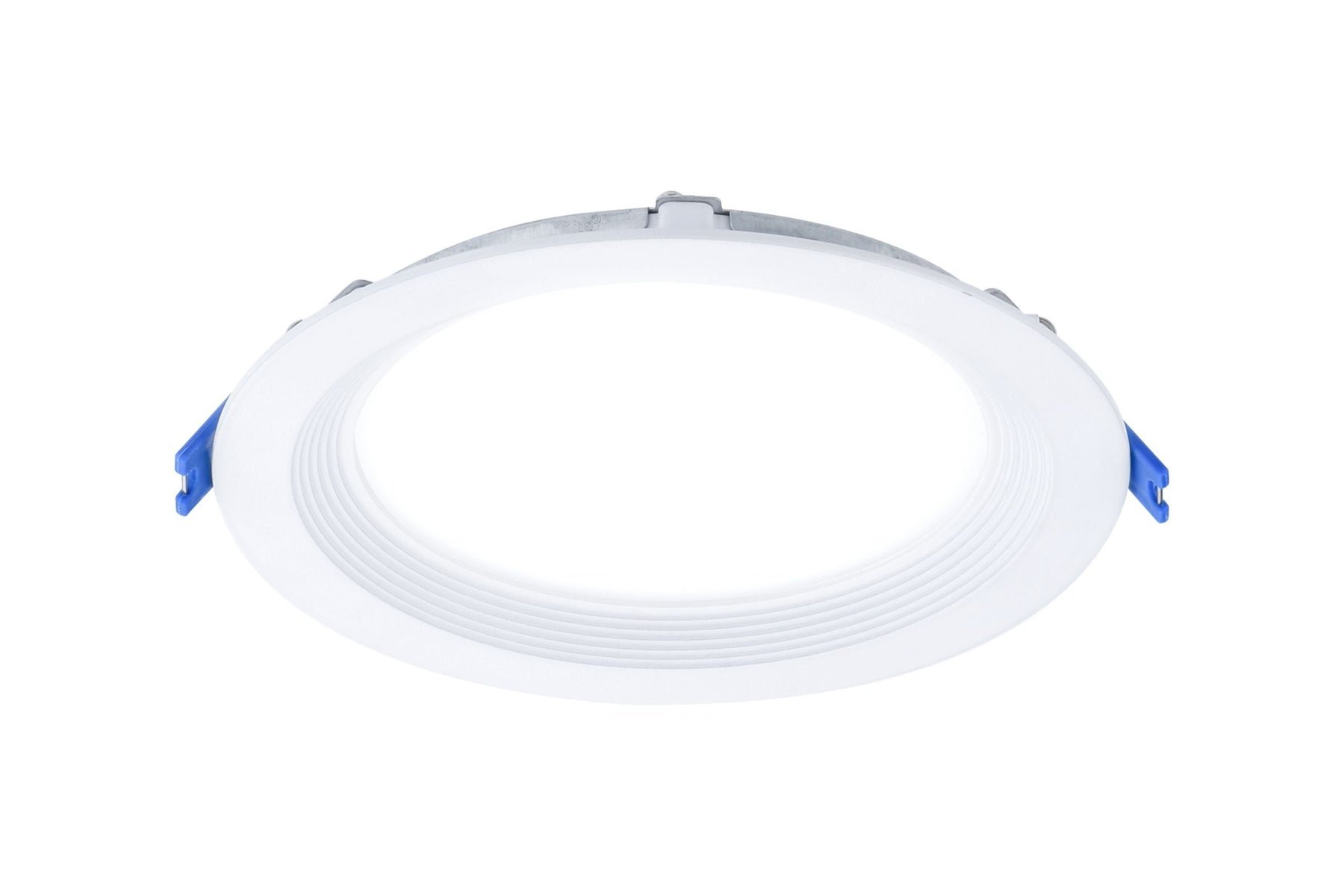

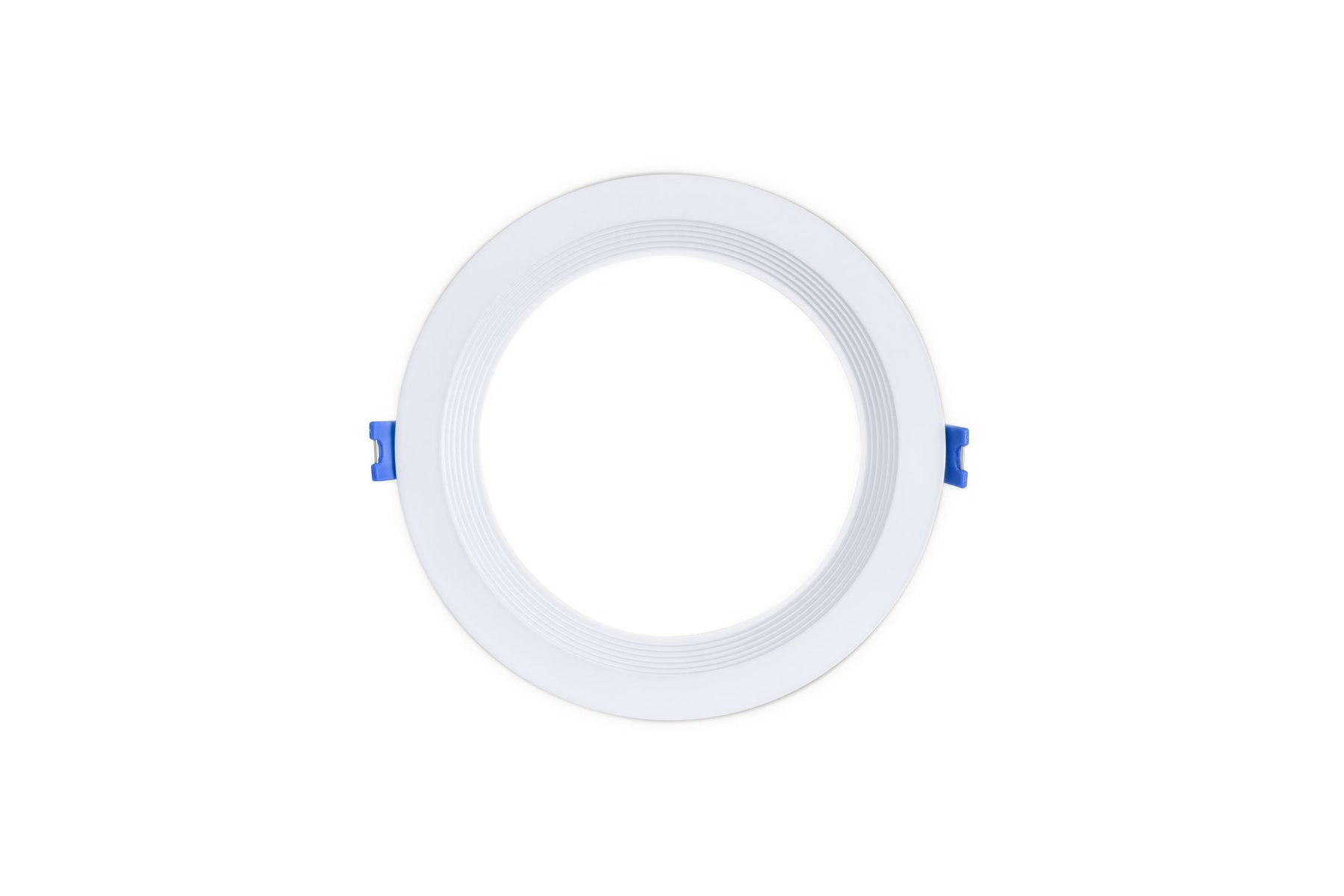

The Lightolier 3-Inch 6-Watt LED Round Downlight (DL23R5ESCT1W) delivers exceptional performance in a compact, low-profile form factor designed for both commercial and residential applications. Operating at 120V and producing 500 lumens with a wide 107° beam angle, this fixture offers selectable color temperatures — 2700K, 3000K, 3500K, 4000K, and 5000K — giving you the flexibility to dial in the perfect ambiance for any space. With a 90 CRI rating, colors appear vivid and true-to-life under its light.
Built to last, the downlight features a die-cast aluminum flange and extruded aluminum steel junction box, finished in a clean matte white. It is rated L70 at 50,000 hours and backed by a 5-year warranty, making it a reliable long-term investment. The fixture is IC-rated for direct contact with thermal insulation and includes an AirSeal design for minimal air leakage — ideal for energy-conscious installations. TRIAC dimming to 5% is supported, compatible with standard ELV/TRIAC 120V dimmers.
Installation is straightforward thanks to a locking power connection between the junction box and fixture (standard 14.96 in / 38 cm lead), quick connectors, and a foam gasket included in the box. The fixture is ETL listed (UL 1598) for damp locations, ENERGY STAR® certified, Title 24 (JA8) compliant, and RoHS compliant, meeting the most demanding commercial project specifications. Operating temperature range is -30°C to 40°C.
| Manufacturer | Lightolier |
| MPN | DL23R5ESCT1W |
| SKU | DL23R5ESCT1W |
| UPC | 190096198238 |
| Lighting Technology | LED |
| Wattage | 6 Watts |
| Voltage | 120 Volt |
| Color Temperature (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 500 Lumens |
| Dimmable | ELV/Triac to 5% |
| Beam Angle | 107° |
| Rated Life | 50,000 Hours |
| CRI (Color Rendering Index) | 90 CRI |
| Finish Color | Matte White |
| Operating Temperature | -30°C to 40°C |
| Fixture Dimensions | 3.7" Outer D x 1.3" H |
| J-Box Dimensions | 3.66" W x 1.44" H |
| Environment | Damp Location Rated |
| Certifications | ETL, Energy Star, IC Rated, JA8 Compliant, RoHS, Title 24 Compliant |
| Warranty | 5 Years |
