The Westgate SLE-EL-120V-MCT5 is a 3 watt, 120 volt color selectable LED integrated step light built for versatile low-voltage outdoor and indoor applications. Available in Oil-Rubbed Bronze (ORB) and White (WH) finishes, this fixture features field-selectable CCT spanning 2700K, 3000K, 3500K, 4000K, and 5000K, allowing installers to dial in the perfect ambiance without swapping fixtures. With a 120° beam angle and integrated SMD LED module, it delivers smooth, even illumination across steps, walkways, pathways, courtyards, and decks.
Engineered for durability and long-term performance, the SLE-EL-120V-MCT5 carries an IP65 wet location rating and is rated for operating temperatures from -40°F to 104°F, making it suitable for demanding outdoor environments. The polycarbonate housing with frosted glass lens provides a clean, refined appearance while protecting the LED module. The Oil-Rubbed Bronze finish delivers 50 lumens at 16 lm/W, while the White finish delivers 90 lumens at 30 lm/W — both backed by a 50,000 hour rated lifespan and a 3 year limited warranty.

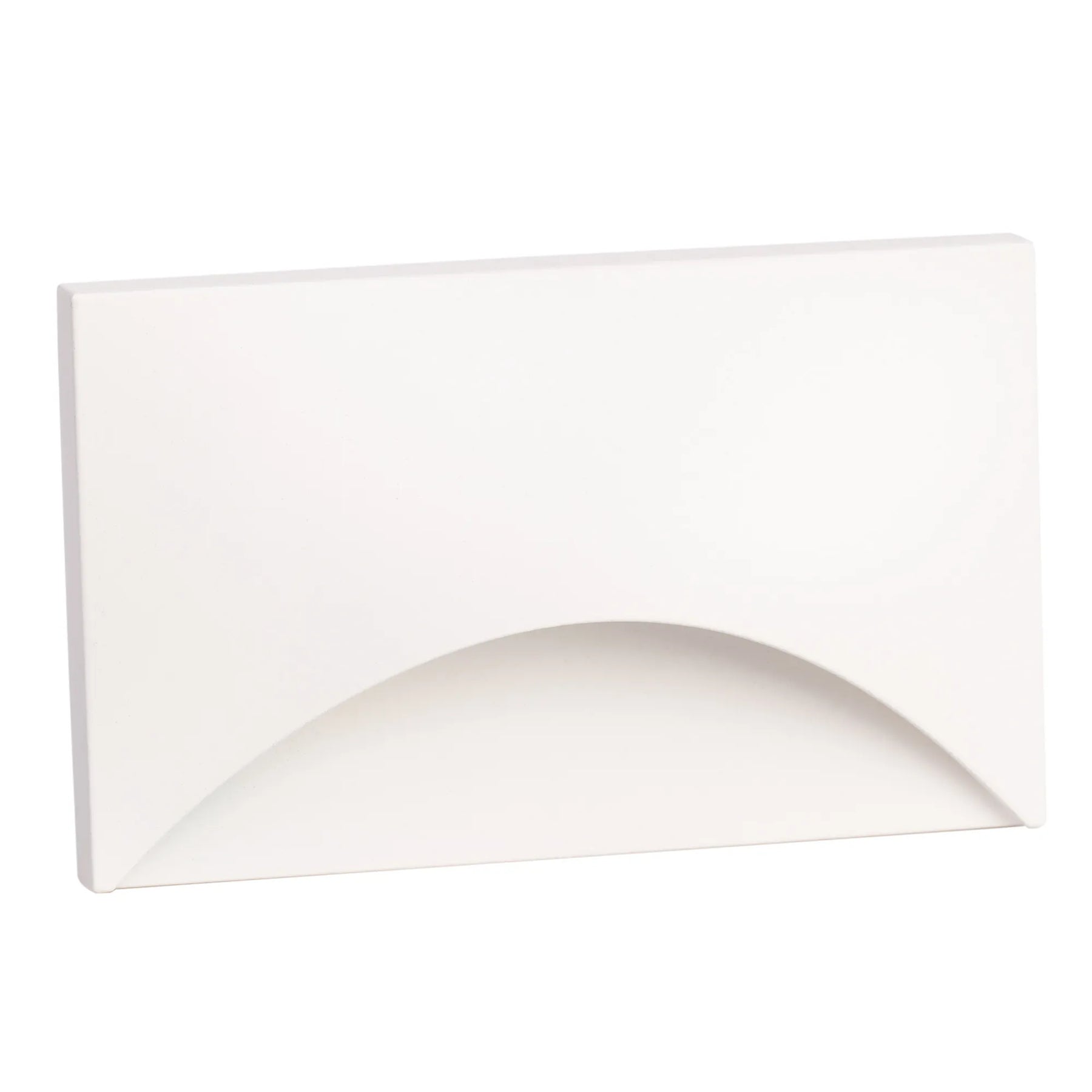

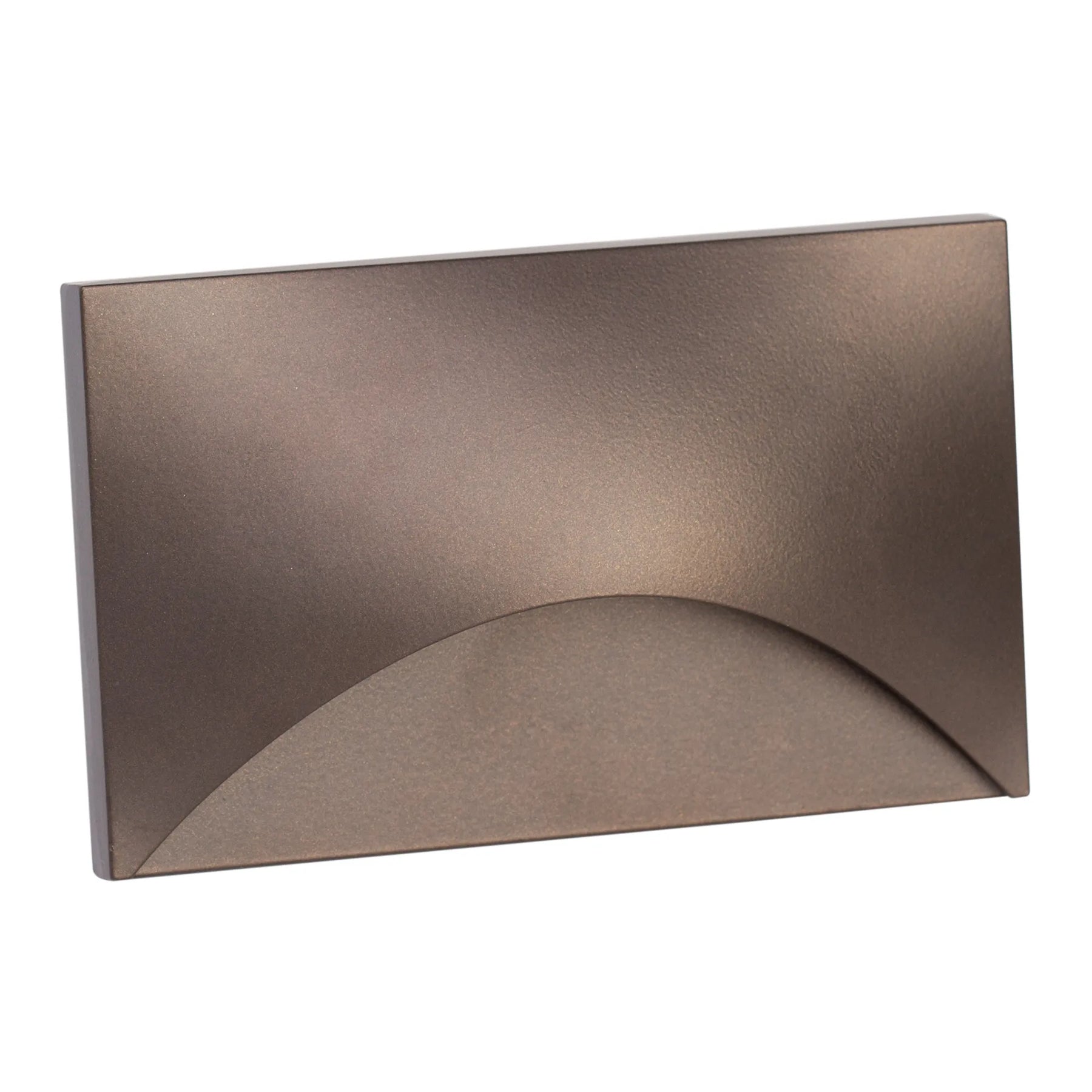

Order the Oil-Rubbed Bronze finish under Item # SLE-EL-120V-MCT5-ORB or the White finish under Item # SLE-EL-120V-MCT5-WH. Both are sold by Westgate and are ideal for recessed step lighting, walkway and path lighting, courtyard lighting, and deck lighting.
| Manufacturer | Westgate | |
| Finish Color | Bronze | White |
| MPN | SLE-EL-120V-MCT5-ORB | SLE-EL-120V-MCT5-WH |
| SKU | SLE-EL-120V-MCT5-ORB | SLE-EL-120V-MCT5-WH |
| UPC | 840378314923 | 840378314930 |
| Lumens | 50 Lumens | 90 Lumens |
| Efficiency (Lumens Per Watt) | 16 LPW | 30 LPW |
| Lighting Technology | LED | |
| Wattage | 3 Watts | |
| Voltage | 120V | |
| Color Temperature (Kelvin) | 2700K/3000K/3500K/4000K/5000K | |
| Rated Life | 50,000 Hours | |
| Beam Angle | 120° | |
| Housing | Polycarbonate | |
| Lens | Frosted inside of glass lens | |
| Operating Temperature | -40°F ~ 104°F |
|
| Dimensions | 4.72" L x 2.87" W x 1.63" H | |
| Environment | Wet Location | |
| Certifications | IP65 | |
| Warranty | 3 Years | |
