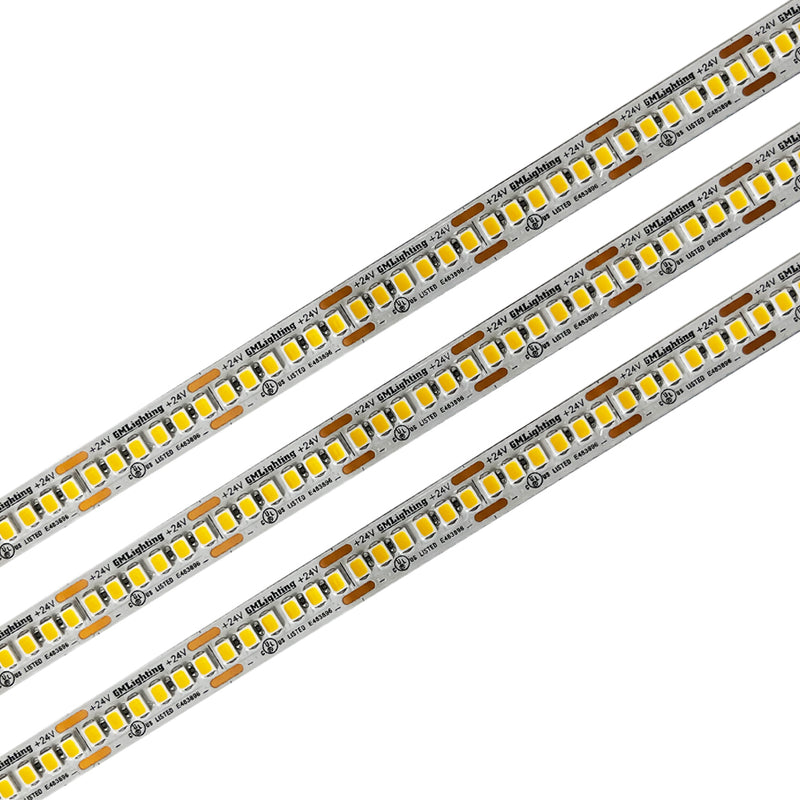

GM Lighting's LTR-S Specification Series LED Tape offers a standardized, architectural-grade option in LED linear lighting, delivering reliable and efficient performance. This LED tape is available in assorted color temperatures and colors and is field-cuttable into 16 foot and 5 meter reels, with optional Sure-Tite connectors (sold separately) for easy connection.
LEDTask from GM Lighting provides an ideal solution for architectural lighting, task lighting and hospitality lighting needs. Its flexible LED tape, or LED ribbon under cabinet lighting, is able to conform to straight, curved and irregularly-shaped coves, banisters and recesses, and enables energy-efficient illumination of the desired area.
This GM Lighting LTR-S Specification Series LED Tape reel, part number LTR-S-24V-2.5W-(XX)K-(XX), features 18 LED diodes per foot for a total of 2.5 Watts. Connectors and power supplies are required for installation; related items are listed below. Rated for Dry Location Use Only (the LTR-P-WP series is Wet Location rated), the LTR-S series can be cut every inch and comes pre-installed with 3M double side mounting tape. When paired with a GM Lighting power supply, the product comes with a 5 Year Warranty.
A Power Supply is required to energize the LTR-S-24V-2.5W-(XX)K-(XX)- sold separately. If you prefer a dimmable power supply, the most popular choices are the 60 watt LD-MD-UNV60, and the 150 watt LD-MDUNV150-12. The LD-MD series 12VDC and 24VDC hardwire magnetic LED dimmable power supplies feature the smallest dimmable Class II hardwire LED dimming magnetic power supply on the market. Both work with conventional low voltage magnetic wall mount dimmers with an on/off switch. An auto reset thermal circuit breaker is on the secondary side. Both power supplies operate on 120V 60Hz input circuits and are ETL listed for indoor and outdoor use. The most popular non-dimmable power supply is the 60 watt LTP-6. This option is an electronic Class II power supply with a 126" long, 2-prong cord and plug with an inline on/off switch.
| Manufacturer | GM Lighting | |||
| Lighting Technology | LED | |||
| Wattage Per Foot | 2.5 Watt | |||
| Voltage Output | 24VDC | |||
| Dimmable | Yes | |||
| CRI (Color Rendering Index) | 95 CRI | |||
| Field Cuttable | Every 2 Inches | |||
| Beam Angle | 120 Degrees | |||
| Certifications | Class 2, Title 24 Compliant | |||
| Environment | Dry Location | |||
| Warranty | 5 Year Standard | |||
| Length | 16'-4" (5M) | |||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White |
| MPN | LTR-S-24V-2.5W-27K-16 | LTR-S-24V-2.5W-30K-16 | LTR-S-24V-2.5W-35K-16 | LTR-S-24V-2.5W-40K-16 |
| SKU | LTR-S-24V-2.5W-27K-16 | LTR-S-24V-2.5W-30K-16 | LTR-S-24V-2.5W-35K-16 | LTR-S-24V-2.5W-40K-16 |
| UPC | 849951014182 | 849951014199 | 849951014205 | 849951014212 |
| Efficiency (Lumens Per Foot) | 216 LPF | 224 LPF | 219 LPF | 261 LPF |
| Length | 98'-6" (30M) | |||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White |
| MPN | LTR-S-24V-2.5W-27K-100 | LTR-S-24V-2.5W-30K-100 | LTR-S-24V-2.5W-35K-100 | LTR-S-24V-2.5W-40K-100 |
| SKU | LTR-S-24V-2.5W-27K-100 | LTR-S-24V-2.5W-30K-100 | LTR-S-24V-2.5W-35K-100 | LTR-S-24V-2.5W-40K-100 |
| UPC | 849951014229 | 849951014236 | 849951014243 | 849951014250 |
| Efficiency (Lumens Per Foot) | 216 LPF | 224 LPF | 219 LPF | 261 LPF |
