Magnitude Otter™ is a high-performance landscape transformer series for commercial and residential lighting applications. Compact and waterproof, the Magnitude Otter™ hides easily and is engineered with features that reduce time, labor and profit-draining callbacks. This transformer saves on installation time with pre-punches knockouts with replaceable rubber cover and large wire connection lugs that are tilted for easy access.
The Otter™ OTR300L-LS-SP is made of 20 gauge 304 stainless-steel housing with stainless-steel fasteners and has pre-punched knockouts that measure at 3/4", 1" and 2" diameter. This transformer has 300 watts with a input voltage of 120V. This transformer dimensions are 11.46" height x 6.132" width x 5.69" depth with a lifetime warranty.

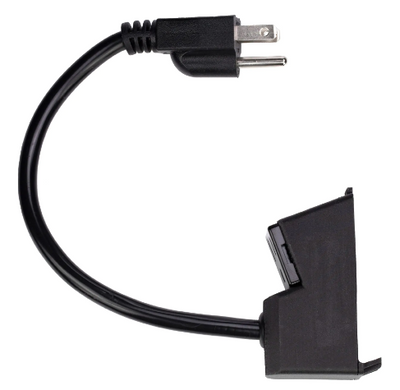

The light sensor provides a 30 second time delay to prevent accidental shutoff and a plug-in wiring hardware is included. The temperature compensation system provides consistent performance regardless of the weather. The surge protector has a quick snap-in/plug-in installation engineered to meet ANSI surge protection standard for multiple lightning strikes.
Input Voltage | 120 Volt |
Output Voltage | 12/13/14/15 VAC Nominal |
Wattage | 300 Watt |
12V Tap (typ.) @ Max Load | 270W Max (10.97VAC, 24.67A) |
13V Tap (typ.) @ Max Load | 270W Max (11.86VAC, 23.66A) |
14V Tap (typ.) @ Max Load | 300W Max (12.62VAC, 23.87A) |
15V Tap (typ.) @ Max Load | 300W Max (13.61VAC, 22.05A) |
Dimensions | 11.46" H x 6.132" W x 5.69" D |
Certifications | UL746C, IP65 Rated |
Warranty | Lifetime Warranty |
