300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector

Magnitude Lighting SKU: OTR300L-SP
Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector
Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector
Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector
Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector
Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector
Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector

300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector

Magnitude Lighting SKU: OTR300L-SP
/
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

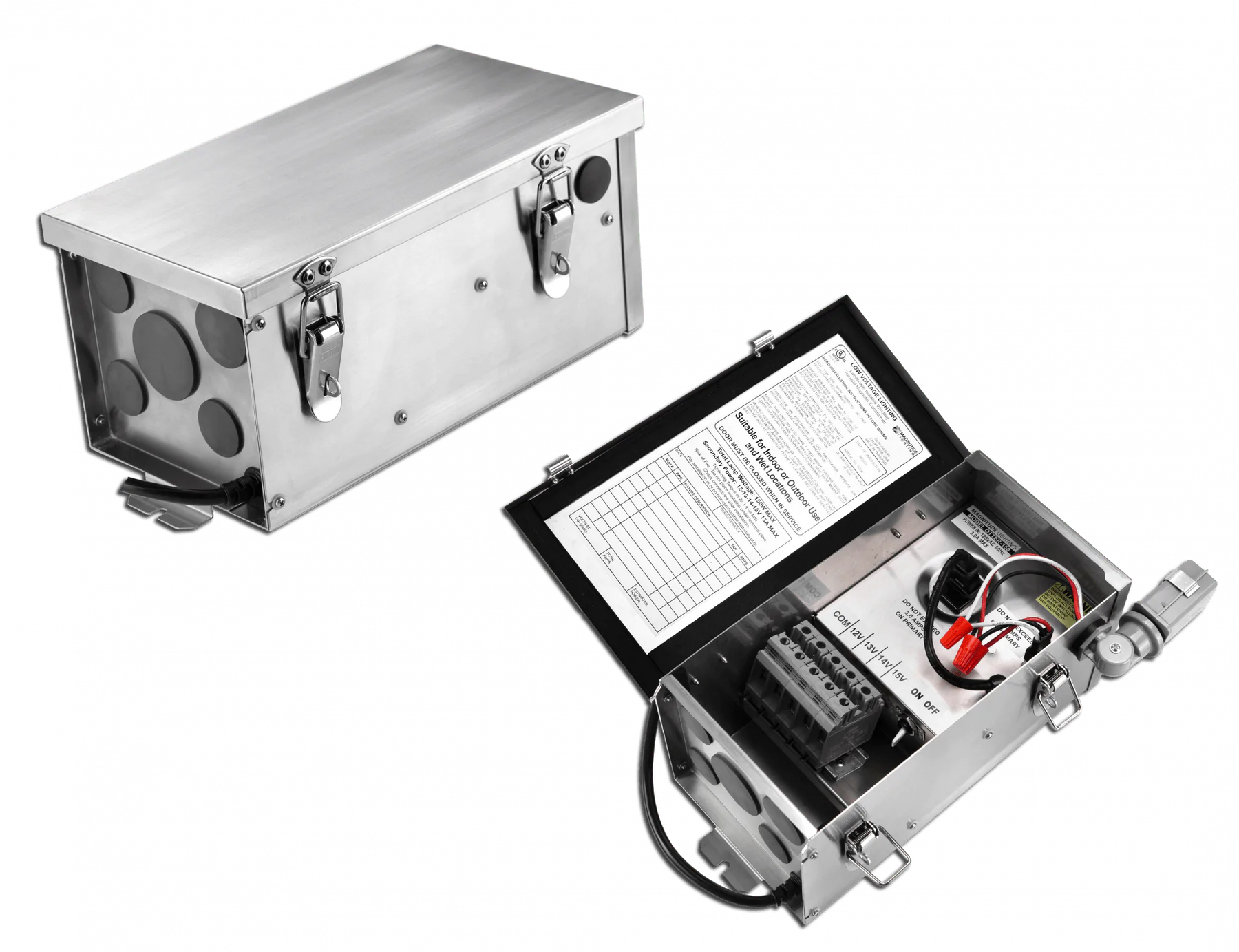

Magnitude Otter™ is a high-performance landscape transformer series for commercial and residential lighting applications. Compact and waterproof, the Magnitude Otter™ hides easily and is engineered with features that reduce time, labor and profit-draining callbacks. This transformer saves on installation time with pre-punches knockouts with replaceable rubber cover and large wire connection lugs that are tilted for easy access.

The Otter™ OTR300L-SP is made of 20 gauge 304 stainless-steel housing with stainless-steel fasteners and has pre-punched knockouts that measure at 3/4", 1" and 2" diameter. This transformer has 300 watts with a input voltage of 120V. This transformer dimensions are 11.46" height x 6.132" width x 5.69" depth with a lifetime warranty.

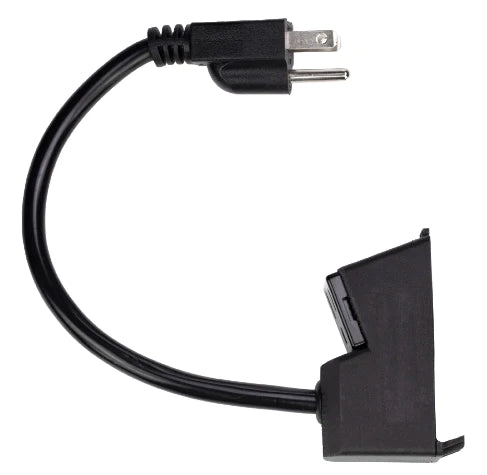

The surge protector has a quick snap-in/plug-in installation engineered to meet ANSI surge protection standard for multiple lightning strikes.

Input Voltage 120 Volt
Output Voltage 12/13/14/15 VAC Nominal
Wattage 300 Watt
12V Tap (typ.) @ Max Load 270W Max (10.97VAC, 24.67A)
13V Tap (typ.) @ Max Load 270W Max (11.86VAC, 23.66A)
14V Tap (typ.) @ Max Load 300W Max (12.62VAC, 23.87A)
15V Tap (typ.) @ Max Load 300W Max (13.61VAC, 22.05A)
Dimensions 11.46" H x 6.132" W x 5.69" D
Certifications UL746C, IP65 Rated
Warranty Lifetime Warranty

Specification Sheet

Installation Instructions

Timer Fit Guide

 

Green Electrical Supply will help you maximize your green® on all your electrical supply purchases, including projects, bids, quotes, and large orders.

Simply use our Contact Us form to request a quote. Or if you prefer, give us a call at 248-276-9640. Weekdays 8am-5pm EST

Tip: Copy the SKU from above and include it along with the quantity on the quote request.
Please note that the SKU is dynamic and changes on products that have multiple options, so choose the required option(s) first to see the precise SKU.

Recommended or frequently bought with this product
More from Low Voltage Transformers
Keystone Technologies KTET-60-1-WC-F 53 Watt Low Voltage Transformer
KTET-60-1-WC-F 53 Watt Low Voltage Transformer
Keystone Technologies
Keystone Technologies KTET-150-1-SCP-DIM 150 Watt Low Voltage Transformer
KTET-150-1-SCP-DIM 150 Watt Low Voltage Transformer
Keystone Technologies
Keystone Technologies KTET-75-2-SCP-RJS 70 Watt Low Voltage Transformer
KTET-75-2-SCP-RJS 70 Watt Low Voltage Transformer
Keystone Technologies
Keystone Technologies KTET-75-1-SCP-DIM-HV-AL 79 Watt Low Voltage Transformer
KTET-75-1-SCP-DIM-HV-AL 79 Watt Low Voltage Transformer
Keystone Technologies
Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector
300 Watt Otter Commercial and Residential Landscape Transformer With Surge Protector
Magnitude Lighting

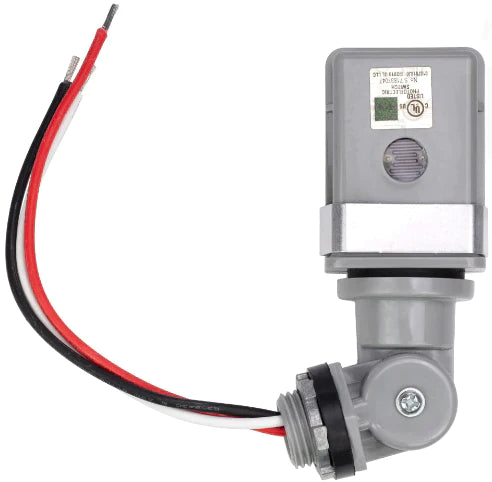

Magnitude Lighting 300 Watt Otter Commercial and Residential Landscape Transformer With Light Sensor and Surge Protector
