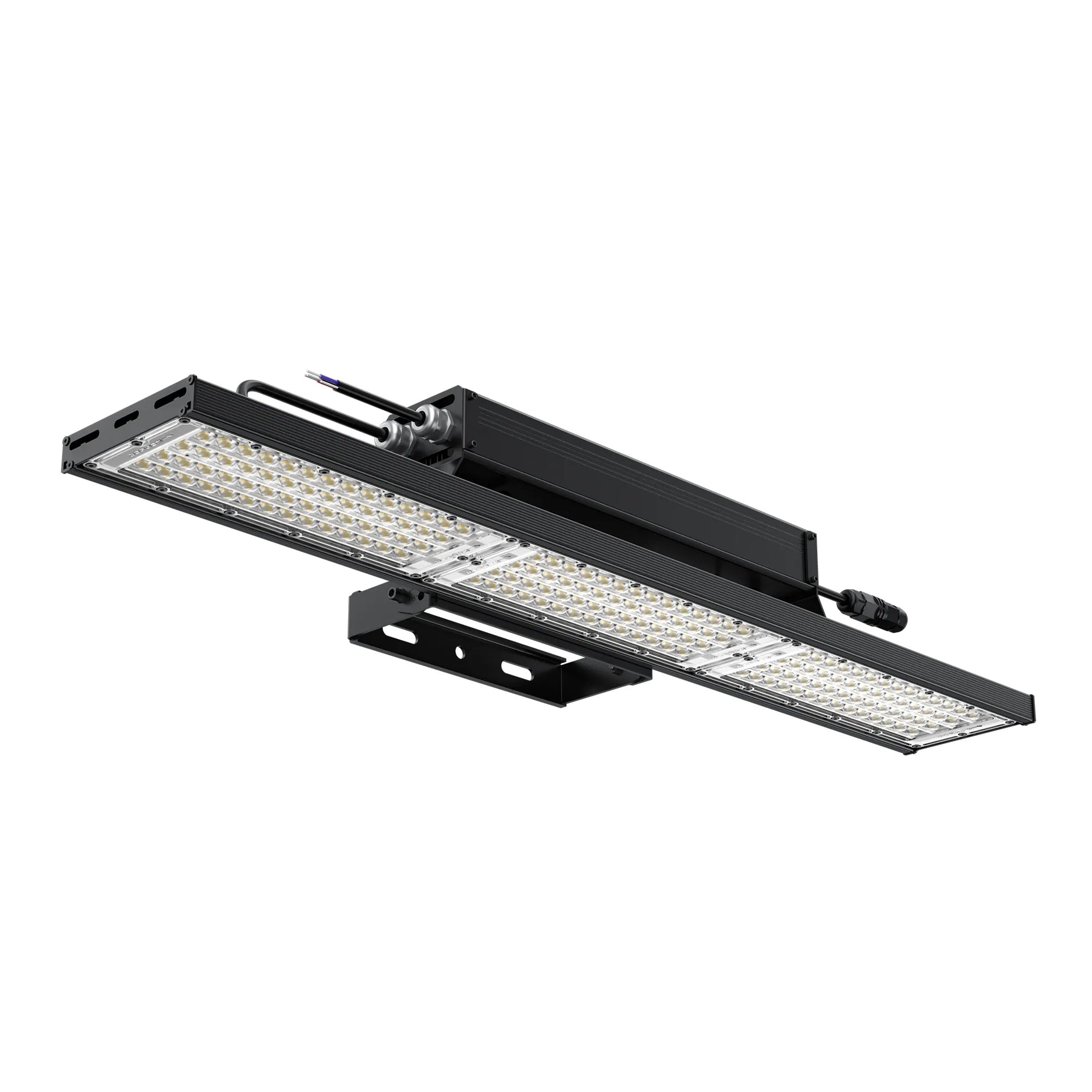

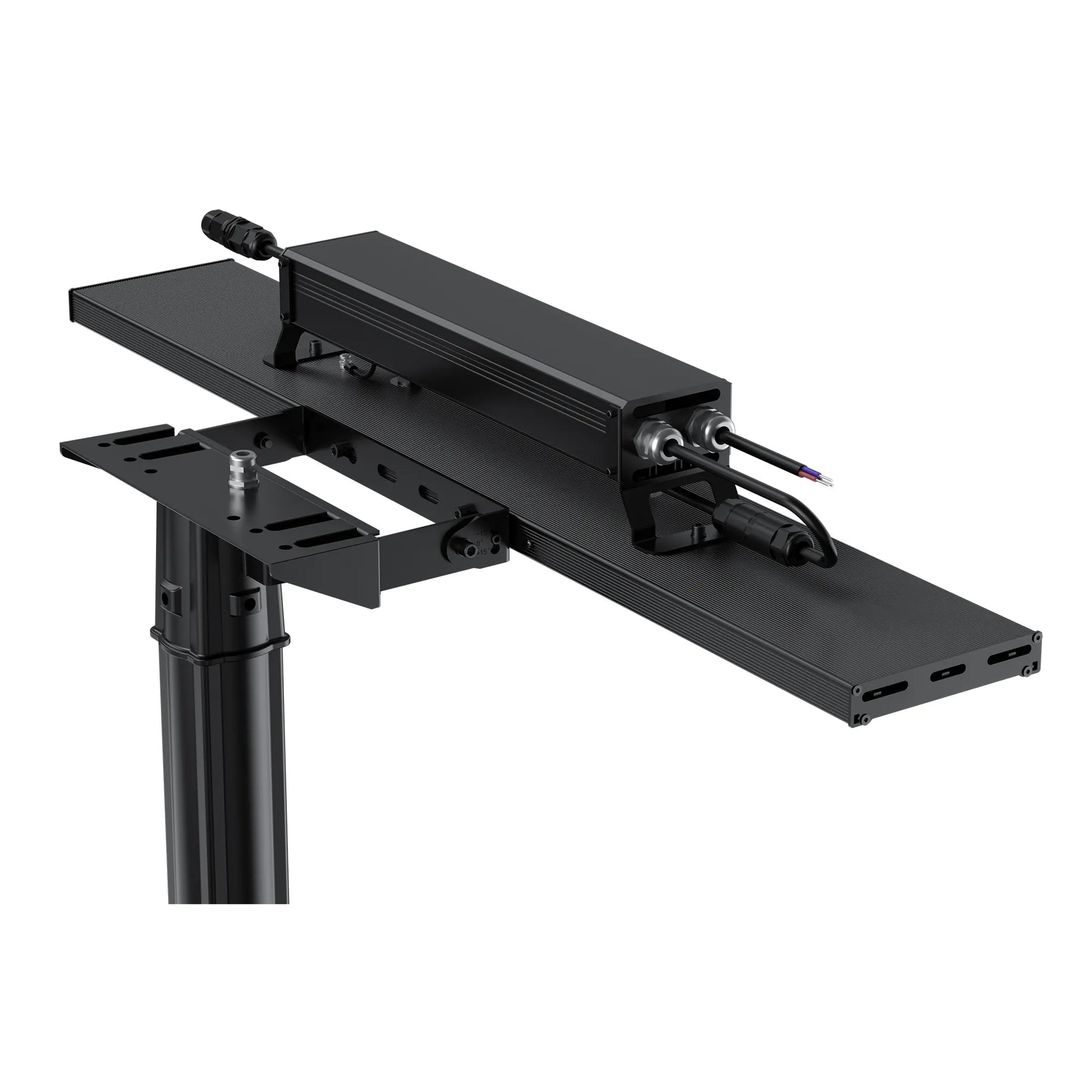

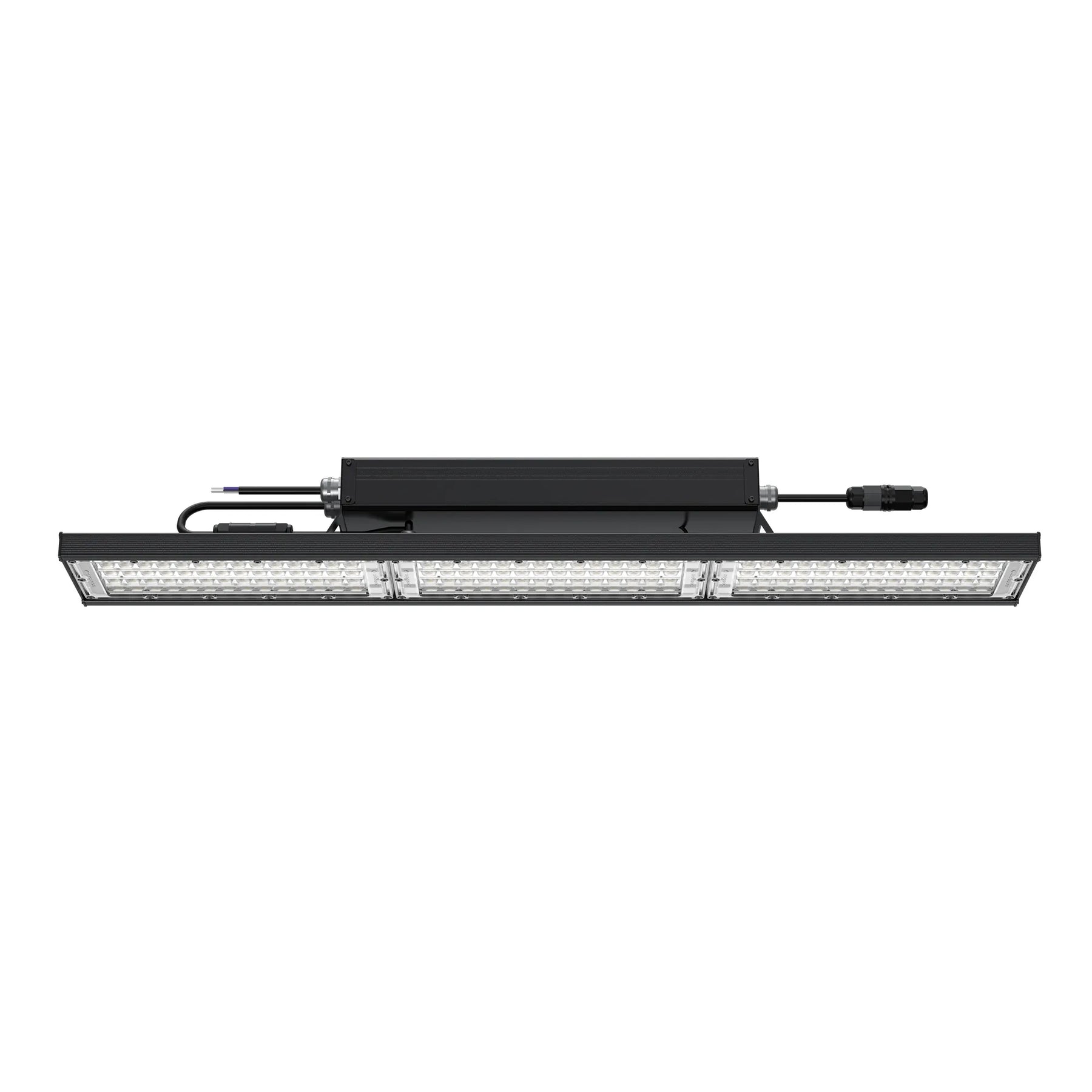

The SFP-320W-50K Pickleball Court Light is a precision LED sports light designed for outdoor and indoor pickleball and paddle courts. Its 5000K LED system, asymmetrical 38° optics, and wide luminous surface help deliver uniform court illumination with reduced glare. The fixture includes a yoke mount for adjustable aiming, with an optional SFP-SF slip-fitter pole adapter available for pole-mounted installations. Pre-engineered photometric layouts are available upon request to support project planning and court lighting verification.
Designed specifically for pickleball and padel court lighting, this fixture features a wide luminous surface that helps reduce harsh hot spots while delivering high-efficiency performance up to 178 LM/W. It is UL certified and backed by a 7 year warranty. Pre-engineered photometric layouts are available for pickleball court applications, including EN12193 Class I and Class II design examples. A 50Fc pickleball court lighting layout is available with a 28 ft mounting height, 0.9 maintenance factor, and GR<50. Obtrusive light compliance reports are also available for documented layouts.
Electrically, the fixture operates on 120–277VAC input voltage at a nominal wattage of 240W ±5%. It supports 0–10V dimming and provides surge protection of L-N: 6KV and L/N-E: 6KV. Rated as Electrical Class I, it operates reliably across a temperature range of -22°F to +113°F.
The fixture measures 36.57” L x 9.76” W x 5.00” H with a windage area of 1.404 sq. ft. at 0° and 1.680 sq. ft. at 15°. It carries an IP66 rating, IK10 impact resistance, and a Corrosion Category C5 rating per ISO 9223:2012, having passed a 1,500-hour salt spray test.
On the lighting side, the SFP-320W-50K delivers 57,135 lumens at a CRI of 70. Its LED lifespan is rated at 67,100 hours L90B10, 165,600 hours L80B10, and 258,900 hours L70B10 at 77°F.
