35/45/55 Watt LED Selectable Slim Wall Pack 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED55PS-M4-8CSB-VDIM
Keystone Technologies 35/45/55 Watt LED Selectable Slim Wall Pack 3000/4000/5000K Selectable

35/45/55 Watt LED Selectable Slim Wall Pack 3000/4000/5000K

Keystone Technologies SKU: KT-WPLED55PS-M4-8CSB-VDIM
  • DLC Listed
Regular price $178.38
/
Color Temp
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

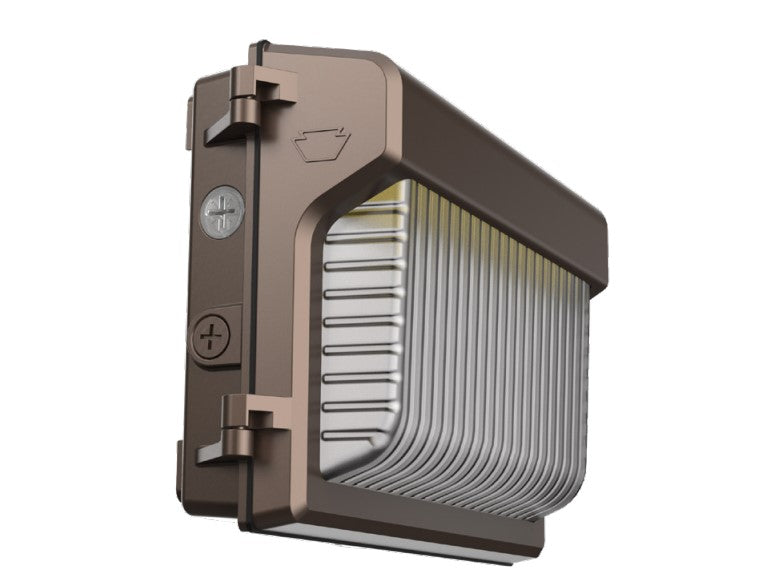

Our XFit Traditional-Slim LED Wall Pack features robust lighting output capabilities – up to 17,000-plus lumens – in an updated, modern design. It keeps the same footprint as Traditional Wall Packs, so there’s no need to repaint or redo the area around the installation, and it’s equipped with an easily accessible driver for simple maintenance.

With Keystone Power and Color Select technology for field-adjustable outputs, and a pre-installed photocell for daylight sensing, the Slim Wall Pack offers customizable features to go with its powerful, uniform light distribution. It’s the perfect fit for upgrading legacy wall packs.

The Keystone KT-WPLED55PS-M4-8CSB-VDIM selectable slim LED wall pack has a die-cast aluminum housing with (5) 1/2" threaded conduit hubs. There is (1) located on the back and (1) on all four sides of the fixture. It consumes 35/45/55 watts of 120-277V energy and delivers between 4,900-7,645 lumens of your choice of either 3000K, 4000K or 5000K LED light output. This LED wall pack includes a built in dusk-to-dawn photocell placed behind a translucent 3/4" threaded plug that has an anti-yellowing agent. Typical applications for this color select wall pack would include: perimeters, pathways, loading docks, and other general security lighting requirements. This DLC Listed fixture is suitable for wet locations and carries a 5 year warranty.

Manufacturer Keystone Technologies
MPN KT-WPLED55PS-M4-8CSB-VDIM
SKU KT-WPLED55PS-M4-8CSB-VDIM
UPC 843654155531
Lighting Technology LED
Voltage 120-277V
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.95
THD (Total Harmonic Distortion) <20%
Finish Color Bronze
Lens Glass
Metal Halide Equivalent 250 Watts
Operating Temperature -40ºC/-40ºF to 50ºC/122ºF
Dimensions 14.37" x 9.29" x 4.72"
Certifications DLC Listed, IP65
DLC Product ID S-IRMB5P
Environment Wet Location
Warranty 5 Year Standard



Wattage 35 Watt
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 4,900 Lumens 5,075 Lumens 5,005 Lumens
Efficiency (Lumens Per Watt) 140 LPW 145 LPW 143 LPW



Wattage 45 Watt
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 6,120 Lumens 6,435 Lumens 6,255 Lumens
Efficiency (Lumens Per Watt) 136 LPW 143 LPW 139 LPW



Wattage 55 Watt
Color Temperature (Kelvin) 3000K Warm White 4000K Cool White 5000K Daylight
Lumens 7,260 Lumens 7,645 Lumens 7,370 Lumens
Efficiency (Lumens Per Watt) 132 LPW 139 LPW 134 LPW
