Name: 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K
Brand: Westgate
SKU: CMCW8-SMD-35W-MCT-75D-D-BK
Price: 238.31 USD
Availability: InStock

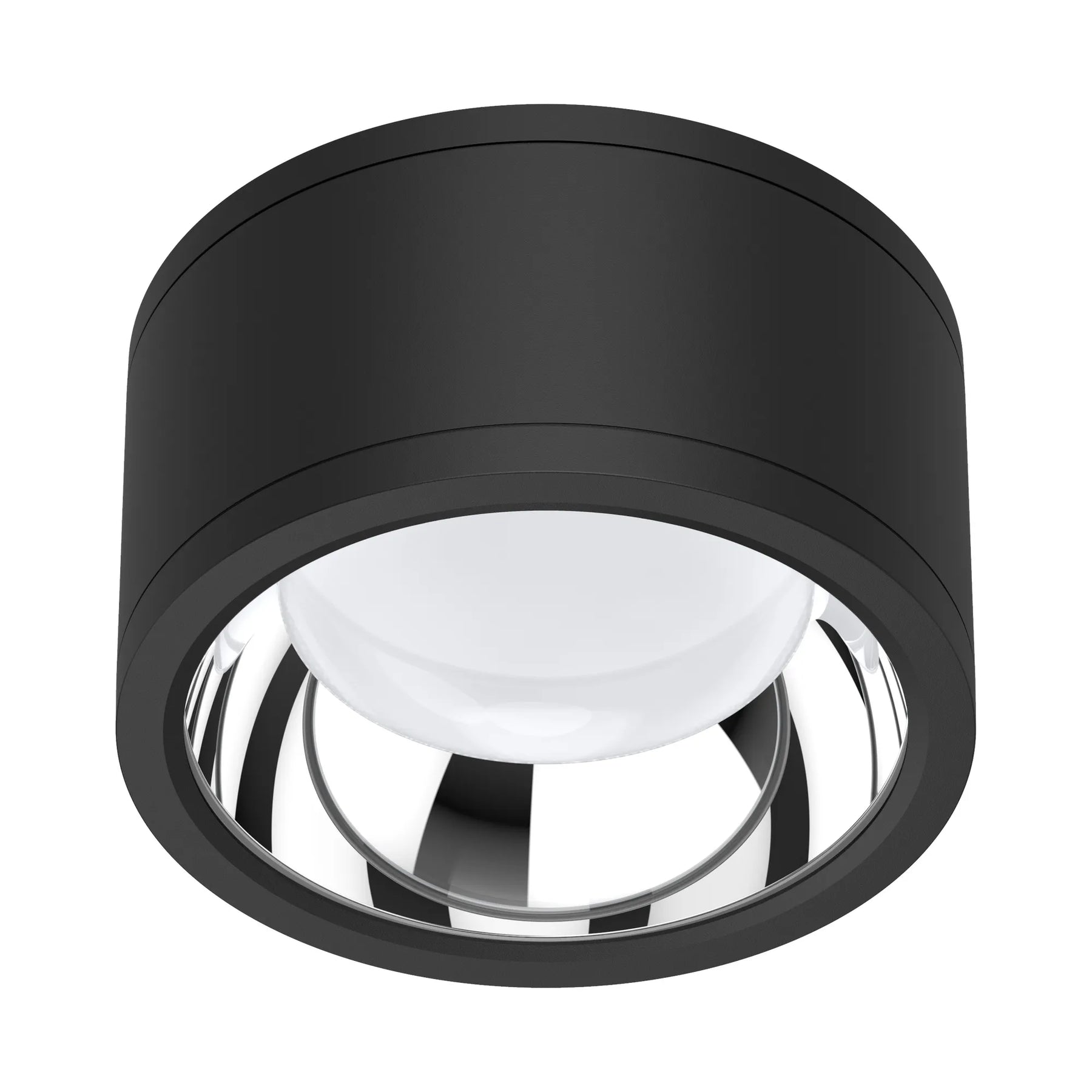

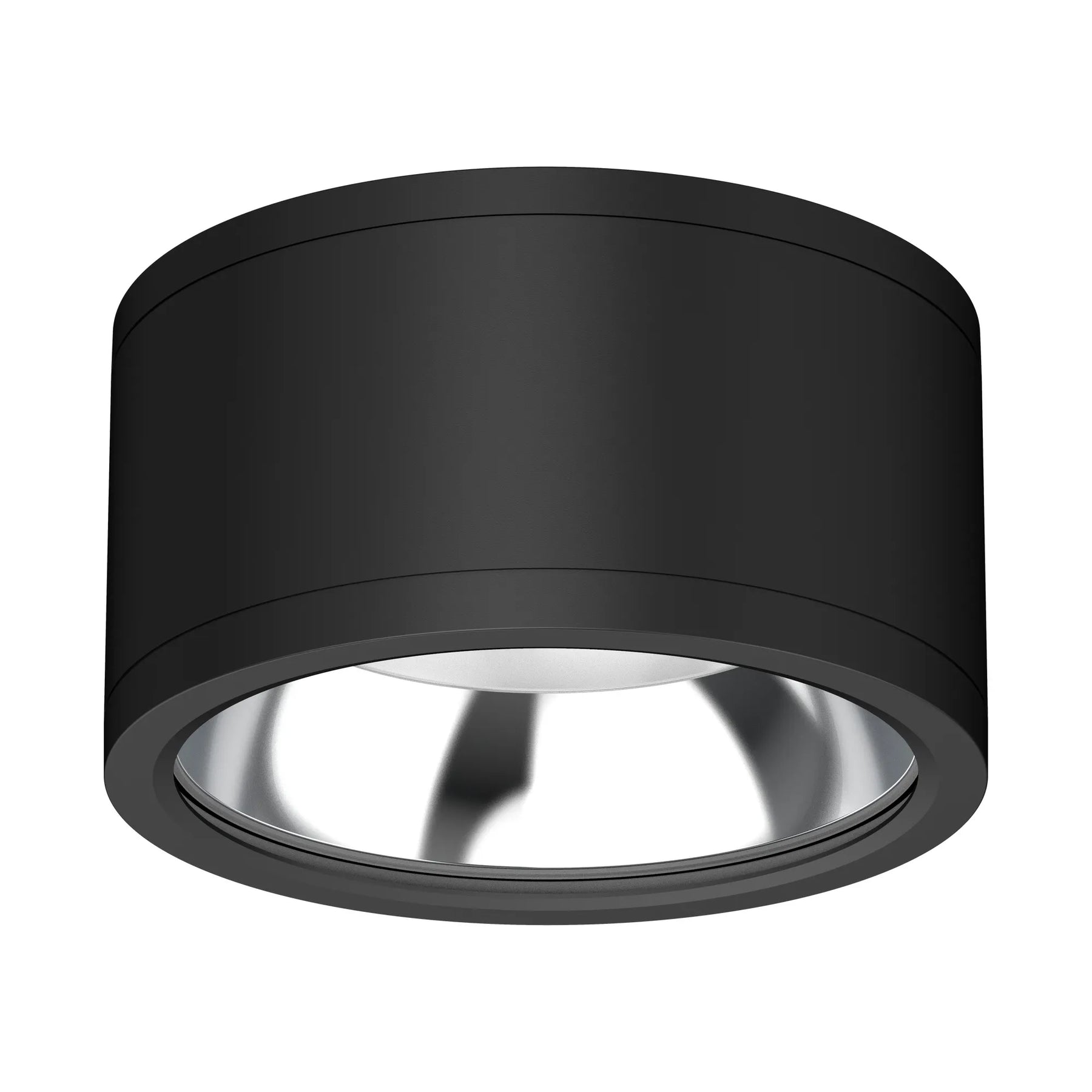

Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable Black

Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K

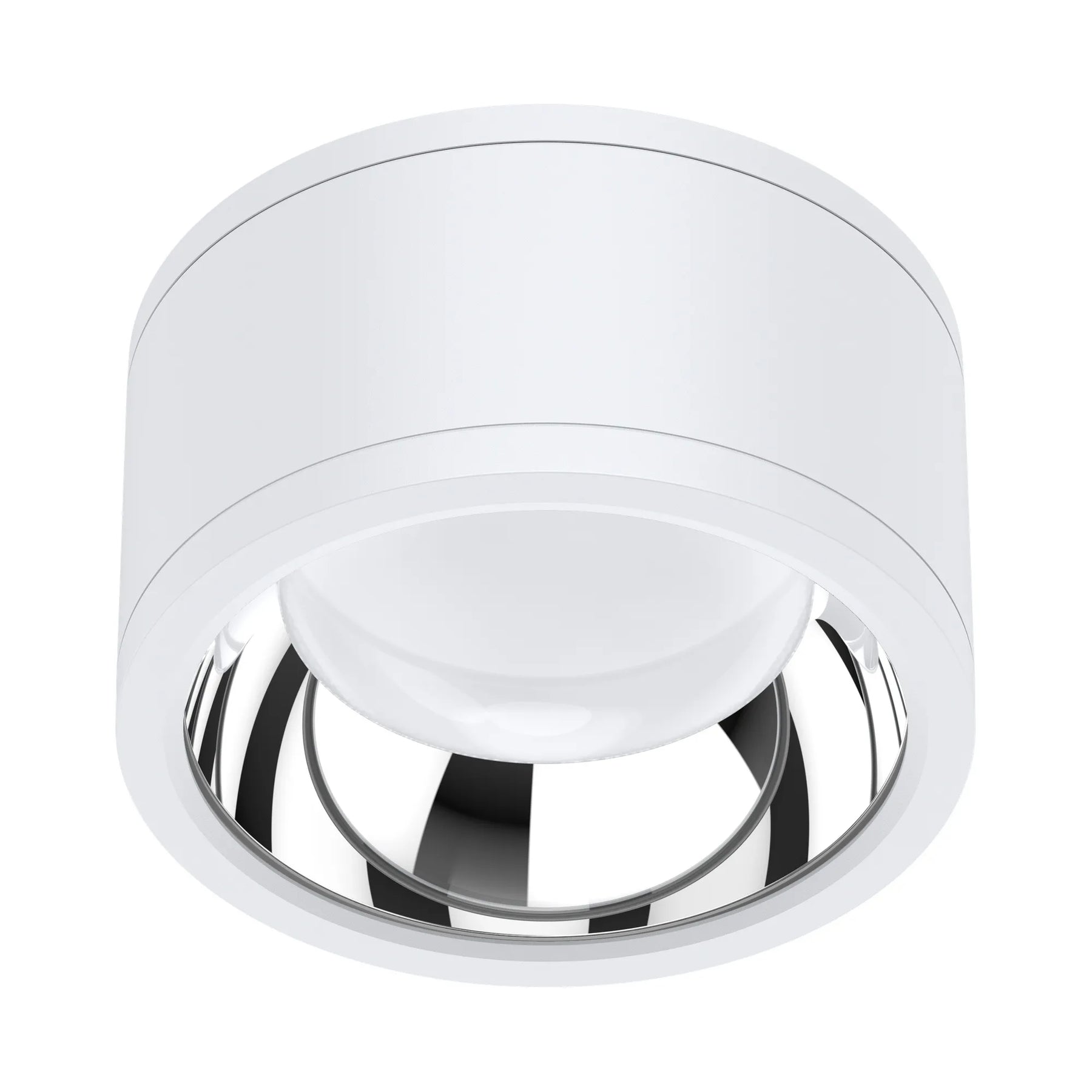

Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K/3500K/5000K Selectable White

Damp Location Rated, ETL Certified, IP40, IP65, Wet Location Rated

Price

Color Temp

Selectable

Finish Color

Black

White

Quantity

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":67670412329204,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW8-SMD-35W-MCT-75D-D-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55354094649588,"product_id":15408704159988,"position":1,"created_at":"2026-09-30T15:47:31-04:00","updated_at":"2026-09-30T15:47:32-04:00","alt":"Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW8-SMD-35W-MCT-75D-D-BK.webp?v=1790797652","variant_ids":[67670412329204]},"available":true,"name":"35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":23831,"weight":2341,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332682","featured_media":{"alt":"Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46349188071668,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW8-SMD-35W-MCT-75D-D-BK.webp?v=1790797652"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67670412361972,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"CMCW8-SMD-35W-MCT-75D-D-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":55354152550644,"product_id":15408704159988,"position":3,"created_at":"2026-09-30T15:47:50-04:00","updated_at":"2026-09-30T15:47:51-04:00","alt":"Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW8-SMD-35W-MCT-75D-D-WH.webp?v=1790797671","variant_ids":[67670412361972]},"available":true,"name":"35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":23831,"weight":2341,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332484","featured_media":{"alt":"Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable White","id":46349245186292,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW8-SMD-35W-MCT-75D-D-WH.webp?v=1790797671"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":67670412329204,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"CMCW8-SMD-35W-MCT-75D-D-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":55354094649588,"product_id":15408704159988,"position":1,"created_at":"2026-09-30T15:47:31-04:00","updated_at":"2026-09-30T15:47:32-04:00","alt":"Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","width":2000,"height":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW8-SMD-35W-MCT-75D-D-BK.webp?v=1790797652","variant_ids":[67670412329204]},"available":true,"name":"35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":23831,"weight":2341,"compare_at_price":null,"inventory_management":"shopify","barcode":"840378332682","featured_media":{"alt":"Westgate 35 Watt 120-277V Dimmable LED Surface Mount Cylinder Downlight 3000K\/3500K\/5000K Selectable Black","id":46349188071668,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/CMCW8-SMD-35W-MCT-75D-D-BK.webp?v=1790797652"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

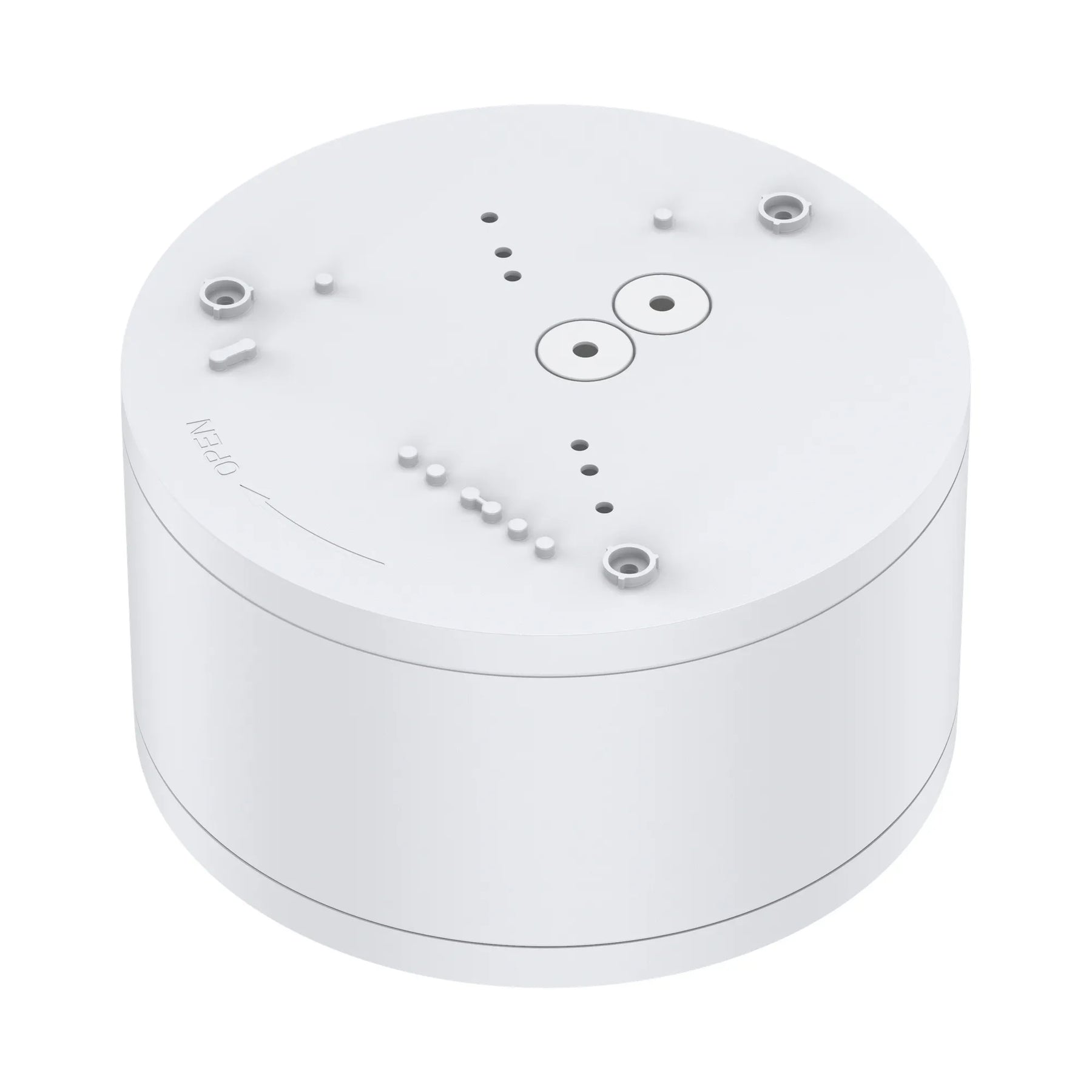

Bring flexible lighting to your space with Westgate’s 35-watt LED surface-mount cylinder downlight. The selectable multi-CCT switches on the back of the fixture let you choose 3000K, 3500K, or 5000K light, while 120-277V 0-10V dimming gives you control over brightness. The fixture delivers 3,650 lumens at 104 lumens per watt with a 75° beam angle and 80 CRI. Westgate part number: CMCW8-SMD-35W-MCT-75D-D-XX, with BK for black and WH for white.

Built with an aluminum base and polycarbonate (PC) lens, this downlight measures 8.43” (D) x 7.087” (W) x 4.69” (H). Its listed specifications include IP40 suitability for damp locations and an IP65 wet-location rating. It operates from -13ºF to 113ºF, is ETL listed, has a rated life of 70,000 hours, and carries a 7-year warranty.

A factory-installed internal EM backup option is available. Please contact us for information.

Specifications

Manufacturer	Westgate
Finish Color	Black	White
MPN	CMCW8-SMD-35W-MCT-75D-D-BK	CMCW8-SMD-35W-MCT-75D-D-WH
SKU	CMCW8-SMD-35W-MCT-75D-D-BK	CMCW8-SMD-35W-MCT-75D-D-WH
UPC	840378332682	840378332484
Lighting Technology	LED
Wattage	35 Watts
Voltage	120-277 Volt
Color Temperature (Kelvin)	3000K/3500K/5000K
Lumens	3,650 Lumens
Efficiency (Lumens Per Watt)	104 LPW
Dimmable	0-10V
Beam Angle	75°
Rated Life	70,000 Hours
CRI (Color Rendering Index)	80 CRI
Housing	Aluminum Base
Lens	Polycarbonate (PC)
Bug Rating	B2-U0-G0
Operating Temperature	-13ºF to 113ºF
Dimensions	8.43” (D) x 7.087” (W) x 4.69” (H)
Environment	Damp & Wet location rated
Certifications	ETL Certified, IP40, IP65
Warranty	7 Years

Documents

Westgate 35 Watt 120-277V LED Surface Mount Cylinder Downlight Specification Sheet - Black

Westgate 35 Watt 120-277V LED Surface Mount Cylinder Downlight Specification Sheet - White

Request A Quote

Green Electrical Supply is here to help you maximize your green^® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
