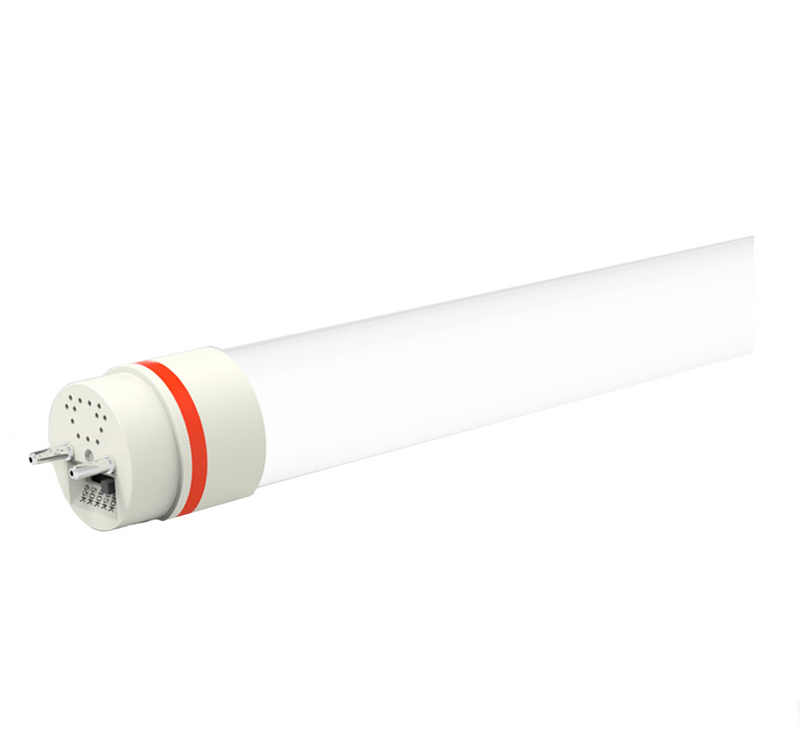

4 Foot 12 Watt Color Selectable LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

Keystone Technologies SKU: KT-LED12T8-48G-8CSJ-DX2
Keystone Technologies 4 Foot 12 Watt Color Selectable LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K Selectable

4 Foot 12 Watt Color Selectable LED T8 Ballast Bypass Tube Light 3000/3500/4000/5000/6500K

Keystone Technologies SKU: KT-LED12T8-48G-8CSJ-DX2
  • DLC Listed
/
Color Temp
Please call to confirm availability.
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

Keystone’s DirectDrive DX2 is a UL Type B line voltage tube offering single- or double-ended wiring options. DX2 utilizes both shunted and non-shunted lamp holders, making it an easy LED replacement for T8 fluorescent tubes. These T8 LED tubes can provide up to 50% more energy savings than standard F32T8 lamps. Since LED tubes have a longer useful lifespan than their fluorescent counterparts, DX2 will also reduce maintenance costs. These tubes allow users to choose from among five color temperatures – 3000K, 3500K, 4000K, 5000K, and 6500K – making this versatile tube an ideal replacement for conventional fluorescent lamp, single- or double-ended line voltage wiring.

This item is the Keystone part number KT-LED12T8-48G-8CSJ-DX2, consuming just 12 watts or 120-277 input power and generates between 1,700-1,800 lumens of 80 CRI light. This dimmable tube light is color selectable, giving you the option to choose between 3000K Warm White, 3500K Bright White, 4000K Cool White, 5000K Daylight and 6500K Daylight. Each T8 LED tube light carries a 5 year limited warranty and is rated for 50,000 hours.

Manufacturer Keystone Technologies
MPN KT-LED12T8-48G-8CSJ-DX2
SKU KT-LED12T8-48G-8CSJ-DX2
UPC 843654140834
Color Temperature (Kelvin) 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight 6500K Daylight
Lumens 1,700 Lumens 1,750 Lumens 1,800 Lumens 1,800 Lumens 1,750 Lumens
Efficiency (Lumens Per Watt) 140 LPW 145 LPW 150 LPW 150 LPW 145 LPW
Lighting Technology LED
Wattage 12 Watts
Voltage 120-277VAC
Input Current 105mA @120V, 50mA @277V
Ballast Operation Type B Ballast Bypass
Wiring Method Single or Double Ended
Bulb Shape T8
Base G13 Medium Bi-Pin
Beam Angle 240 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
Lens Frosted
Fluorescent Equivalent F32T8
Operating Temperature -20ºC/-4ºF to 45ºC/113ºF
Dimensions 47.20" MOL x 1.10" MOD
Certifications DLC Listed, RoHS Compliant, cULus Listed
DLC Product ID S-ZY34HA
Environment Dry Location
Warranty 5 Year Limited



Keystone Color Selectable LED Bypass T8 Tube Light Specification Sheet

Keystone Color Selectable LED Bypass T8 Tube Light DLC Product Listing

 
