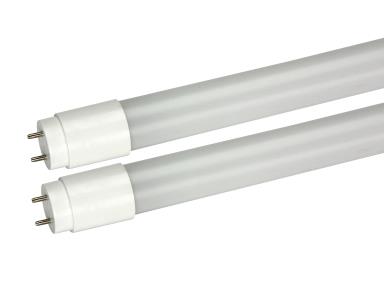

MaxLite LED T8 Linear Replacement Lamps are the ideal energy saving choices when upgrading traditional linear T8 or T12 fluorescent lamps in fixtures containing standard G13 (medium bi-pin) sockets. The LED T8 lamps are designed to provide appropriate light levels while utilizing a dedicated internal driver. Tested to NSF Standards, these lamps carry the ETL Sanitation Mark and are suitable for use in an environment where food intended for human consumption is produced. Tested to NSF Standards, these lamps carry the ETL Sanitation Mark and are suitable for use in an environment where food intended for human consumption is produced.
MaxLite tube lights has a power factor over 90 and consumes just 12.5 watts of 120 to 277 volt 50/60 Hz energy. The DesignLights Consortium Listed, UL Listed, LM79 and LM80 verified LED T8 tube retrofits are designed to provide appropriate light levels while utilizing a dedicated internal driver and non-shunted G13 medium bi-pin lamp holders.
The MaxLite L12.5T8SE4(XX)-CG is a non-dimmable LED light bulb and it will produce 1,650-1,800 lumens of light output (that's an awesome 132-144 lumens per watt). They have an opal (frosted) lens, a CRI of 80, a 330 degree beam angle and a rated life of up to 50,000 hours based on L70. They are a perfect choice for use with MaxLite's LED Lamp Ready Fixtures.
| Manufacturer | MaxLite | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| MPN | L12.5T8SE435-CG | L12.5T8SE440-CG | L12.5T8SE450-CG |
| SKU | 14098989 | 14098990 | 14098991 |
| UPC | 767627951077 | 767627951190 | 767627951206 |
| Lumens | 1,650 Lumens | 1,750 Lumens | 1,800 Lumens |
| Efficiency (Lumens Per Watt) | 132 LPW | 140 LPW | 144 LPW |
| DLC Product ID | PLZCGAR0PECR | PL2CXWDWYU3K | PL94QF9X0897 |
| Lighting Technology | LED | ||
| Wattage | 12.5 Watts | ||
| Voltage | 120V-277V | ||
| Frequency | 50/60 Hz | ||
| Ballast Operation | Type B; Ballast Bypass | ||
| Wiring Method | Single Ended | ||
| Bulb Shape | T8 | ||
| Base | G13 Medium Bi-Pin | ||
| Beam Angle | 330 Degrees | ||
| Rated Life | 50,000 Hours | ||
| CRI (Color Rendering Index) | 82 CRI | ||
| Power Factor | ≥0.90 | ||
| Lens | Opal Coated Glass | ||
| Operating Temperature | -4°F to 113°F | ||
| Certifications | ETL Sanitation, Enclosed Fixture Rated, DLC Listed | ||
| Environment | Damp Location | ||
| Warranty | 5 Year Standard | ||
MaxLite Single Ended Ballast Bypass LED Tube Light Specification Sheet
MaxLite Single Ended Ballast Bypass LED Tube Light Installation Instructions
MaxLite Single Ended Ballast Bypass LED Tube Light 3500K DLC Product Listing
MaxLite Single Ended Ballast Bypass LED Tube Light 4000K DLC Product Listing
MaxLite Single Ended Ballast Bypass LED Tube Light 5000K DLC Product Listing
