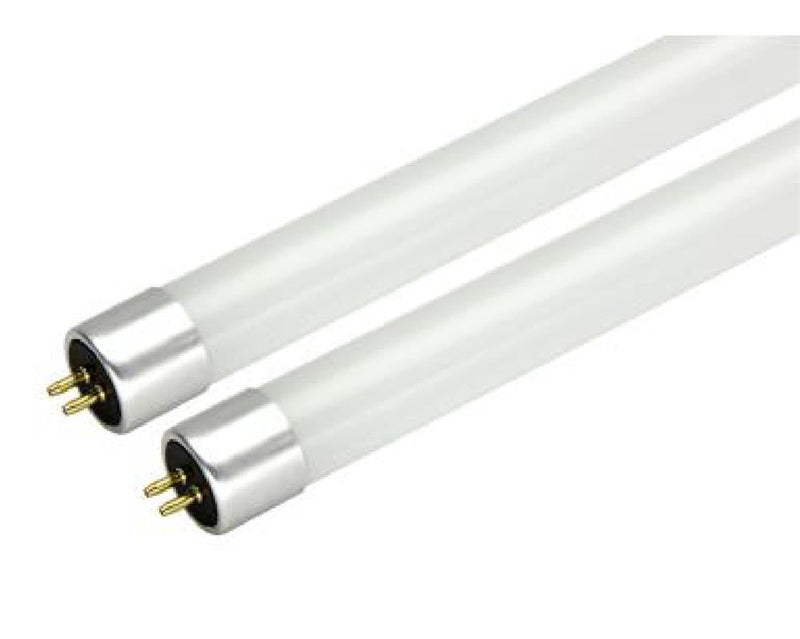

4 Foot 13 Watt Single/Double Ended UL Listed Ballast Bypass T5HO LED Tube Light

MaxLite SKU: 105051
MaxLite 4 Foot 13 Watt Single/Double Ended UL Listed Ballast Bypass T5HO LED Tube Light 3500K Bright White

4 Foot 13 Watt Single/Double Ended UL Listed Ballast Bypass T5HO LED Tube Light

MaxLite SKU: 105051
  • DLC Listed
Regular price $12.58
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

MaxLite LED T5s are energy-saving replacements for traditional linear T5 fluorescents in fixtures w/ non-shunted G5 (mini bi-pin) sockets. Easily retrofit into most common linear fixtures w/ shunted/non-shunted lamp holders. Ballast Bypass LED T5s save up to 46% energy vs 28 watt fluorescents, have single/double-ended wiring options & consume up to 50% less energy than standard fluorescents.

The MaxLite 105051 (L13T5DE435-CG), 13W LED lamp retrofits linear fluorescent T5 fixtures in residential, commercial, and retail applications, reducing maintenance and energy use. Rated for dry or damp locations with a temp range of -4°F to 113°F, this MaxLite bulb is RoHS compliant, has a 3500K Bright White color temperature with >90 power factor, and consumes 13W/120-277V 50/60 Hz. An all-glass construction with 0.1mm PET coating is ETL Listed and non-dimmable. Output is 1,600 lumens, frosted lens, 80 CRI, 280° beam angle, and up to 50,000 hr L70 life. These LED retrofit bulbs carry a 5 Year Limited Warranty. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.

**Note: Though nominally referred to as a T5, this lamp has a T6 diameter. Please check the dimensions of your enclosed fixture before ordering.**

Manufacturer MaxLite
SKU 105051
UPC 767627002557
Color Temperature (Kelvin) 3500K Bright White
Lumens 1,600 Lumens
Efficiency (Lumens Per Watt) 123 LPW
Lighting Technology LED
Wattage 13 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Single/Double Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 280 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.90
Housing White
Construction Shatter-Proof Glass
Lens Frosted
Fluorescent Equivalent 28 Watt
Operating Temperature −20ºC to 45ºC
Dimensions 46" MOL x 0.80" MOD
Certifications cULus, ETL Sanitation, DLC Listed
Environment Damp Location
Warranty 5 Year Limited
