4 Foot 13 Watt Single or Double Ended Wiring T5 LED Glass Tube

Satco SKU: S28690

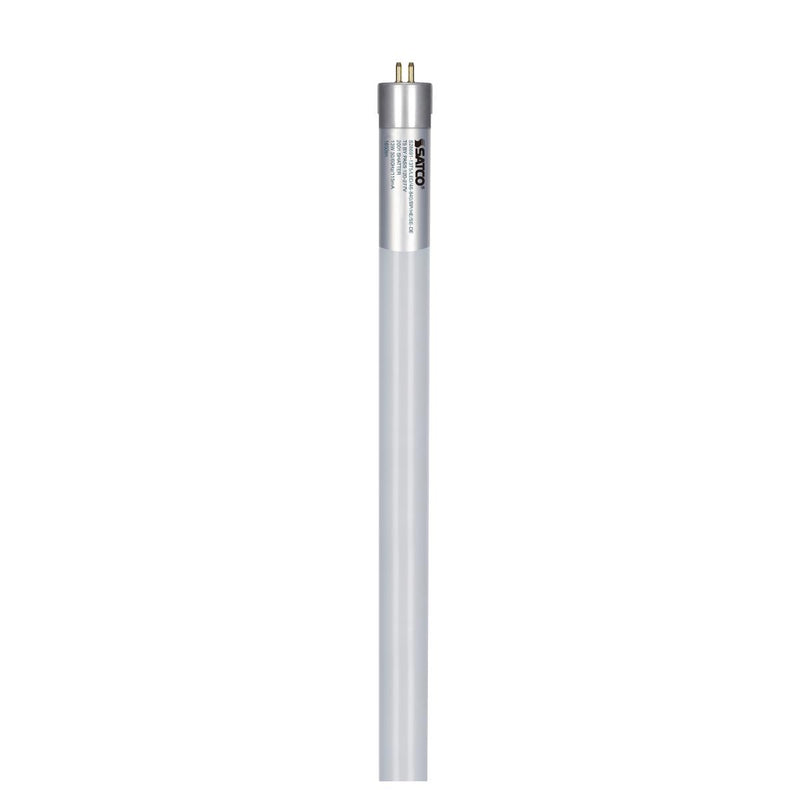

Satco 4 Foot 13 Watt Single or Double Ended Wiring T5 LED Glass Tube 3500K Bright White

4 Foot 13 Watt Single or Double Ended Wiring T5 LED Glass Tube

Satco SKU: S28690
  • Enclosed Fixture Rated, NSF Listed, DLC Listed
Regular price $13.96
/
Color Temp
Please call to confirm availability.
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

Fluorescent F28T5 Cross Reference:

Sylvania FP28/8(XX)/ECO
GE F28W/T5/8(XX)/ECO
Generic F28T5/8(XX)
Halco F28T5/8(XX)/ECO/IC
Phillips F28T5/8(XX)/ALTO
Satco F28T5/835/ENV or FP28T5/8(XX)/ECO
Ushio F28T5/8(XX)
Westinghouse F28T5/8(XX)

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

Satco's Shatterproof DLC qualified LED T5 tubes feature shatterproof coated glass and frosted lens that eliminates pixilation. PET coating ensures no broken glass and it's ETL Sanitation Listed NSF/ANSI Standard 2 - Food Equipment approved. No ballast or driver needed for double-ended wiring ballast bypass. Get maximum utility rebates & maintenance savings.

This part number S2869X (13T5/LED/46-8XX/BP/HE/SE-DE) comes in 3500K Bright White, 4000K Cool White and 5000K Daylight, offers a Power Factor >0.9 and 13 watts of 120-277 volt energy. Suitable for use in dry or damp locations. These LED T5 replacement tubes are non-dimmable w/ 1,600-1,700 lumens, 83 CRI, and a 50,000-hour rated life. Boasting a 240° beam angle and G5 miniature bi-pin base, it's ideal for retrofitting.

This Satco T5 LED retrofit is 48" long and .83" in diameter and comes with a 5 Year Limited Warranty. It retrofits existing F28T5 linear fluorescent fixtures, saving energy and reducing maintenance costs in a variety of applications, including residential, commercial, retail displays, and hotels/motels/resorts. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.

**Note: Though nominally referred to as a T5, this lamp has a T6 diameter. Please check the dimensions of your enclosed fixture before ordering.**

Manufacturer Satco
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 6500K Daylight
MPN 13T5/LED/46-835/BP/HE/SE-DE 13T5/LED/46-840/BP/HE/SE-DE 13T5/LED/46-850/BP/HE/SE-DE
SKU S28690 S28691 S28692
UPC 045923286902 045923286919 045923286926
Lumens 1,600 Lumens 1,650 Lumens 1,700 Lumens
Efficiency (Lumens Per Watt) 123 LPW 126 LPW 130 LPW
DLC Product ID PLYHW51UWNHJ PL3XLAY3AKAW PLJ1EPDXDBTD
Lighting Technology LED
Wattage 16 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Single/Double Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 240 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 83 CRI
Power Factor 0.9
Construction Shatter-Proof Glass
Lens Frosted
Fluorescent Equivalent 28 Watt
Operating Temperature −25ºC to 45ºC
Dimensions 48" MOL x 0.83" MOD
Certifications Title 20 Exempt, Title 24 Exempt, Enclosed Fixture Rated, NSF Listed, DLC Listed
Environment Damp Location
Warranty 5 Year Limited

Specification Sheet - 3500K

Specification Sheet - 4000K

Specification Sheet - 5000K

Installation Instructions
