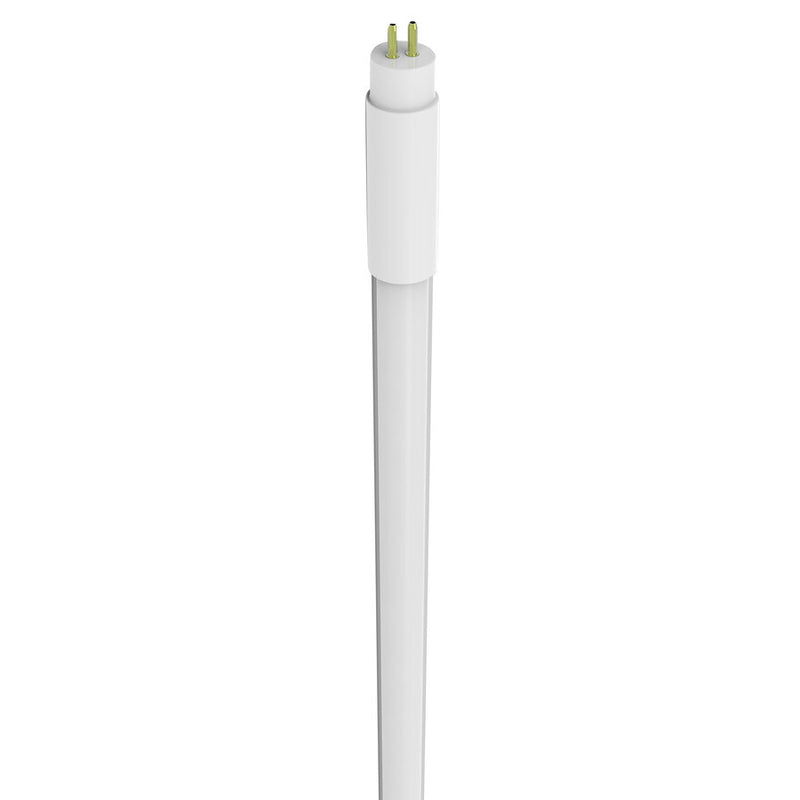

4 Foot 24 Watt T5HO Double Ended Bypass Tube Light

EiKO SKU: 11045
EiKO 4 Foot 24 Watt T5HO Double Ended Bypass Tube Light 3500K Bright White

4 Foot 24 Watt T5HO Double Ended Bypass Tube Light

EiKO SKU: 11045
  • Enclosed Fixture Rated, NSF Listed, DLC Listed
Regular price $13.62
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

EiKO LED T5 lamps with internal driver are ideal energy-savers for upgrading traditional linear T5 fluorescents. Ballast-bypass design leads to 50% energy savings vs. 54W fluorescents. Double-ended powered LED tubes, no non-shunted sockets needed; both sides must be powered.

EiKO part number LED24WT5HO/46/8(XX)-G9D, is DLC Listed, has a power factor over 90 and consumes just 24 watts of 120 to 277 volt 50/60 Hz energy. The EiKO tubes have an all glass construction with a 0.1mm thick PET coating (polyethylene terephthalate), which is ETL Listed, is a non-dimmable LED light bulb and it will produce 3,300-3,500 lumens of light output. They have a frosted lens, a CRI of 80, a 240 degree beam angle and a rated life of up to 50,000 hours based on L70.

The LED24WT5HO/46/8(XX)-G9D 24 watt LED lamp has been designed to retrofit existing linear fluorescent T5 installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. These T5 LED bulbs are rated for use in either dry or damp locations, has an operating temperature range of -4 degrees Fahrenheit to 113 degrees Fahrenheit and are RoHS compliant. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.


Manufacturer EiKO
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
MPN LED24WT5HO/46/835-G9D LED24WT5HO/46/840-G9D LED24WT5HO/46/850-G9D
SKU 11045 11046 11047
UPC 031293110459 031293110466 031293110473
Lumens 3,300 Lumens 3,500 Lumens 3,500 Lumens
Efficiency (Lumens Per Watt) 137.5 LPW 145.8 LPW 145.8 LPW
Lighting Technology LED
Wattage 24 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Double Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 230 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.90
Construction Glass
Lens Frosted
Fluorescent Equivalent 54 Watt
Operating Temperature −20ºC to 40ºC
Dimensions 45.8" MOL x 0.60" MOD
Certifications Enclosed Fixture Rated, NSF Listed, DLC Listed
Environment Dry Location
Warranty 5 Year Limited
