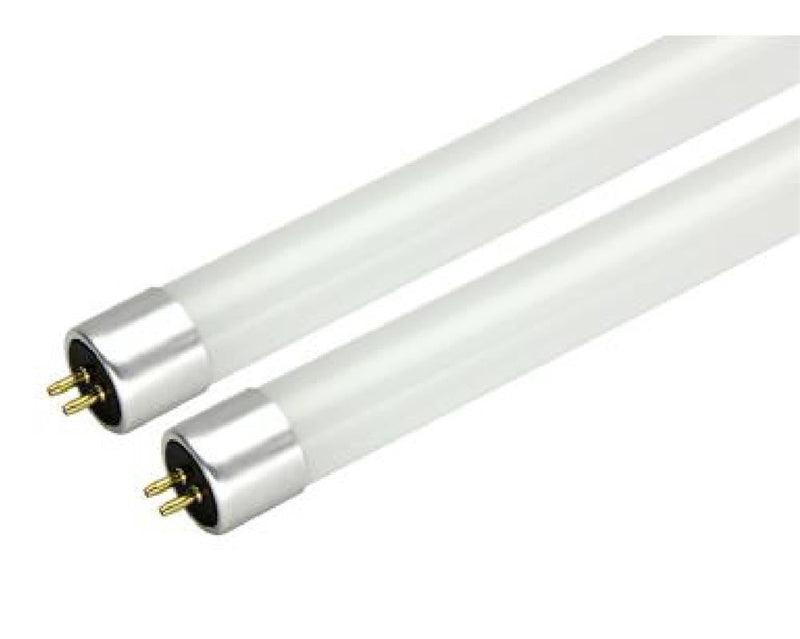

4 Foot 25 Watt Single/Double Ended UL Listed Ballast Bypass T5HO LED Tube Light

MaxLite SKU: 105054
MaxLite 4 Foot 25 Watt Single/Double Ended UL Listed Ballast Bypass T5HO LED Tube Light 3500K Bright White

4 Foot 25 Watt Single/Double Ended UL Listed Ballast Bypass T5HO LED Tube Light

MaxLite SKU: 105054
  • DLC Listed
Regular price $16.26
/
Color Temp
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.

MaxLite LED T5s are energy-saving replacements for traditional linear T5 fluorescents in fixtures w/ non-shunted G5 (mini bi-pin) sockets. Easily retrofit into most common linear fixtures w/ shunted/non-shunted lamp holders. Ballast Bypass LED T5s save up to 46% energy vs 54 watt fluorescents, have single/double-ended wiring options & consume up to 50% less energy than standard fluorescents.

These MaxLite 25W LED lamp retrofits linear fluorescent T5 fixtures in residential, commercial, and retail applications, reducing maintenance and energy use. Rated for dry or damp locations with a temp range of -4°F to 113°F, this MaxLite bulb is RoHS compliant, has >90 power factor, and consumes 25W/120-277V 50/60 Hz. An all-glass construction with 0.1mm PET coating is ETL Listed and non-dimmable. Output is 3,400-3,500 lumens, frosted lens, 80 CRI, 280° beam angle, and up to 50,000 hr L70 life. These LED retrofit bulbs carry a 5 Year Limited Warranty. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.

**Note: Though nominally referred to as a T5, this lamp has a T6 diameter. Please check the dimensions of your enclosed fixture before ordering.**

Manufacturer MaxLite
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White
MPN L25T5DE435-CG L25T5DE440-CG
SKU 105054 105055
UPC 767627002588 767627002595
Lumens 3,400 Lumens 3,500 Lumens
Efficiency (Lumens Per Watt) 136 LPW 140 LPW
DLC Product ID PL2VTV09DCUV PLT95146UQXH
Lighting Technology LED
Wattage 25 Watt
Voltage 120-277V
Frequency 50/60Hz
Ballast Operation Type B Bypass
Wiring Method Single/Double Ended
Bulb Shape T5
Base G5 Mini Bi-Pin
Dimmable Non-Dimmable
Beam Angle 280 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.90
Housing White
Construction Shatter-Proof Glass
Lens Frosted
Fluorescent Equivalent 54 Watt
Operating Temperature −20ºC to 45ºC
Dimensions 46" MOL x 0.80" MOD
Certifications cULus, ETL Sanitation, DLC Listed
Environment Damp Location
Warranty 5 Year Limited
