Satco’s LED Flicker-Free Lamps offer smooth, continuous light with less than 2% flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extending the versatility of these lamps, they are 120V-277V range voltage compatible in ballast bypass configurations, and allow for five CCT selection at the time of installation to customize the light output to the environment.

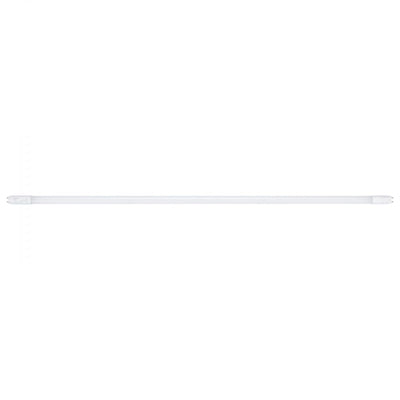

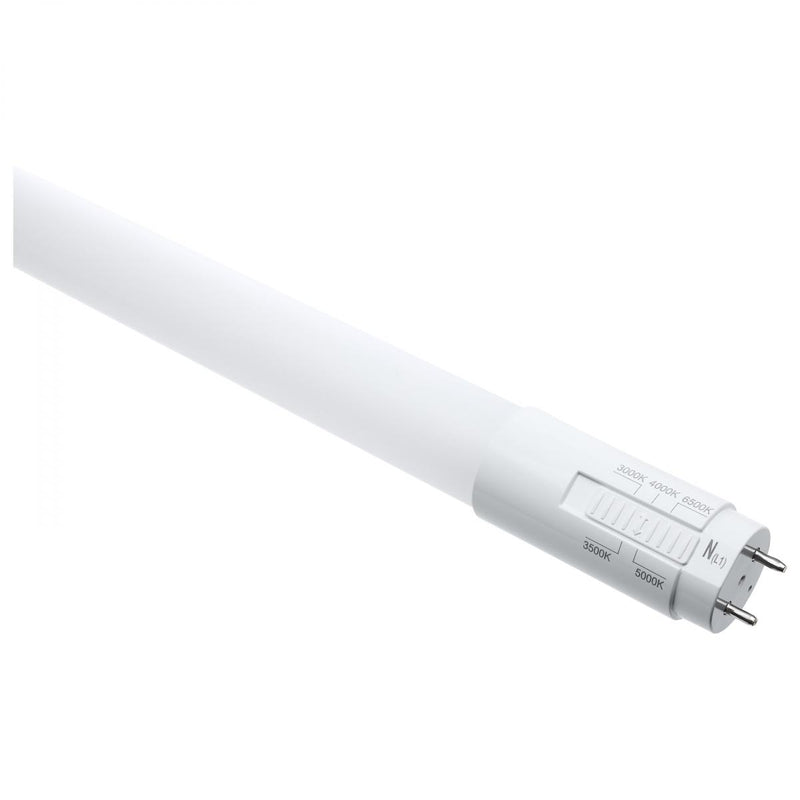

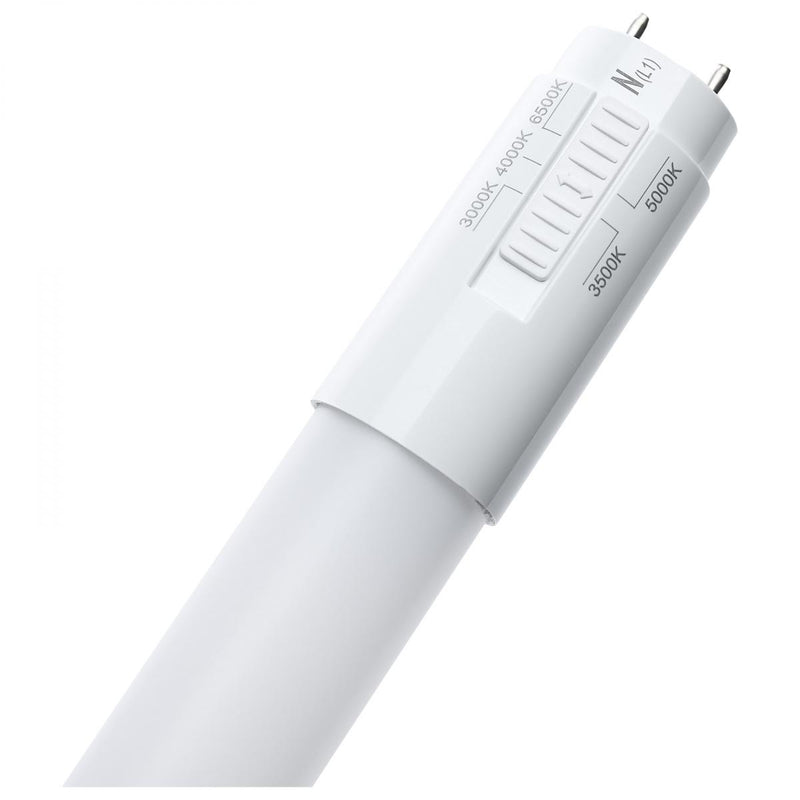

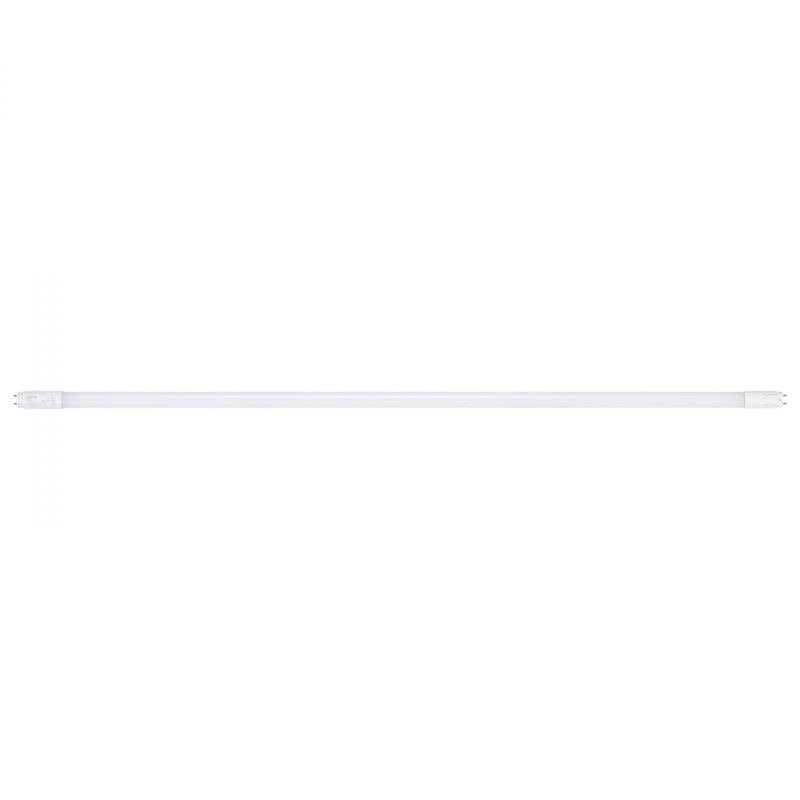

This item is the Satco part number S11662 (9.5T8/LED/48-5CCT/DIM/FF/BP). Each S11662 lamp consumes just 9.5 watts of 120-277V input power - saving you 40% in energy costs! These T8 fluorescent to LED retrofit bulbs have a 160 degree beam angle, generating between 1,600-1,650 lumens - That's an awesome 168-173 lumens per watt of 83 CRI light. They are dimmable, measuring 1.0" diameter by 47.2" in Maximum Overall Length (MOL) and are DLC Listed. The Satco S11662 tube has a 50,000-hour lifetime and they carry a five year warranty.
Manufacturer | Satco |
MPN | 9.5T8/LED/48-5CCT/DIM/FF/BP |
SKU | S11662 |
UPC | 045923116629 |
Lighting Technology | LED |
Wattage | 9.5 Watts |
Voltage | 120-277V |
Frequency | 50/60Hz |
Color Temperature (Kelvin) | 3000/3500/4000/5000/6500K |
Lumens | 1,600/1,625/1,650/1,650/1,625 Lumens |
Efficiency (Lumens Per Watt) |
120/125/129 LPW |
Ballast Operation | Type B Ballast Bypass |
Bulb Shape | T8 |
Base | G13 Medium Bi-Pin |
Dimmable | Yes, TRIAC Dimming (120V Only) |
Lens | PET Coated Shatterproof Frosted Glass |
Beam Angle | 160 Degrees |
Rated Life | 50,000 Hours |
CRI (Color Rendering Index) | 83 CRI |
Power Factor | 0.9 |
THD (Total Harmonic Distortion) | <20% |
Fluorescent Equivalent | 32 Watts |
Operating Temperature | -20°C (-4°F) to 45°C (113°F) |
Dimensions | 47.2" MOL x 1" MOD |
Nominal Length | 48 Inches |
Certifications | Enclosed Fixture Rated, DLC Listed, NSF Approved |
DLC Product ID | S-89TDFD |
Environment | Damp Location |
Warranty | 5 Year Limited |
