Orion Energy Systems is leading the transformation of commercial and industrial buildings with state-of-the-art energy efficient lighting systems and retrofit lighting solutions. They manufacture and market a cutting edge portfolio of products encompassing LED solid state lighting and high intensity fluorescent lighting under the Orion Lighting name. Patriot Slimline Dimensions is proud to introduce their Harris Patriot Slimline LED High Bay Series. These feature-rich, entry-level LED high bay lights provide ultimate flexibility, whether dealing with tight spaces or jobs that require a high lumen output. They will fit into places a normal high bay won't, while providing more energy savings than linear fluorescent and HID fixtures. They are a unique solution for new construction or retrofit applications with multiple different options and configurations.

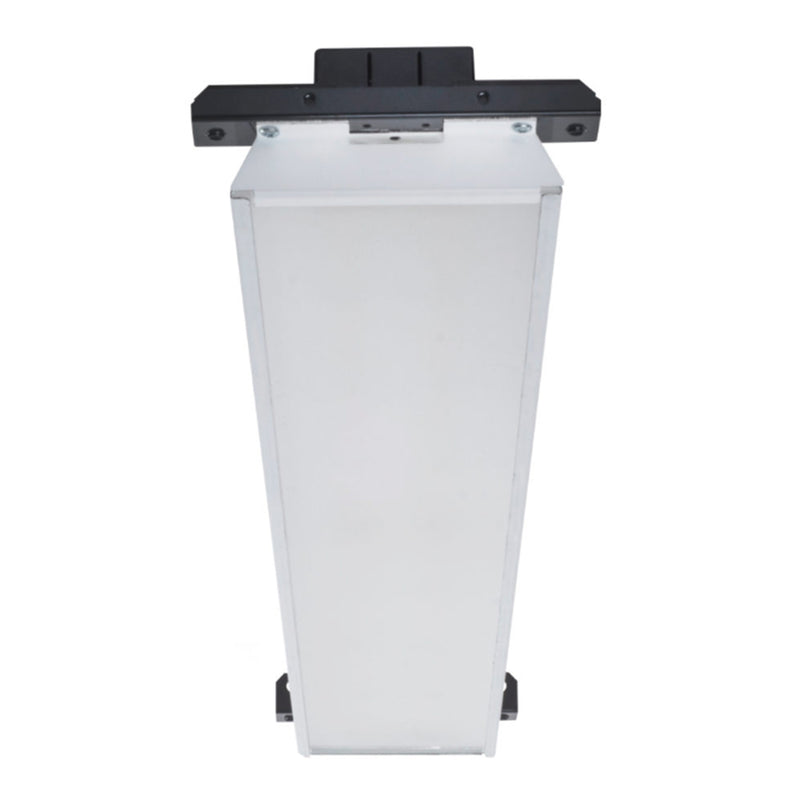

The 134 Watt Orion Lighting HBHS1C1OAUNVFDXX850LFAHW-SP LED High Bay is a Harris Patriot Slimline design, at only 6.5 inches wide, making it ideal for aisle or open area illumination. It is designed to run on universal voltage (120-277V), it is fully dimmable with 0-10V dimming and has a color temperature of 5000K (Daylight). At only 134 watt consumption with 19,120 lumen output, it can replace up to 400W metal halide (HID) high bay fixtures and 8 lamp T8 linear fluorescent high bays, resulting in an impressive 77% energy reduction. This damp location UL listed high bay LED lighting fixture is manufactured in the USA making them Buy American Act Compliant and has a lifespan of 100,000 hours, with a 5 year warranty included.
The lightweight, I-frame aluminum body of the HBHS1C1OAUNVFDXX850LFAHW-SP allows for single person installation. A patented modular design provides superior thermal management and enables ease of field installation for upgrades, such as a sensor, end caps, a wire guard, or altering illumination settings. This specific model needs to be hardwired and comes with an acrylic frosted lens.
| Manufacturer | Orion Lighting |
| MPN | HBHS1C1OAUNVFDXX850LFAHW-SP |
| SKU | HBHS1C1OAUNVFDXX850LFAHW-SP |
| Lighting Technology | LED |
| Wattage | 134 Watts |
| Voltage | 120-277V |
| Color Temperature (Kelvin) | 5000K Daylight |
| Lumens | 19,120 Lumens |
| Efficiency (Lumens Per Watt) | 143 lm/W |
| Dimmable | Yes, 0-10V Dimming |
| Rated Life | 100,000 Hours |
| CRI (Color Rendering Index) | >80 |
| Power Factor | >0.90 |
| Housing | Aluminum |
| Lens | Acrylic Frosted Lens |
| Metal Halide Equivalent | 400W Metal Halide |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Dimensions | 47.28" L x 6.50" W x 2.84" H |
| Certifications | cULus, BAA Compliant |
| Environment | Damp Location |
| Warranty | 5 Year Warranty |
