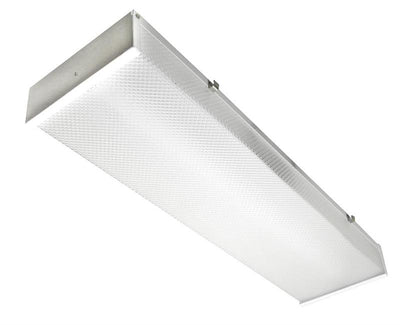

4 Foot Two Lamp LED Ready Wraparound Fixture - Housing Only - Tubes Sold Separately

MaxLite SKU: 75304
MaxLite 4 Foot Two Lamp LED Ready Wraparound Fixture - Housing Only - Tubes Sold Separately

4 Foot Two Lamp LED Ready Wraparound Fixture - Housing Only - Tubes Sold Separately

MaxLite SKU: 75304
Regular price $55.43
/
HOUSING ONLY - Tubes Sold Seperately
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

Designed to create a complete UL-listed LED ready fixtures by the most economical means, MaxLite introduces the LED Lamp Ready Fixture Series as a companion to its line of LED Linear T8 replacement lamps. The fixtures are compatible with internal driver LED T8 replacement lamps and come pre-wired for contractor-ready installation as new or remodel fixtures.

LED Ready fixtures enable installers to avoid the need to bypass the ballast and adopt the energy-saving benefits of LED technology while keeping the UL-listing of the product intact. The Lamp Ready series was developed in response to a strong market demand for a new construction housing that is UL-listed specifically for LED replacement lamps that do not need a ballast. The UL certification mark indicates the product has been tested to meet globally accepted standards of product safety set forth by Underwriters Laboratories, in pairing an internally driven LED lamp with a dedicated new construction housing. In addition to simplifying the upgrade process for the contractor, the fixtures offer ease of maintenance and peace of mind for the end-user, who is able to continue to re-lamp the housings with future generations of LED T8 lamps.

The MaxLite LSU2XT8USE4806 (75304) LED ready wraparound series provides Architects, Specifiers, and Buyers with a UL listed fixture engineered to operate the latest single ended LED T8 lamps on the market. Offering a classic prismatic diffuser, with post painted finish, these fixtures come pre-wired for single ended operating LED lamps for contractor ready installation as new or remodel fixtures. Designed for (2) LED single ended lamps (lamps supplied separately) and supplied with ONLY Non-Shunted sockets, the MaxLite LED T8 lamp ready fixtures are an easy wrap around fixture retrofit.

The LED ready wraparound housing (fixture with sockets only) is a great choice for your lighting applications. The LSU2XT8USE4806 wraparound LED T8 housing fixture operates off of standard 120 Volts through 277 Volts . They are constructed with 22ga steel, PMMA acrylic prismatic diffuser and surface mount using the integral key holes. The physical dimensions of the LSU2XT8USE4806 fixture are 2.5" tall by 6.75" wide by 48.75" long. This LED T8 ready wraparound lighting fixture is UL and damp listed and carries an indoor (5) year limited warranty.

Typical Applications

Typical applications for these energy saving wraparound LED ready fixture housings include exhibition halls, gyms, churches, synagogues, schools and warehouses. All around the country, energy savings are being realized by replacing old, high wattage incandescent and fluorescent lamps, retrofitting existing HID fixtures or upgrading new installations with energy saving, LED wrap around fixtures. Start saving today.

Voltage 120-277 Volt
Housing Color
White
Number of Lamps
2 - T8 Bypass LED
Dimensions 48.75" L x 6.75" W x 2.5" H
Housing Construction 22 Gauge Steel
Certifications
cULuc, Damp Location
Warranty
5 Year Limited
