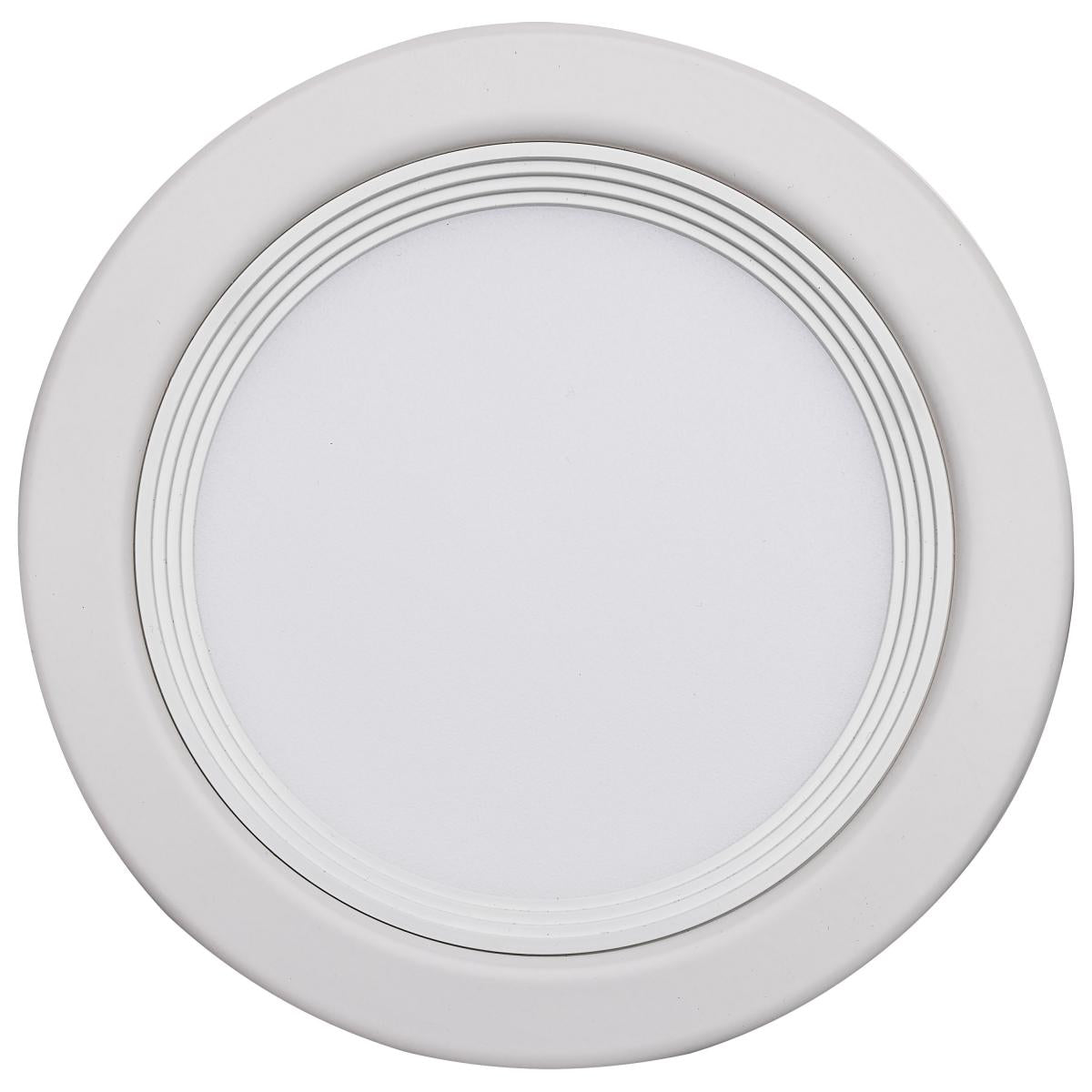

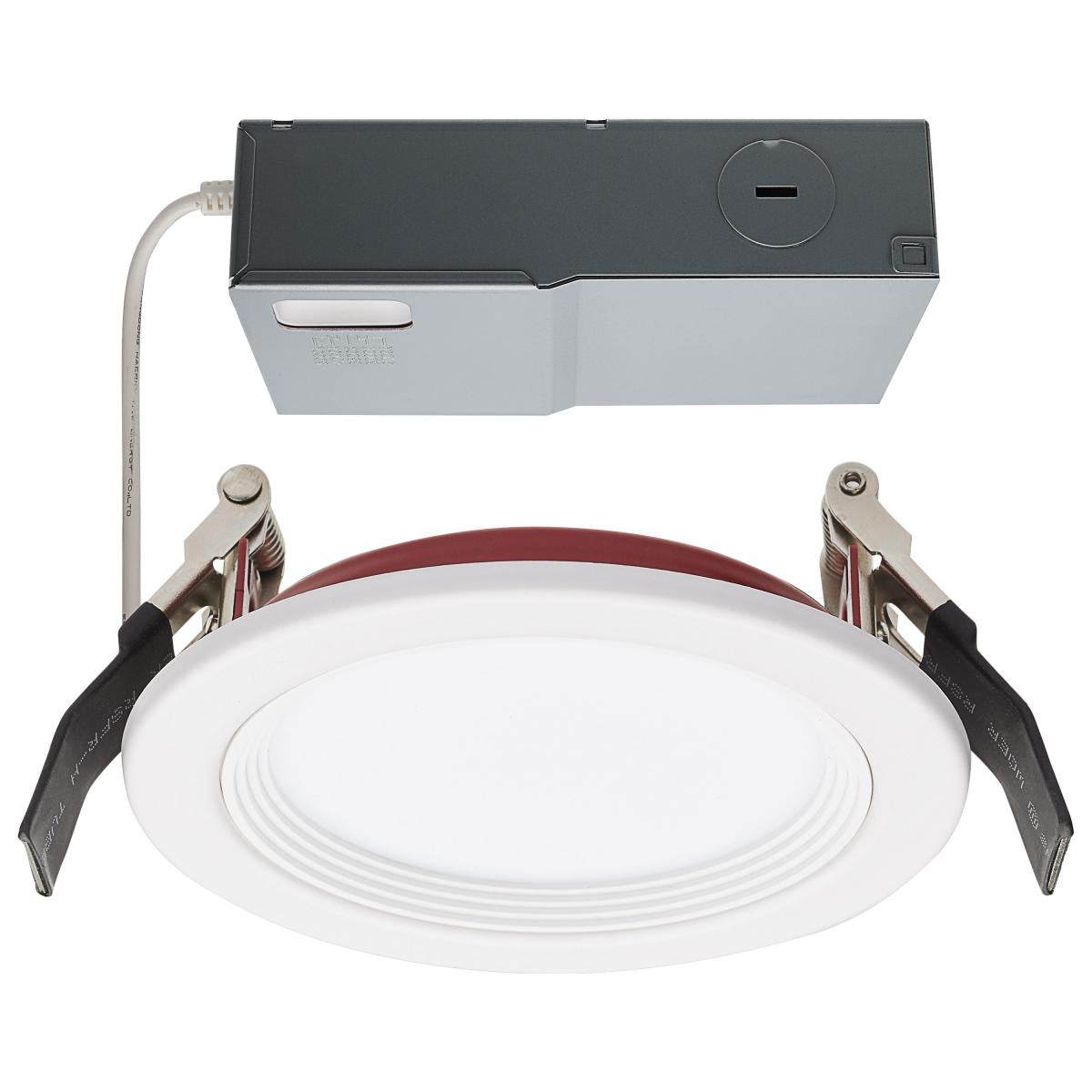

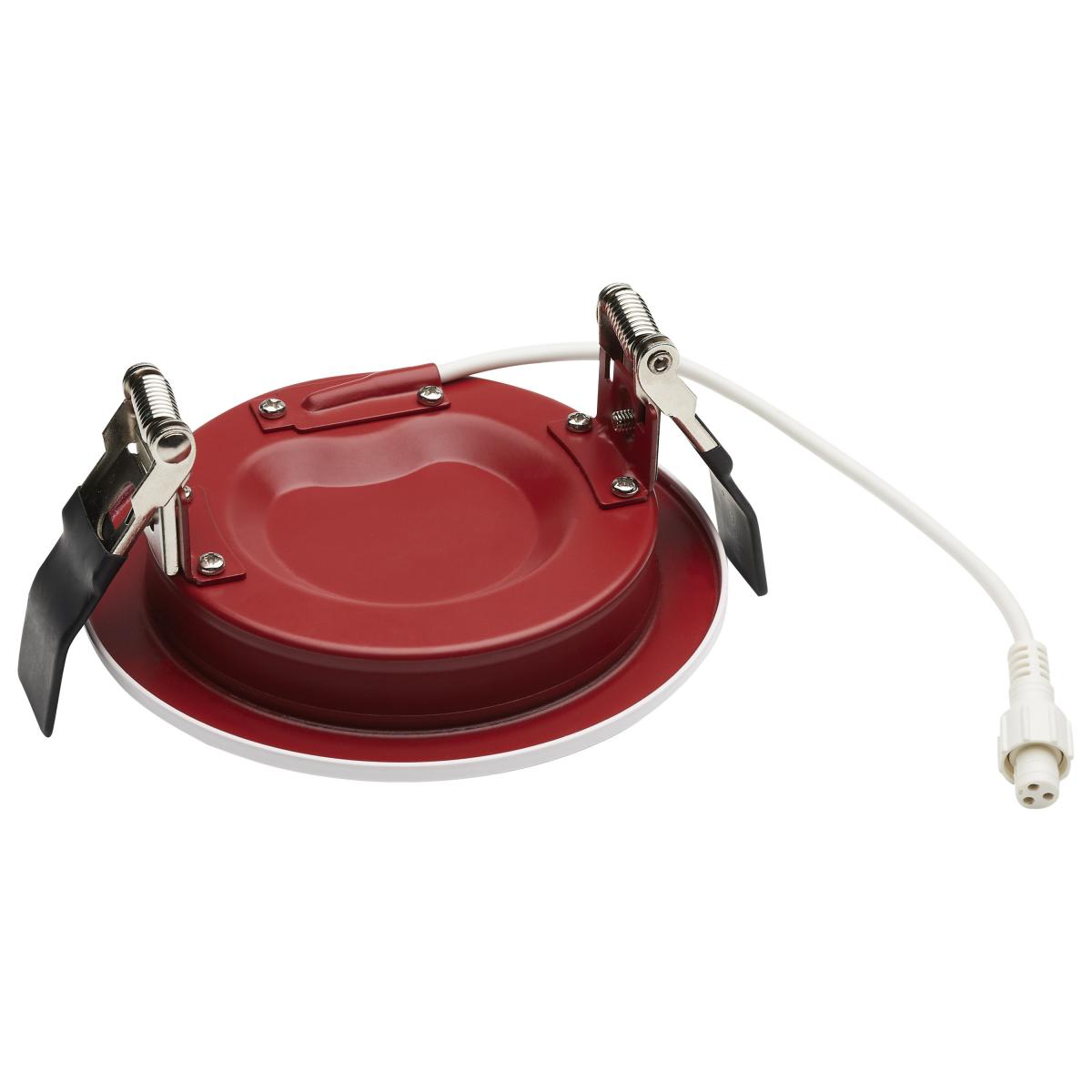

4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K

Satco SKU: S11865
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K
Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K

4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight 2700/3000/3500/4000/5000K

Satco SKU: S11865
/
Color Temp
Finish Color
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Options for LED recessed lighting fixtures, whether installing canless wafer light kits or retrofitting your current can lights, have grown rapidly. Canless wafer LED light kits can be used for remodel or new construction LED recessed ceiling downlight projects. LED retrofit downlights are installed utilizing your existing recessed can housing. Satco’s Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace of mind in residential, multi-family and commercial applications.

The Satco S11865 (10WLED/4/FR/CCT/SLF/RD/STB/RND) is a round dimmable 4 inch fire rated downlight, equipped with 5 color selectable options, 2700K (Warm White), 3000K (Warm White), 3500K (Bright White), 4000K (Cool White) and 5000K (Daylight). Satco's Fire Rated LED Downlights are ultra-efficient, super-easy and very affordable. These slim fit wafer LED downlight provide 800 lumens of brilliant illumination but only requires 10 watts of energy use. Rated for wet locations and carry a 5 year limited warranty.

Manufacturer Satco
MPN 10WLED/4/FR/CCT/SLF/RD/STB/RND
SKU S11865
UPC 045923118654
Lighting Technology LED
Wattage 10 Watts
Voltage 120V
Input Current 0.083A
Color Temperature (Kelvin) 2700/3000/3500/4000/5000K
Lumens 800 Lumens
Efficiency (Lumens Per Watt) 80 LPW
Dimmable Yes, Down to 10%
Beam Angle 110 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 90 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Finish Color White Trim/Red Backplate
Housing Steel
Lens Frosted Polycarbonate
Replacement Equivalent 60 Watts
Operating Temperature -20°C (-4°F) to 40°C (104°F)
Dimensions 4.75" W x 0.69" H

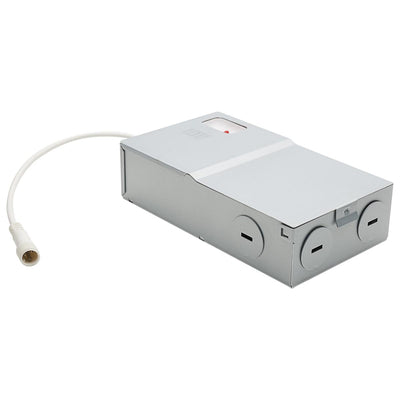

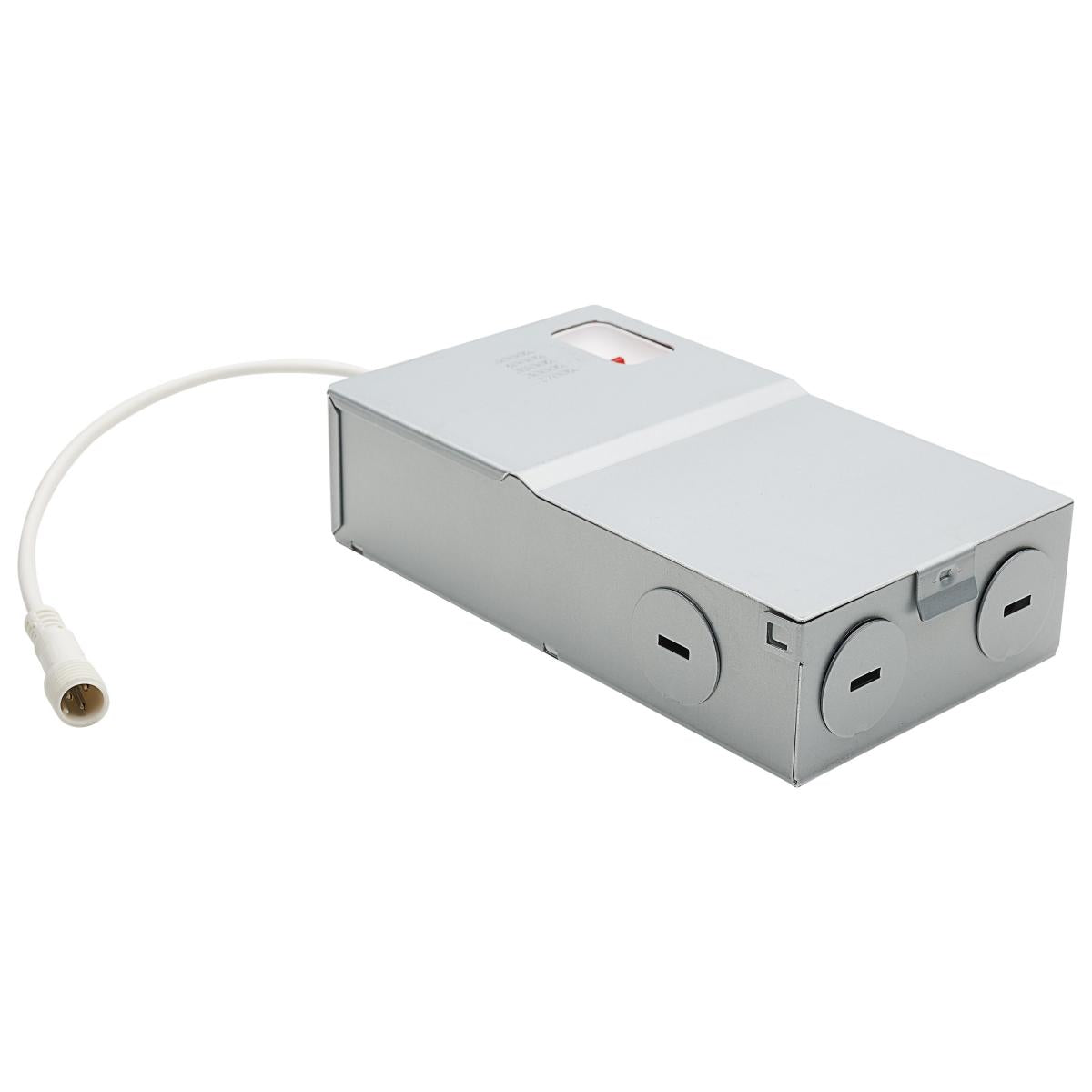

Driver Dimensions 4.50" x 3" x 1.25"
Certifications Energy Star, 2-Hour Fire Rated, FCC Compliant, Air Tight Rated
Environment Wet Location
Warranty 5 Year Limited


Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight Specification Sheet

Satco 4 Inch 10 Watt LED 120V Fire Rated Stepped Baffle Downlight Installation Instructions
