Options for LED recessed lighting fixtures, whether installing canless wafer light kits or retrofitting your current can lights, have grown rapidly. Canless wafer LED light kits can be used for remodel or new construction LED recessed ceiling downlight projects. LED retrofit downlights are installed utilizing your existing recessed can housing.

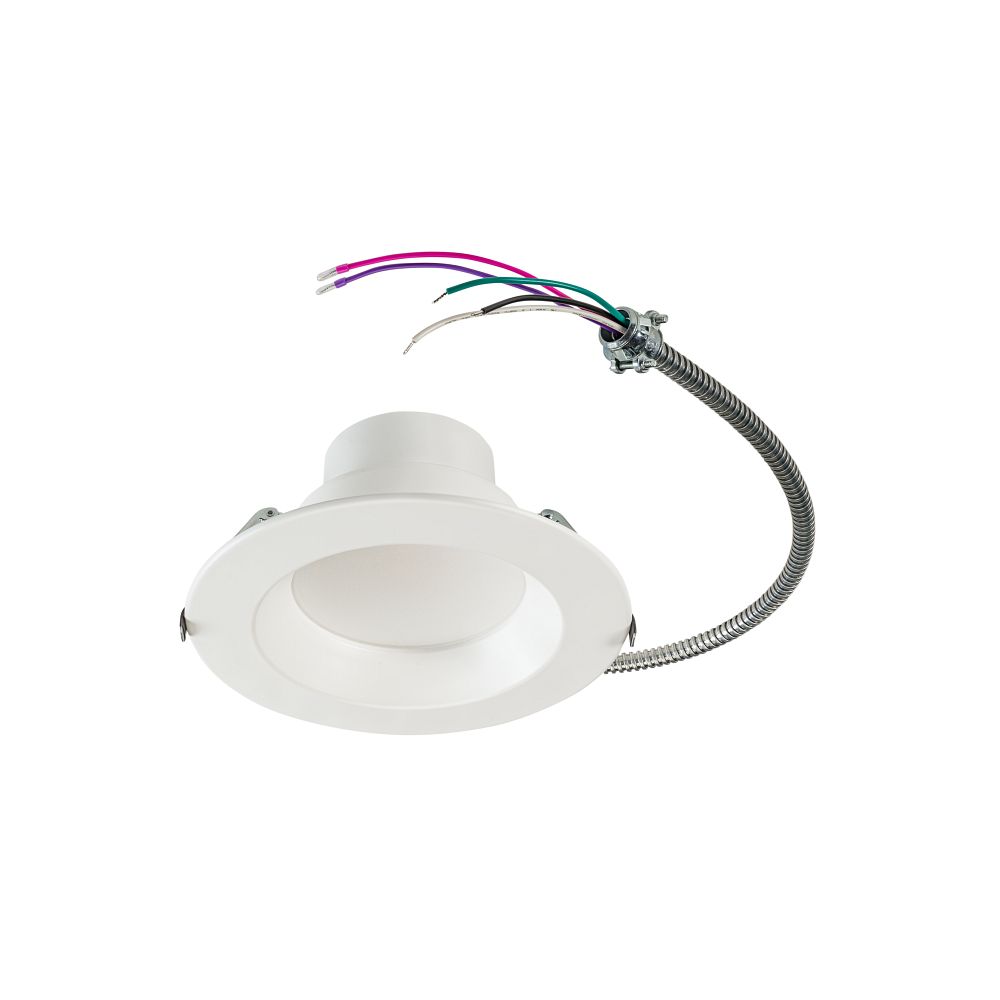

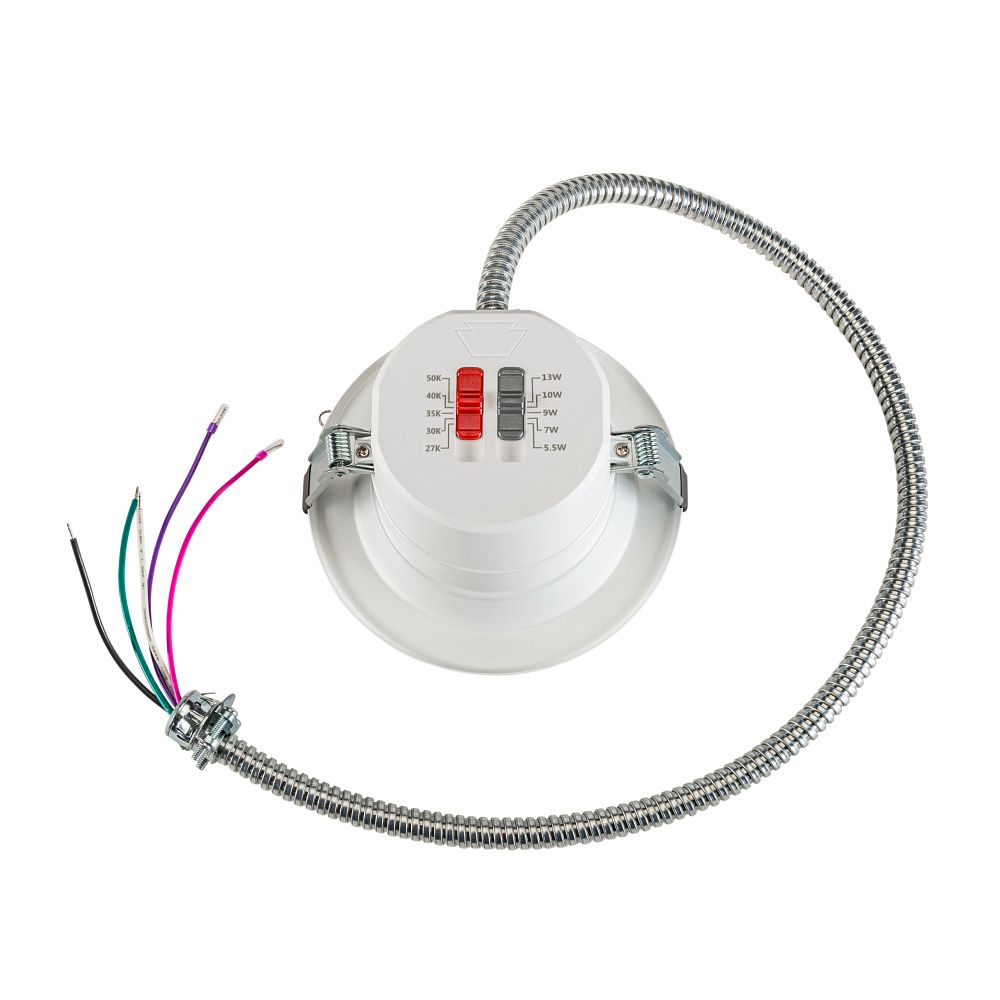

The 4 Inch KT-RDLED13PS-4A-9CSF-CDIM is a color and wattage selectable integrated driver downlight. The Advanta downlight can switch between three different color temperatures including: 2700K warm white, 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight with a CCT selection switch location at the top of the fixture. This LED downlight operated at 120-277 volt at a selectable wattage of 5.5/7/9/10/13 watts and generates 650-1,450 lumens respectively. With a CRI (color rendering index) of 90, this downlight is dimmable and is suitable for wet locations.
The Advanta line of downlights is designed for commercial needs and feature an integrated driver, deep recessed look, and available interchangeable trims. Replacing a legacy fixture is easy: Advanta fits into the existing frame kit, ties into the junction box, and provides dimmable, energy-saving LED light. They’re ideal for both new construction and retrofit, as an internal driver and integral whip allow for quick installation into new or existing junction box. With a deep recessed design, large metal trim, integrated driver, and flexible metal conduit for all wiring, Advanta downlights are ideal for commercial retrofit applications of existing 4-pin CFL based fixtures. When used in conjunction with related mounting accessories, Advanta is also a great choice for new construction builds.
| Manufacturer | Keystone Technologies | ||
| MPN | KT-RDLED13PS-4A-9CSF-CDIM | ||
| SKU | KT-RDLED13PS-4A-9CSF-CDIM | ||
| UPC | 843654168852 | ||
| Lighting Technology | LED | ||
| Wattage | 5.5/7/9/10/13 Watts | ||
| Voltage | 120-277V | ||
| Color Temperature (Kelvin) | 2700K/3000K/3500K/4000K/5000K | ||
| Lumens | 650-1,450 Lumens | ||
| Efficiency (Lumens Per Watt) | 96-125 LPW | ||
| Dimmable | 0-10V (10−100% dimming), Triac and ELV dimming (@120V only) | ||
| Rated Life | 80,000 Hours | ||
| CRI (Color Rendering Index) | 90 CRI | ||
| Power Factor | >0.90 | ||
| THD (Total Harmonic Distortion) | <25% | ||
| Operating Temperature | -25ºC/-13ºF to 40ºC/104ºF | ||
| Environment | IC Rated, Suitable for Wet Location | ||
| Certifications | Energy Star, ETL, RoHS, JA8/Title 24 Compliant | ||
| Warranty | 10 Year Limited | ||
Â
| Wattage | 5.5 Watts | ||||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 650 Lumens | 700 Lumens | 700 Lumens | 750 Lumens | 750 Lumens |
| Efficiency (Lumens Per Watt) | 109 LPW | 114 LPW | 115 LPW | 118 LPW | 118 LPW |
Â
| Wattage | 7 Watts | ||||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 800 Lumens | 815 Lumens | 850 Lumens | 900 Lumens | 900 Lumens |
| Efficiency (Lumens Per Watt) | 114 LPW | 116 LPW | 118 LPW | 121 LPW | 121 LPW |
Â
| Wattage | 9 Watts | ||||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 950 Lumens | 1,000 Lumens | 1,050 Lumens | 1,100 Lumens | 1,100 Lumens |
| Efficiency (Lumens Per Watt) | 106 LPW | 111 LPW | 117 LPW | 122 LPW | 122 LPW |
Â
| Wattage | 10 Watts | ||||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 1,100 Lumens | 1,100 Lumens | 1,150 Lumens | 1,250 Lumens | 1,250 Lumens |
| Efficiency (Lumens Per Watt) | 110 LPW | 110 LPW | 115 LPW | 125 LPW | 125 LPW |
Â
| Wattage | 13 Watts | ||||
| Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 1,250 Lumens | 1,300 Lumens | 1,400 Lumens | 1,450 Lumens | 1,450 Lumens |
| Efficiency (Lumens Per Watt) | 96 LPW | 100 LPW | 108 LPW | 112 LPW | 112 LPW |
Â
