4 Inch 6/8/10 Watt Regressed Smooth LED Wafer Downlight Retrofit 2700/3000/3500/4000/5000K

Keystone Technologies SKU: KT-LED10PSWD-4B-9CSF-DIM
Keystone Technologies 4 Inch 6/8/10 Watt Regressed Smooth LED Wafer Downlight Retrofit 2700/3000/3500/4000/5000K

4 Inch 6/8/10 Watt Regressed Smooth LED Wafer Downlight Retrofit 2700/3000/3500/4000/5000K

Keystone Technologies SKU: KT-LED10PSWD-4B-9CSF-DIM
  • Energy Star, IP65, Title 24 Compliant, Title 20 Compliant
Regular price $12.57
/
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Options for LED recessed lighting fixtures, whether installing canless wafer light kits or retrofitting your current can lights, have grown rapidly. Canless wafer LED light kits can be used for remodel or new construction LED recessed ceiling downlight projects. LED retrofit downlights are installed utilizing your existing recessed can housing.

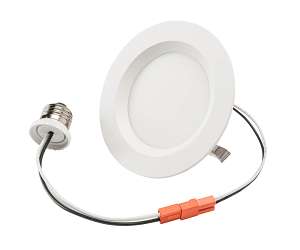

The 4 Inch KT-LED10PSWD-4B-9CSF-DIM is a color and wattage selectable residential wafer downlight. The Aviva downlight can switch between five different color temperatures including: 2700K warm white, 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight with a CCT selection switch location at the top of the fixture. This LED downlight operates at 120 volt at a 6/8/10 watts and generates between 530-885 lumens respectively. With a CRI (color rendering index) of 90, this residential retrofit is dimmable and is suitable for wet locations.

Aviva is a family of LED retrofit trims designed to easily retrofit existing screw-in based recessed light fixtures in residential and light-duty commercial applications. All Aviva downlights simply screw into the ceiling socket of any existing can light—no need for a junction box—while offering improved aesthetics vs. screw-in lamps. If you are looking to install a retrofit, the included quick-disconnect E26 base adaptor provides for easy installation. If the ceiling is vaulted, Aviva is available as a gimbal unit, so you can set the angle you need. Keystone Power Select and Color Select technology is available on select models, offering up to three wattage outputs and five color temperature settings.

Manufacturer Keystone Technologies
MPN KT-LED10PSWD-4B-9CSF-DIM
SKU KT-LED10PSWD-4B-9CSF-DIM
UPC 843654161877
Lighting Technology LED
Voltage 120V
Base E26 Medium
Dimmable Yes, TRIAC Dimming
Beam Angle 110 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 90 CRI
Power Factor >0.90
THD (Total Harmonic Distortion) <20%
Operating Temperature -20ºC/-4ºF to 40ºC/104ºF
Dimensions 5.062" Diameter x 1.625" H
Certifications Energy Star, Title 24 Compliant, Title 20 Compliant
Environment Wet Location
Warranty 5 Year Standard



Wattage 6 Watts
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 530 Lumens 540 Lumens 548 Lumens 542 Lumens 531 Lumens
Efficiency (Lumens Per Watt) 88 LPW 90 LPW 91 LPW 90 LPW 89 LPW



Wattage 8 Watts
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 690 Lumens 700 Lumens 711 Lumens 705 Lumens 691 Lumens
Efficiency (Lumens Per Watt) 86 LPW 88 LPW 89 LPW 88 LPW 86 LPW



Wattage 10 Watts
Color Temperature (Kelvin) 2700K Warm White 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 840 Lumens 870 Lumens 885 Lumens 877 Lumens 841 Lumens
Efficiency (Lumens Per Watt) 84 LPW 87 LPW 89 LPW 88 LPW 84 LPW
