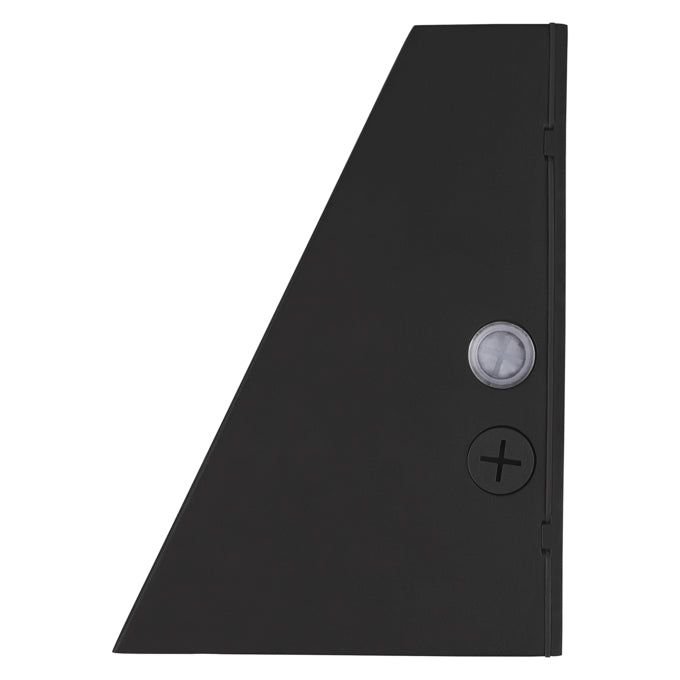

Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K Selectable Black
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K

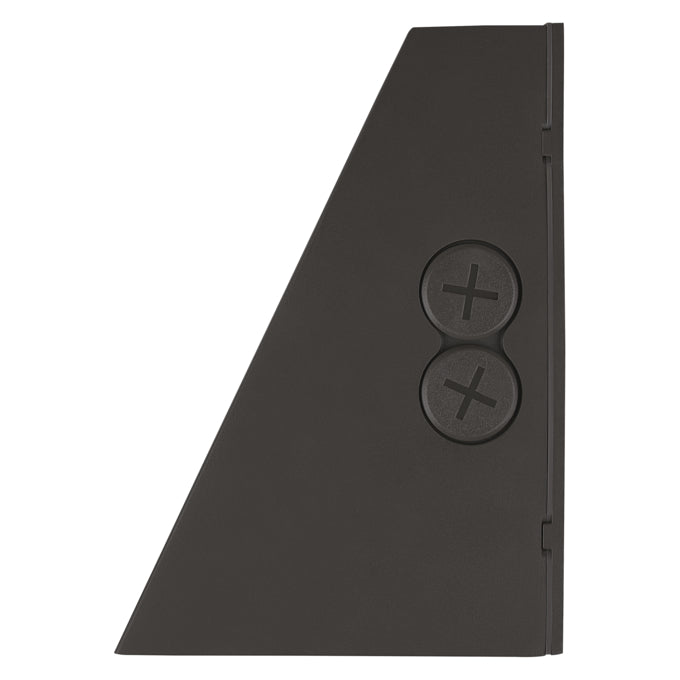

Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K Selectable Bronze
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K Selectable White
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K Selectable Black
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K Selectable Bronze
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K Selectable White
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K
Sylvania Lighting 40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K

40/50/60 Watt Opti-Select 120-347V Cutoff Wall Pack with Photocell 1800K/2200K/2700K

Sylvania Lighting SKU: 67134
  • Dark Sky Compliant, IP65, Wet Location Rated
/
Color Temp
Finish Color
  • Free Shipping on Orders Over $750 (contiguous US only)
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

The LEDVANCE Performance Class Wall Pack Cutoff OPTISELECT delivers unmatched precision with its full cutoff design, eliminating uplight to reduce glare and light pollution, while the revolutionary OPTI-SELECT technology lets you instantly switch between T2, T3, and T4 distributions via switch — no lens swap required. With CCT and wattage selectability, an integrated photocell, and plug-and-play controls compatibility, it's the ultimate solution for efficient, adaptive outdoor lighting.

This 40/50/60 Watt Opti-Select wall pack operates at 120–347V and includes an integrated photocell, available in 1800K/2200K/2700K color temperatures. It is offered under Sylvania Lighting Part #67134 (Black), #67130 (Bronze), and #67138 (White).

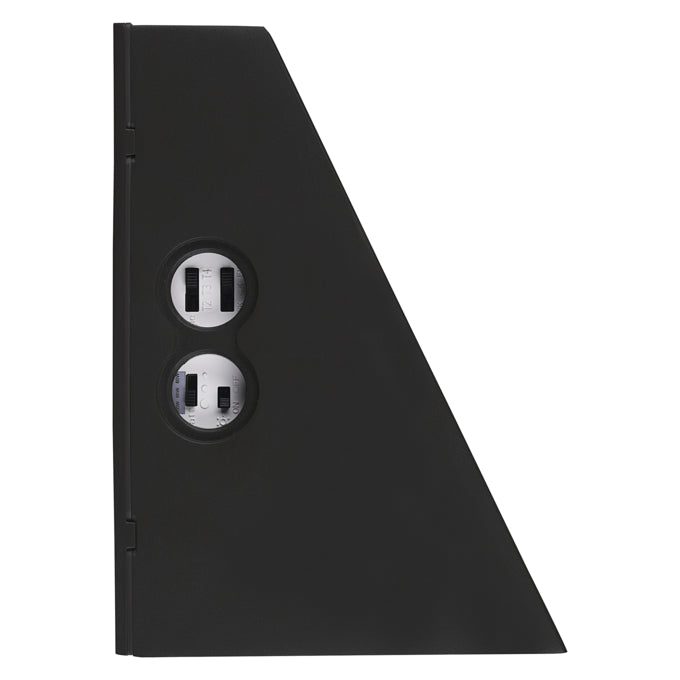

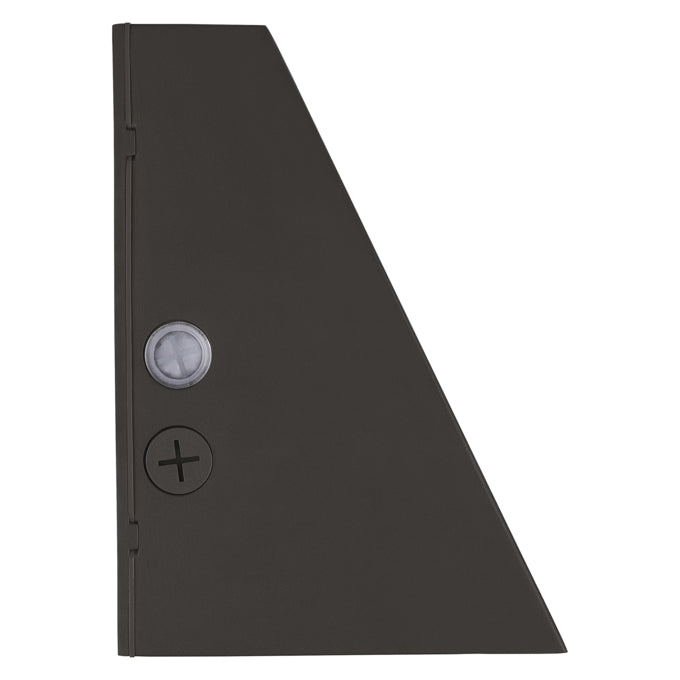

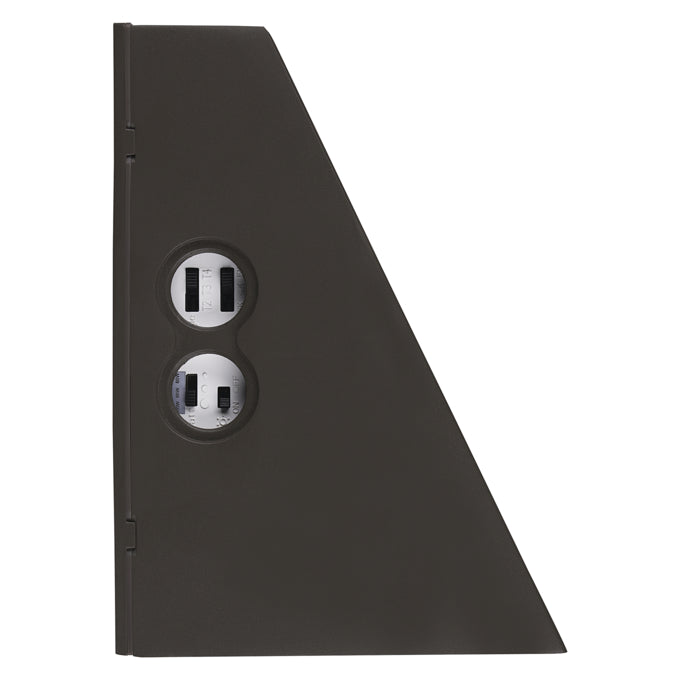

The OPTI-SELECT system provides adjustable Type II, III, and IV light distribution without requiring a lens swap, and offers selectable color temperatures of 3000/4000/5000K, Amber Turtle-Friendly or the exclusive 1800/2200/2700K range — the latter two being DarkSky Approved and are suitable for coastal areas to minimize impact on sea turtles. The fixture achieves a CRI greater than 80 ensuring high energy efficiency. The integrated photocell can be disabled in the field, and the unit is ready for field-installable standalone sensors with no wiring required. The UV-stabilized polycarbonate lens adds long-term durability.

Electrically, the fixture operates at 120–347Vac, is dimmable via 0–10V, and provides surge protection of 4kV (for the 40W configuration) and 6kV (for the 60/100W configurations). It delivers 4,600/5,750/6,900 lumens with an efficacy of up to 115 LPW, and is wall-mounted with a Bug Rating of B2-U0-G (T2/T3 lens) and B2-U0-G2 (T4 lens). The rated life is 100,000 hours (L70) at 25°C ambient, and the operating temperature range is -40°F to +122°F (-40°C to +50°C).

The fixture is certified RoHS, CSA, FCC, and cULus listed, and carries IP65 wet location rating, IK08 impact resistance, and DarkSky Approved designations. It is backed by a 5-year warranty.

Specifications
Manufacturer Sylvania Lighting
Finish Color Black Bronze White
MPN WALPAKCPS060UNHD8SC15ADJBLP WALPAKCPS060UNHD8SC15ADJBZP WALPAKCPS060UNHD8SC15ADJWHP
SKU 67134 67130 67138
UPC 046135671340 046135671302 046135671388
Lighting Technology LED
Wattage 40/50/60 Watts
Voltage 120-347V
Color Temperature (Kelvin) 1800K/2200K/2700K
Lumens 4,600/5,750/6,900 Lumens
Efficiency (Lumens Per Watt) 115 LPW
Dimmable Yes, 0-10V
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Housing Aluminum
Lens UV stabilized polycarbonate lens
Operating Temperature -40°F to +122°F (-40°C to +50°C)
Dimensions 13.35” L x 5.87” W x 8.27” H
BUG Rating B2-U0-G (T2/T3 lens) and B2-U0-G2 (T4 lens)
Environment Wet Location
Certifications CSA, FCC, RoHS, cULus, Dark Sky Compliant, IP65
Warranty 5 Years



Documents

Sylvania Lighting 40/50/60 Watt Opti-Select Cutoff Wall Pack Specification Sheet - Black

Sylvania Lighting 40/50/60 Watt Opti-Select Cutoff Wall Pack Specification Sheet - Bronze

Sylvania Lighting 40/50/60 Watt Opti-Select Cutoff Wall Pack Specification Sheet - White

Sylvania Lighting 40/50/60 Watt Opti-Select Cutoff Wall Pack Installation Instructions
